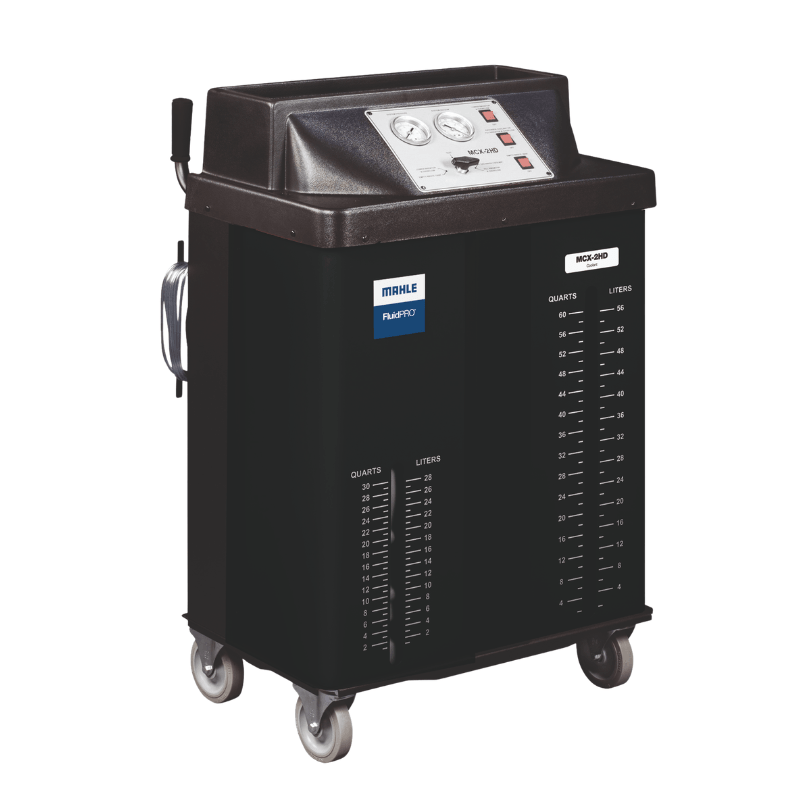

Mahle MCX-2HD Heavy Duty Multi-Coolant Exchange System

| SKU MCX-2HD-4708003200
$3,399.00

Delivery Options

Do you have a forklift (or similar) ready to unload upon delivery?

Notify me when back in stock

  • Made in the USA
  • Contact us now for our best price!
  • Ships in 3-7 Business Days
  • Family-Run Support - Right here in the USA. No Call Centers
HeavyLift Direct is Better Business Bureau Accredited
Authorized Mahle Distributor
Family Owned & Operated
 American-Based Support

More Details About the Mahle MCX-2HD Heavy Duty Multi-Coolant Exchange System

Description & Specifications

MCX-2HD Heavy Duty Multi-Coolant Exchange System

The MAHLE MCX-2HD Heavy-Duty Multi-Coolant Exchange System is designed for efficient coolant service on cars, trucks, and heavy-duty vehicles. It includes an HD Truck Adapter Set and larger 15-gallon coolant tanks, providing the capacity and connection options needed for demanding cooling system service applications.

The system features two 15-gallon new coolant tanks and one 15-gallon waste coolant tank, allowing technicians to switch between coolant types while keeping used coolant separate. It provides a 92–98% single-pass coolant exchange for most vehicles and can complete a typical full exchange in less than 3 minutes. Automatic pump shut-off, fluid level monitoring, and easy-to-read pressure and vacuum gauges help simplify the service process.

The MCX-2HD operates from a 12VDC power source and uses quick-connect/disconnect hoses with sealed fittings to help reduce spills. Universal step adapters, hose adapters, and heavy-duty truck adapters expand its compatibility for different cooling system configurations, making it a practical choice for professional automotive and heavy-duty service facilities.

Exchange System MCX-2HD Specifications:

  • Brand: MAHLE
  • Model: MCX-2HD
  • Part Number: 470 80032 00
  • Product Type: Heavy-Duty Multi-Coolant Exchange System
  • Coolant Compatibility: All Coolant Types
  • New Coolant Tanks: 2 × 15 gal
  • Waste Coolant Tank: 15 gal
  • Coolant Exchange: 92–98% single pass, average for most vehicles
  • Process Time: Less than 3 minutes average full exchange
  • Pump Flow Rate: 2 gal/min
  • Fill Pump: Diaphragm Type
  • Drain Pump: Impeller Type
  • Hose Size: 3/8"
  • Hose Connections: Quick Connect/Disconnect
  • Step Adapters: 2 Universal Sets, 1-1/4"–1-3/4" diameter range
  • Hose Adapters: 2 Universal Hoses, 1-1/4"–1-3/8" and 1-1/2"–1-3/4" diameter ranges
  • Pressure Switch: 6–12 psi
  • Operating Temperature: 32°–122°F
  • Power Source: 12VDC, 15A
  • Dimensions (H × W × D): 45" × 38" × 22.5"
  • Weight: 170 lbs

MCX-2HD Heavy Duty Multi-Coolant Exchange System Special Features

  • Heavy-duty coolant exchange system
  • Includes HD Truck Adapter Set
  • Two 15-gallon new coolant tanks
  • One 15-gallon waste coolant tank
  • Compatible with all coolant types
  • Allows rapid switching between different coolant types
  • 92–98% single-pass coolant exchange for most vehicles
  • Less than 3 minutes average full exchange time
  • Automatic pump shut-off for convenient operation
  • Automatic empty fluid level sensor
  • Visible fluid level indicators
  • Easy-to-read pressure and vacuum gauges
  • Drip-proof tank connectors
  • Quick-connect/disconnect hose fittings
  • Universal step adapters and hose adapters
  • Integrated input/output tube
  • 12VDC operation
  • 6–12 psi pressure switch helps protect cooling systems from excessive pressure
  • Fill pump uses diaphragm technology
  • Drain pump uses impeller technology
  • Designed for automotive and heavy-duty cooling system service
  • Warranty: 1 Year — Parts & Labor

Recommended Accessories

  • 370 80252 00: MCX Fill Tank, 7 gal, with fitting, tube, filter, and check valve
  • 370 80123 00: MCX Heavy-Duty Adapter Kit
  • 370 80204 00: MCX Waste Tank, 15 gal, with fitting, float switch, and automatic shut-off
  • 370 80019 00: Standard MCX Kit with hoses, adapters, hose clamps, and wand
  • 370 80033 00: MCX Flush Hose Assembly

Mahle MCX-2 Manual

Mahle MCX-2HD Operations Manual   Mahle MCX-2HD Operations Manual

Mahle MCX-2HD Brochure   Mahle MCX-2HD Brochure
