The MES MES17X16BLHD Ultra Tall Spray-On Bedliner Booth is engineered for professionals who need a safe, mobile, and fully compliant workspace for painting, coating, and bedliner applications. Built to meet NFPA CH 33 14.4 construction standards, this inflatable workstation provides exceptional airflow, safety, and filtration efficiency, ensuring every project meets industry requirements.
Its advanced filtration system exceeds the EPA 6H Rule with 98% capture efficiency, while the optimized ventilation design surpasses OSHA’s 1910.107 air movement requirement of 100 linear feet per minute. This ensures effective fume removal and a cleaner working environment, even during high-output coating applications.
Designed for portability and reliability, this 17×16×10 booth delivers up to 44.7 air exchanges per hour for consistent performance. With durable materials, a spacious interior, multiple access points, and certified ETL/CE-approved air movers, it provides a complete mobile finishing solution that supports automotive, industrial, and bedliner professionals.
Exterior Length: 17'
Exterior Width: 16'
Exterior Height (Center): 10'
Total Footprint: 272 sq ft (unchanged — area, not length)
Interior Length: 186 in
Interior Width: 156 in
Interior Side Height: 76.8 in
Interior Center Height: 102 in
Interior Door Clearance Height: 102 in
Inflatable Weight: 330 lbs
Built to NFPA CH 33 14.4 construction & design requirements
Exhaust filters with 98% capture efficiency (EPA 6H compliant)
Ventilation airflow exceeds OSHA 1910.107 standard
Engineered for a lower flammable limit under 10% with clean filters
Provides 44.7 air exchanges per hour for cleaner workspace
Includes 2 ETL & CE certified 1.5HP air movers (115V & 230V)
Features multiple support D-rings, tie-down straps & sandbags
Comes with replaceable floor, doors, curtain set & filters
Includes 2 emergency exits for added safety
Made in the USA with a 1-year manufacturer warranty
Air movers include an extended 2-year warranty upon registration
Warranty
Booth: 1-year limited manufacturer warranty
2 Replaceable Exhaust Filters (EPA 6H-compliant)
4 Replaceable Inlet Filters

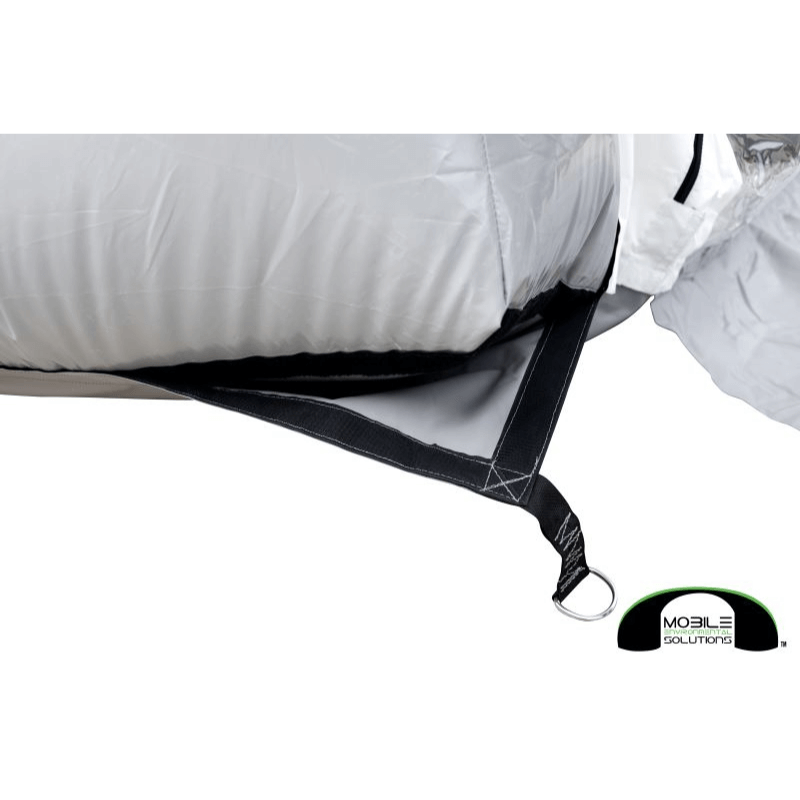

4 Lower Anchoring Support D-Rings

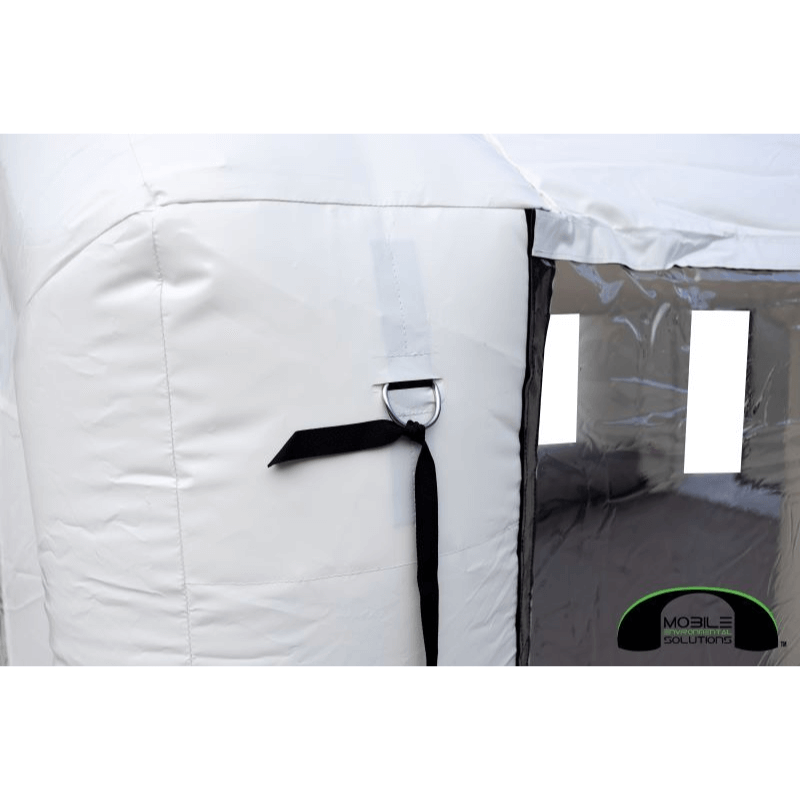

6 Upper Support D-Rings
3 Roof Support D-Rings
6 Tie-Down Straps
6 Sandbags
1 Replaceable Floor

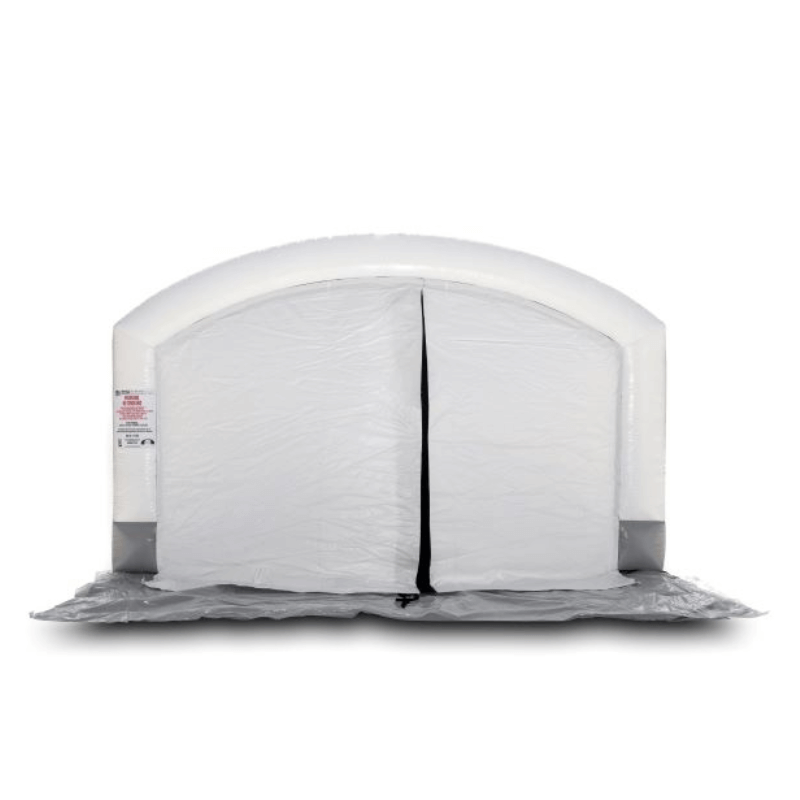

1 Replaceable Front Door

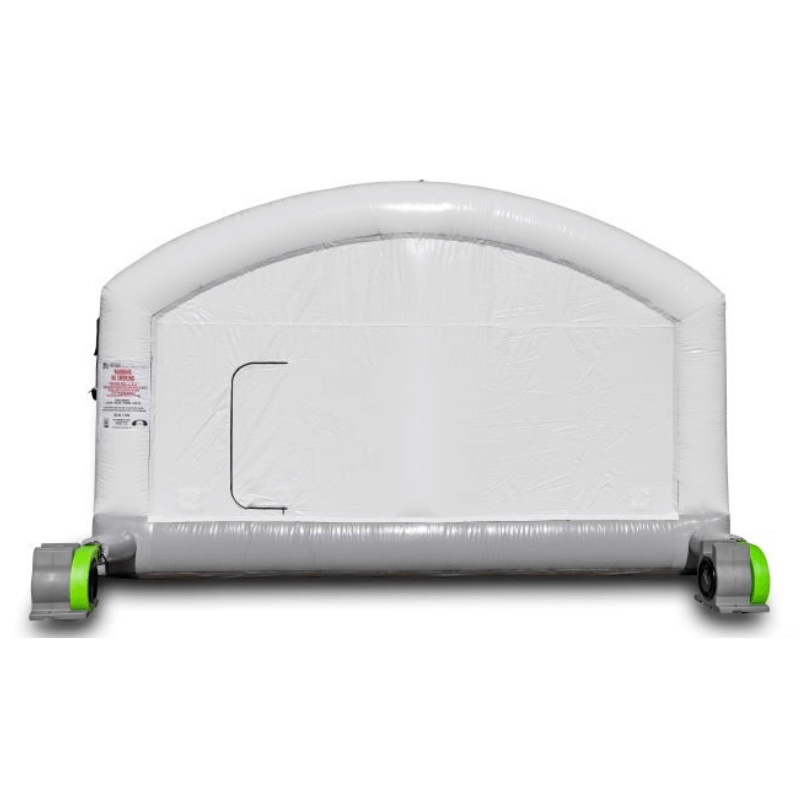

1 Replaceable Back Door
1 Replaceable Curtain Set
2 Emergency Exits
1 Storage Bag
1 Repair Kit
2 Certified ETL & CE Approved 1.5 HP Air Movers (115V 60Hz & 230V 60Hz)
2 Air Hose Access Slots
1 Operational Manual
MES MES17X16BLHD Spec Sheet
