MES MES18X15X10HDLT Inflatable Paint Booth (18.5T x 15W x 10H)

MES18X15X10HDLT Auto Paint Booth

The MES 18×15×10 HDLT Portable Auto Paint Booth gives painters a large, clean, and controlled workspace that can be set up almost anywhere. Designed for automotive paint work, motorcycle projects, equipment refinishing, and large furniture pieces, this booth provides a professional spray environment without the cost or limitations of a permanent installation.

This booth is engineered to meet NFPA, EPA, and OSHA standards, ensuring safe airflow, proper filtration, and reduced overspray. Its ventilation system achieves 90.9 air exchanges per hour, helping remove fumes quickly while keeping visibility clear inside the booth. With high-efficiency exhaust and inlet filters, users get a cleaner work environment and improved paint quality.

Despite its large size, the booth inflates quickly, packs down for transport, and includes strong anchoring points for reliable indoor or outdoor use. With replaceable components, multiple air movers, emergency exits, and strong visibility panels, the MES 18×15×10 HDLT is built for professional painters who need performance, durability, and mobility in one package.

Paint Booth MES18X15X10HDLT Specification

• Exterior Length: 18.5 ft

• Exterior Width: 15 ft

• Exterior Height (Center): 10 ft

• Total Footprint: 277.5 sq ft

• Interior Length: 17 ft

• Interior Width: 12 ft

• Interior Side Height: 6.5 ft

• Interior Center Height: 8.5 ft

• Interior Door Clearance Height: 6.9 ft

• Estimated Air Exchanges: 90.9 per hour

• Inflatable Weight: 220 lbs

MES18X15X10HDLT Mobile Paint Booth Special Features

• Meets NFPA CH 33 14.4 construction standards

• Exceeds EPA 6H rule with 98% filter capture efficiency

• Ventilation exceeds OSHA’s 100 ft/min airflow requirement

• Designed to stay below 10% lower flammable limit with clean filters

• Heavy-duty vinyl panels with excellent visibility

• Strong anchoring for stable indoor or outdoor use

• Fully inflatable and portable for mobile or shop use

• Made in the USA

Warranty

• Booth: 1-year limited manufacturer warranty

What’s Included

• 2 replaceable exhaust filters (98% EPA efficiency)

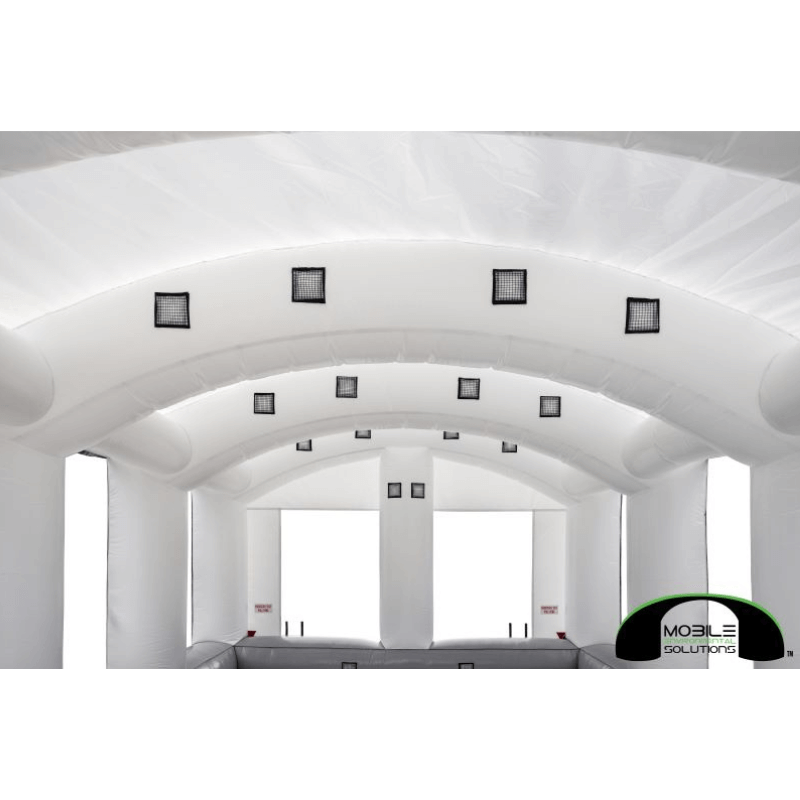

• 16 replaceable inlet filters

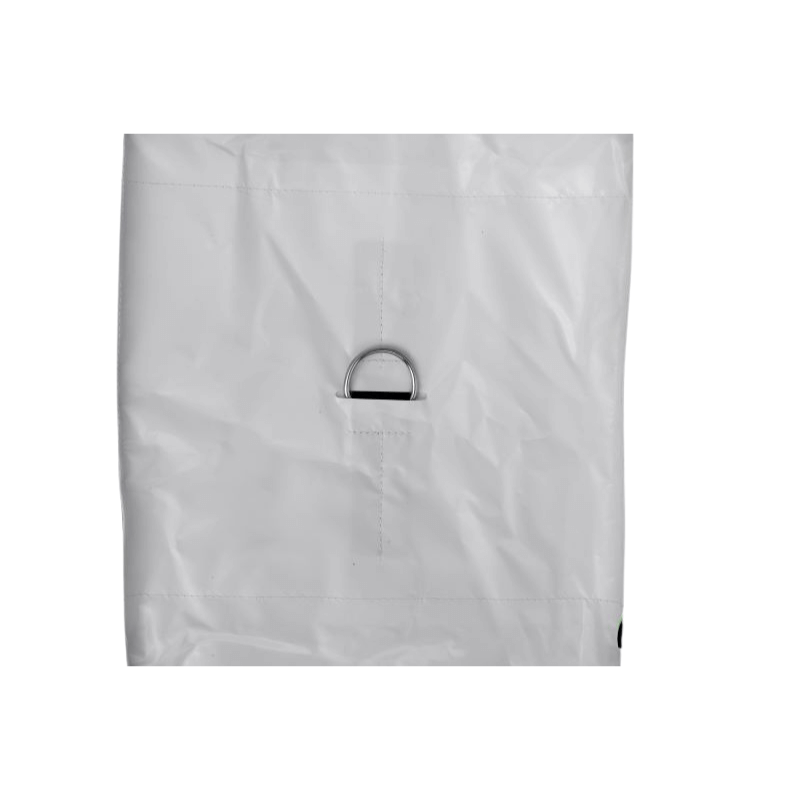

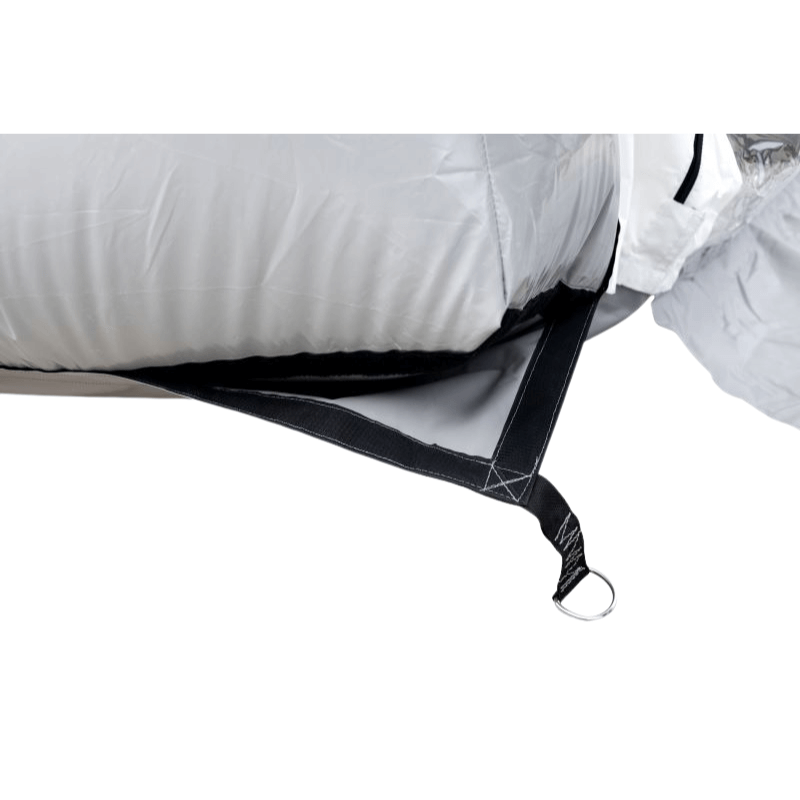

• 4 lower anchoring D-rings

• 8 upper support D-rings

• 4 roof support D-rings

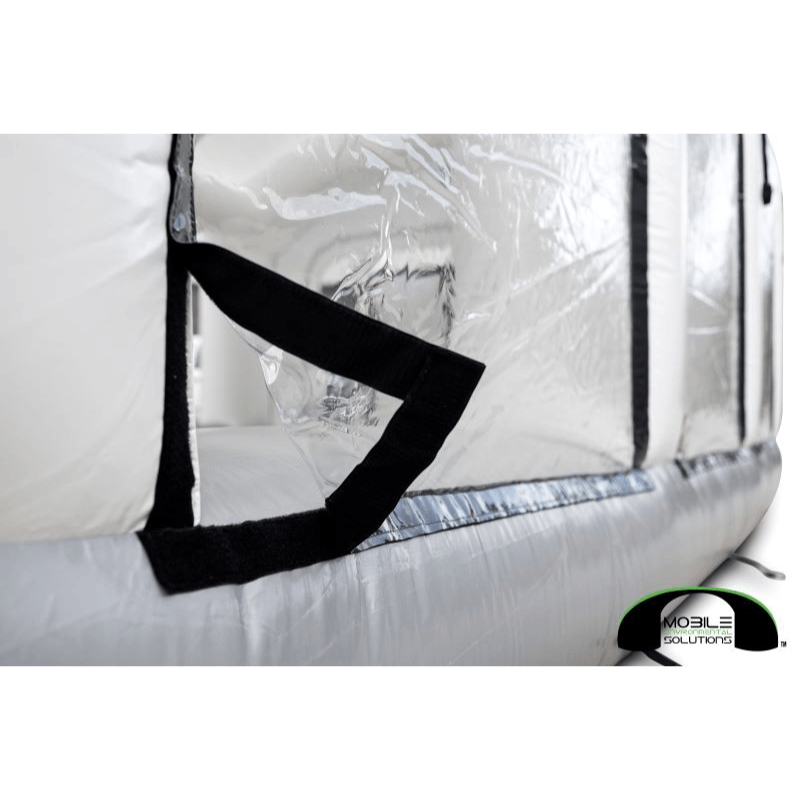

• 6 replaceable side windows

• 8 tie-down straps

• 8 sandbags

• 1 replaceable floor

• 1 replaceable front door

• 1 replaceable back door

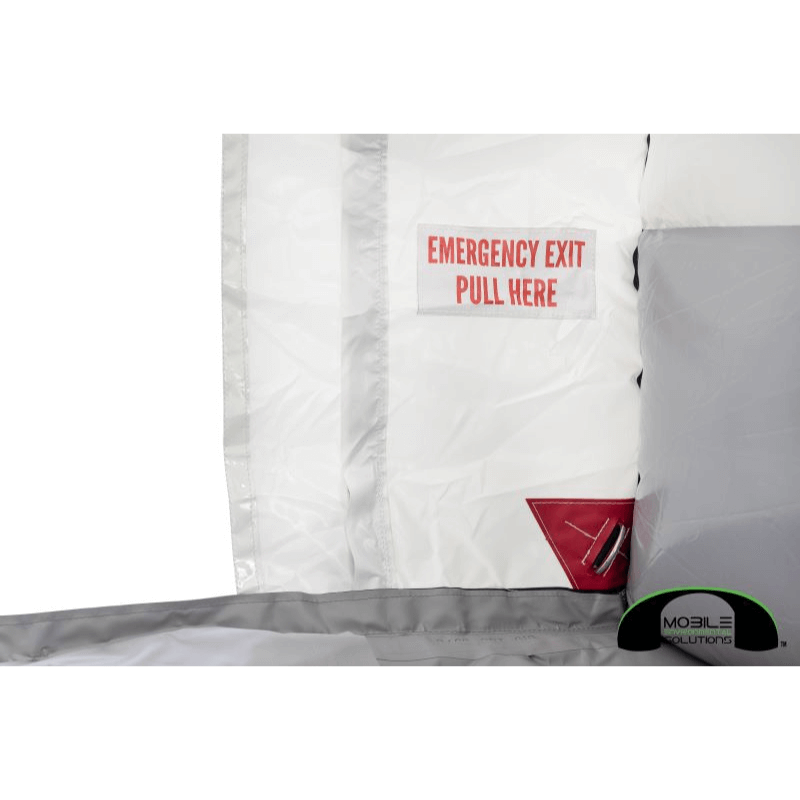

• 4 emergency exits

• 1 storage bag

• 1 repair kit

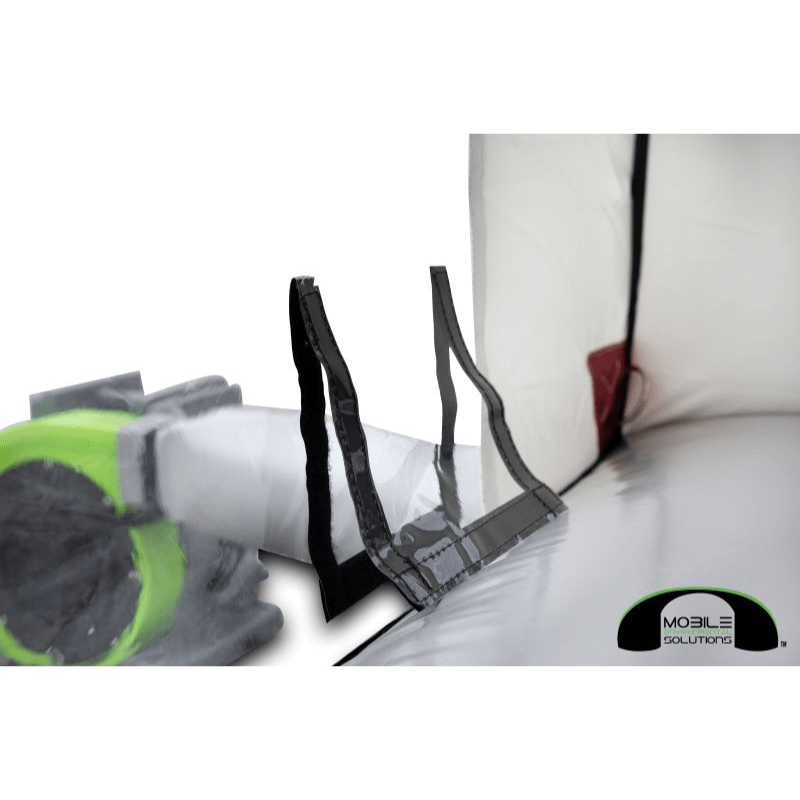

• 2 ETL & CE certified air movers (1.5 HP, 115V/230V, 60Hz)

• 2 air hose access slots

• 1 operational manual

MES MES18X15X10HDLT Manual

  MES MES18X15X10HDLT Spec Sheet
