The MES 23×15×10 DTB Portable Car Spray Paint Booth is designed for professionals who need a full-size mobile painting environment that can be set up almost anywhere. Whether you're painting cars, trucks, body panels, equipment, or large fabrication projects, this workstation provides a clean, controlled space without requiring a permanent booth or expensive construction.
Built to meet strict NFPA, EPA, and OSHA regulations, this inflatable booth delivers proper ventilation, overspray control, and reliable airflow that exceeds 100 linear feet per minute. Its filtration system captures 98% of overspray, helping improve paint quality while maintaining a safer working atmosphere. With 71.1 air exchanges per hour, fumes and particles are continuously removed, keeping visibility and air quality clear.
Despite its large working area, the unit inflates quickly, packs down for transport, and includes multiple anchoring points for secure setup indoors or outdoors. Replaceable filters, windows, doors, and floor panels extend its lifespan, while the included ETL- and CE-certified air movers ensure strong and consistent airflow. Made in the USA, the MES 23×15×10 DTB is built for painters who want durability, mobility, and professional results.
Exterior Length: 24.16 ft
Exterior Width: 15 ft
Exterior Height (Center): 10 ft
Total Footprint: 362.4 sq ft
Interior Length: 24.16 ft
Interior Width: 12 ft
Interior Side Height: 6.5 ft
Interior Center Height: 8.5 ft
Interior Door Clearance Height: 6.9 ft
Estimated Air Exchanges: 71.1 per hour
Inflatable Weight: 290 lbs
Meets NFPA CH 33 14.4 construction and design standards
Exceeds EPA 6H rule with 98% filter capture efficiency
Ventilation surpasses OSHA 1910.107 airflow requirements
Designed to stay below 10% lower flammable limit with clean filters
Large, bright, high-visibility workspace
Heavy-duty anchoring for indoor and outdoor stability
Fully inflatable and portable—stores easily when deflated
Made in the USA
Warranty
Booth: 1-year limited manufacturer warranty
2 high-efficiency exhaust filters (98% EPA 6H rule)
16 replaceable inlet filters

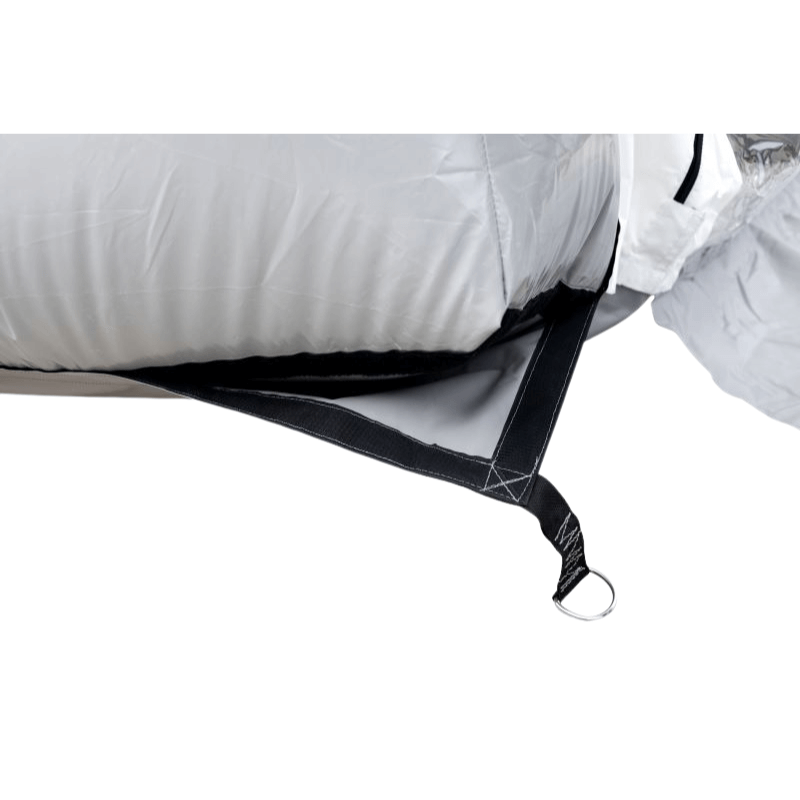

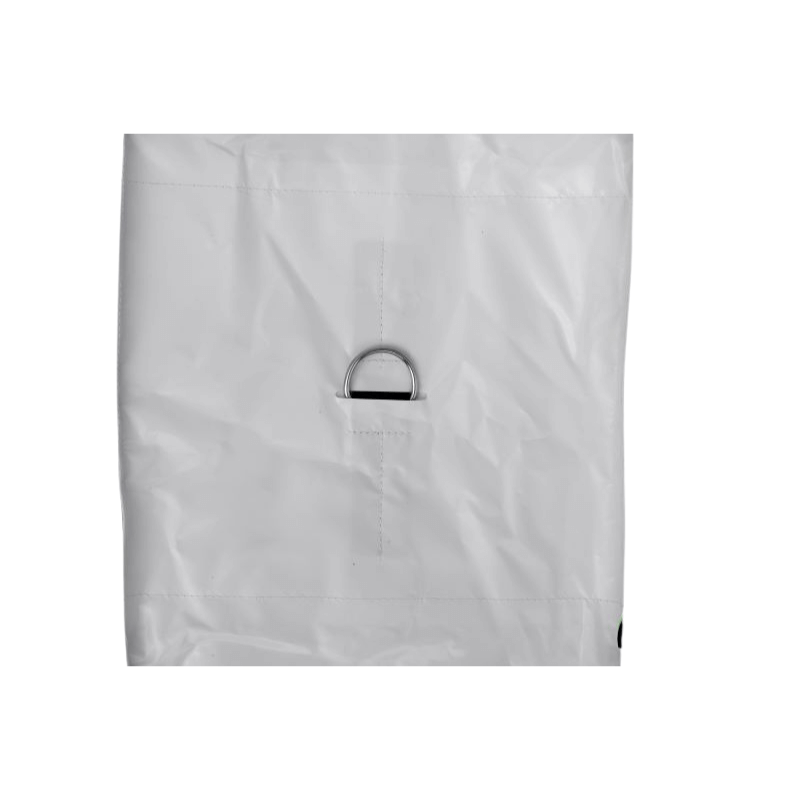

6 lower anchoring D-rings
6 upper support D-rings
3 roof support D-rings

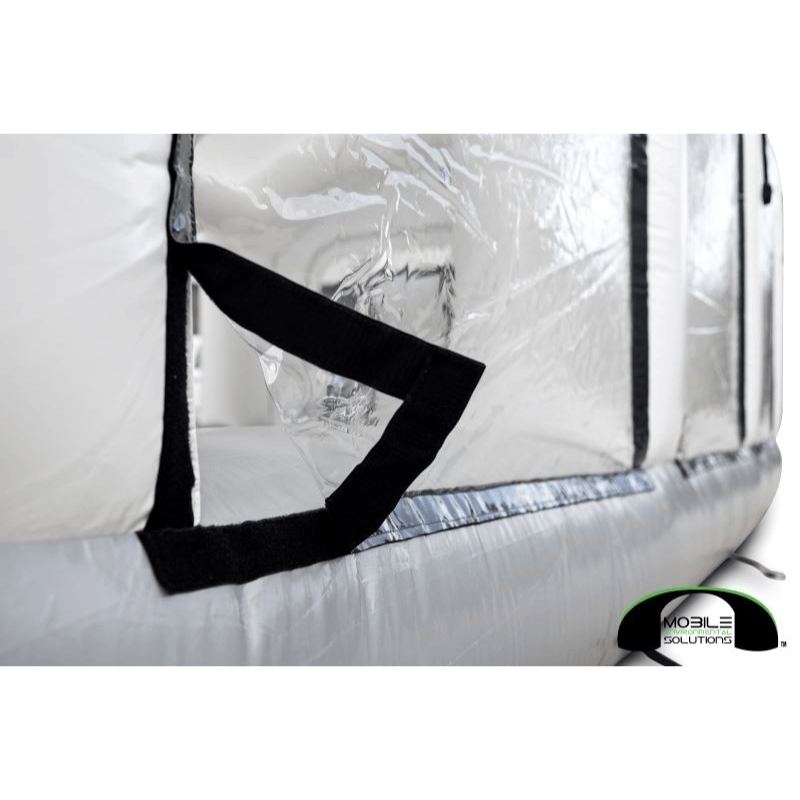

4 replaceable side windows
6 tie-down straps
6 sandbags
Replaceable floor

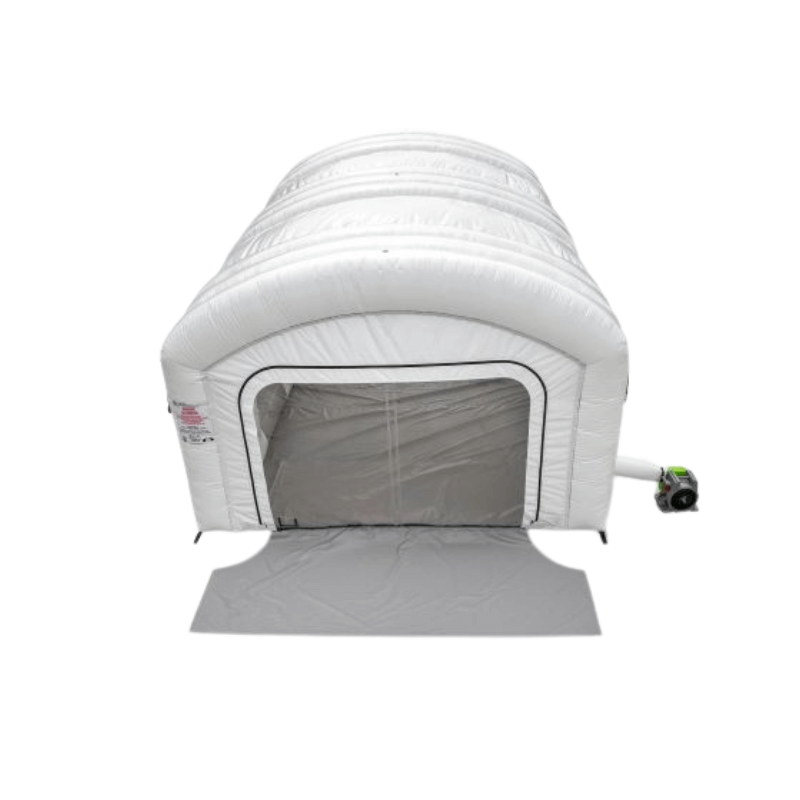

2 replaceable front doors

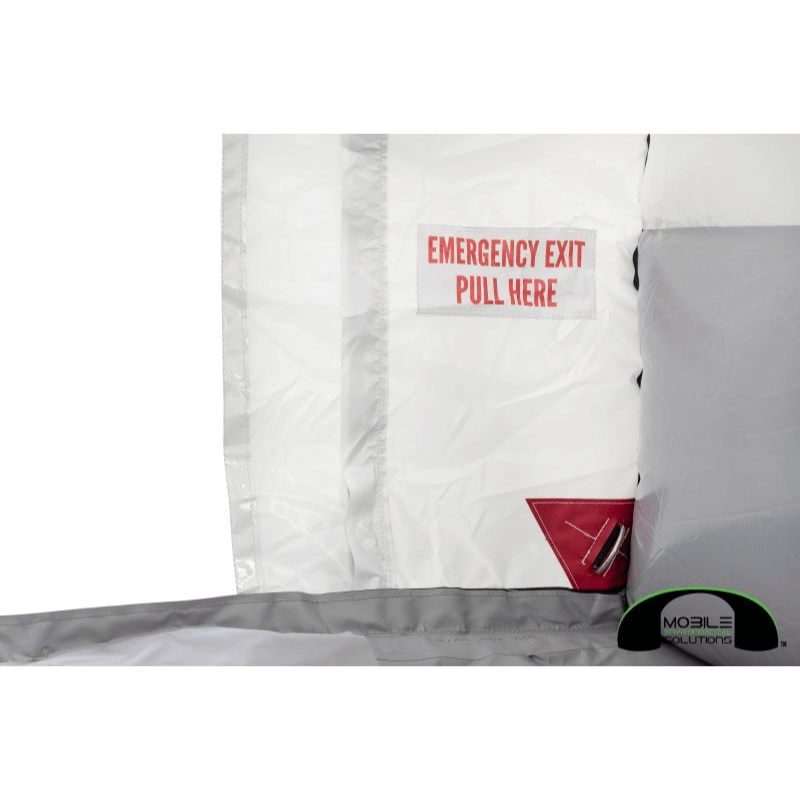

4 emergency exits
1 storage bag
1 repair kit
2 ETL & CE certified 1.5 HP air movers (115V & 230V, 60Hz)

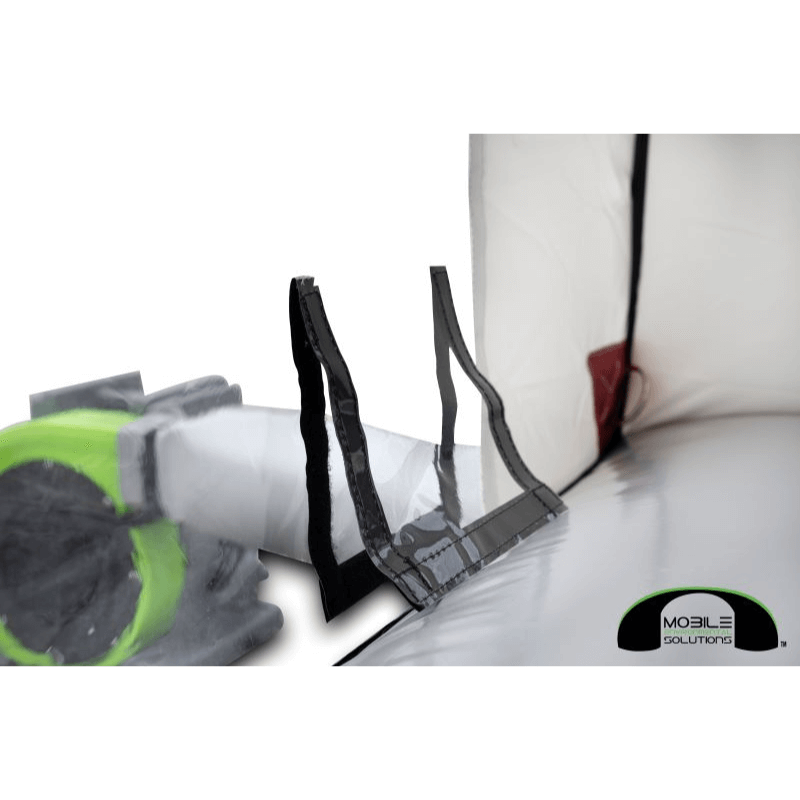

2 air hose access slots
1 operational manual
MES MES23X15X10DTB LT Spec Sheet
