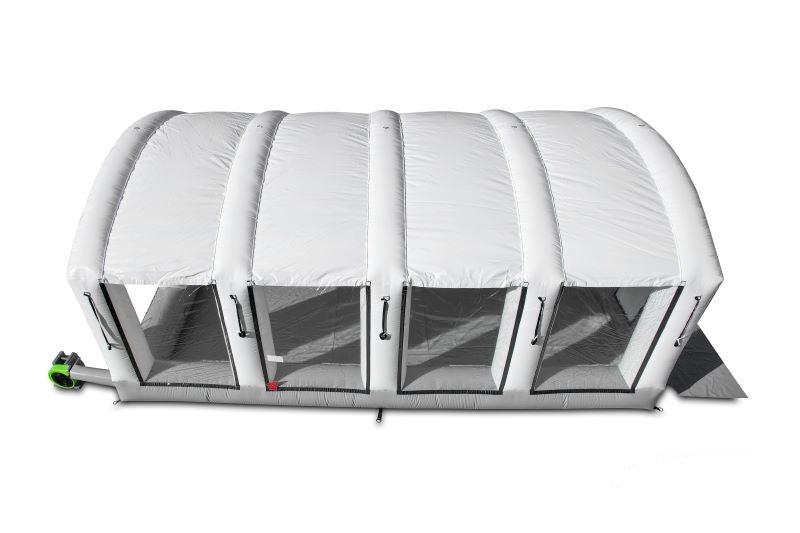

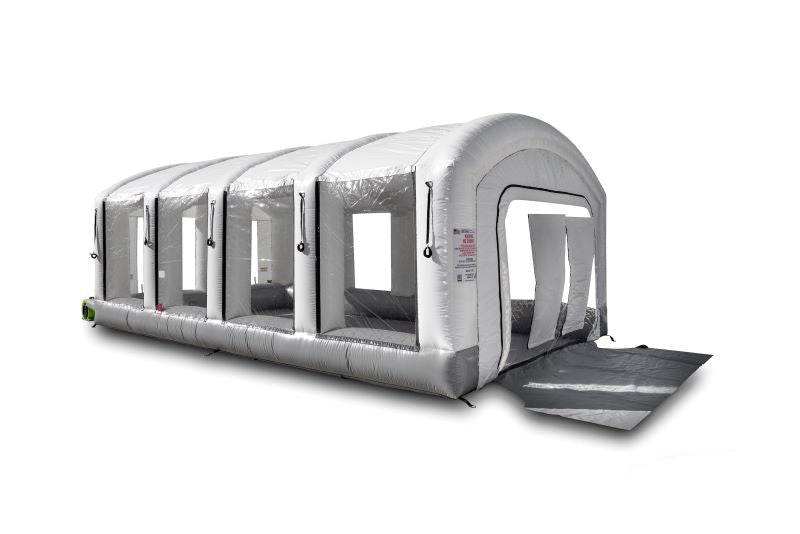

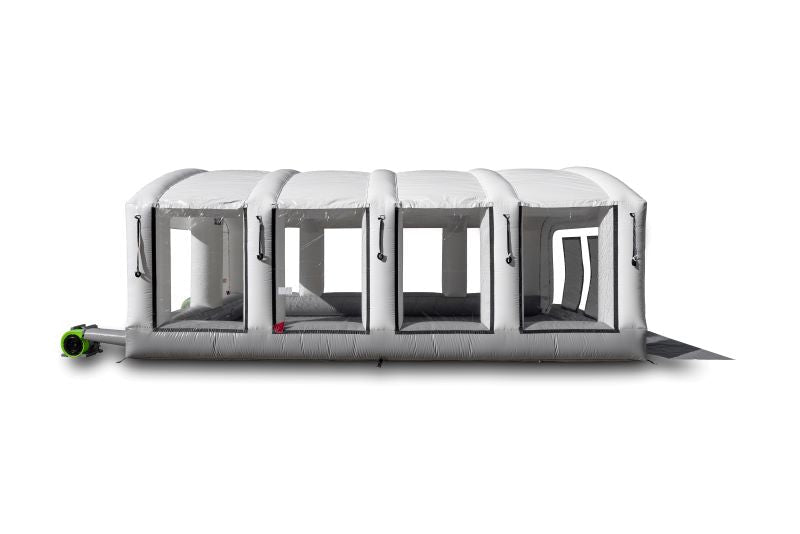

The MES 24×15×10 HDLT Portable Auto Spray Booth is the go-to solution for mobile painters, dealerships, rental lots, and custom shops. Its generous size accommodates cars, SUVs, and short-bed trucks while providing a clean, controlled workspace without taking up 400+ sq ft of permanent space. Perfect for indoor or outdoor use, this booth delivers professional results wherever you need it.
Built to meet NFPA, EPA, and OSHA standards, the booth provides safe and efficient airflow with an estimated 68.2 air exchanges per hour. Exhaust filters capture 98% of overspray, ensuring a cleaner work environment and better paint quality. Its ventilation exceeds OSHA’s requirements, keeping the workspace safe and comfortable during painting.
Despite its large footprint, the booth inflates quickly and packs down for easy transport. Strong anchoring points, replaceable doors, floors, and filters make it highly durable. Certified ETL and CE air movers provide consistent airflow, while multiple emergency exits and high-visibility panels make this booth safe and convenient for professional use.
Exterior Length: 24.16 ft
Exterior Width: 15 ft
Exterior Height (Center): 10 ft
Total Footprint: 362.4 sq ft

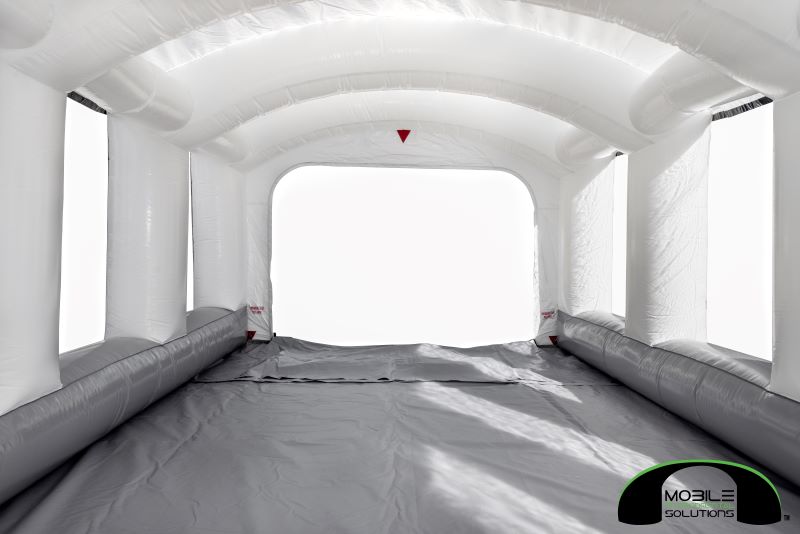

Interior Length: 22.66 ft
Interior Width: 12 ft
Interior Side Height: 6.6 ft
Interior Center Height: 8.5 ft
Interior Door Clearance Height: 6.9 ft
Estimated Air Exchanges: 68.2 per hour
Inflatable Weight: 290 lbs
Meets NFPA CH 33 14.4 construction standards
Exceeds EPA 6H rule with 98% filter capture efficiency
Ventilation surpasses OSHA 1910.107 airflow requirements
Designed to remain below 10% lower flammable limit with clean filters
Heavy-duty vinyl panels with full visibility
Strong anchoring for indoor and outdoor stability
Fully inflatable and portable
Made in the USA
Warranty
Booth: 1-year limited manufacturer warranty
2 replaceable exhaust filters (98% EPA 6H rule)
16 replaceable inlet filters

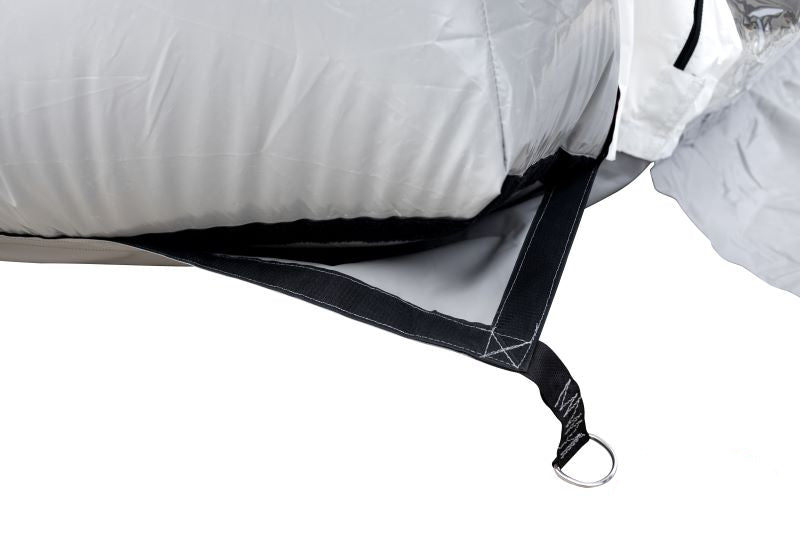

4 lower anchoring D-rings

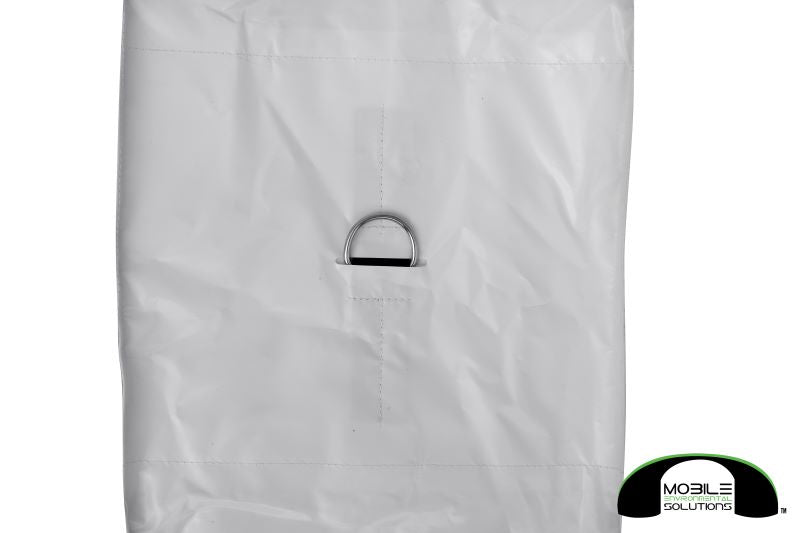

10 upper support D-rings
5 roof support D-rings

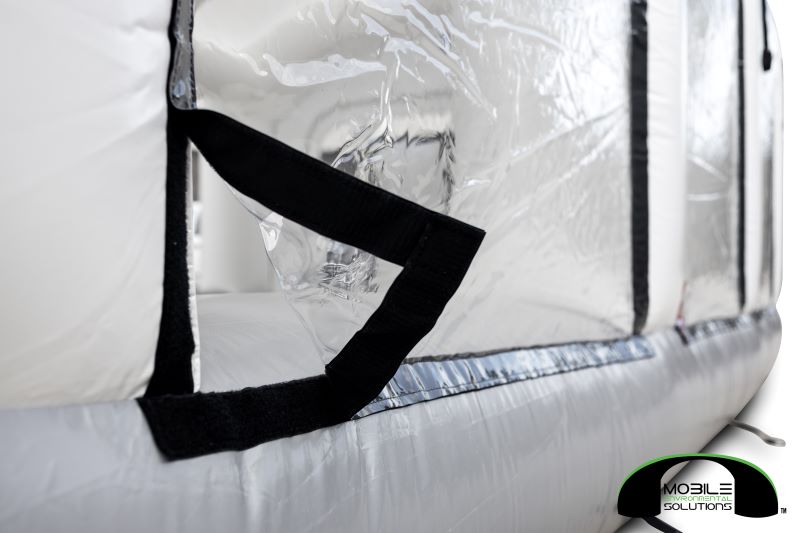

8 replaceable side windows
10 tie-down straps
10 sandbags
1 replaceable floor

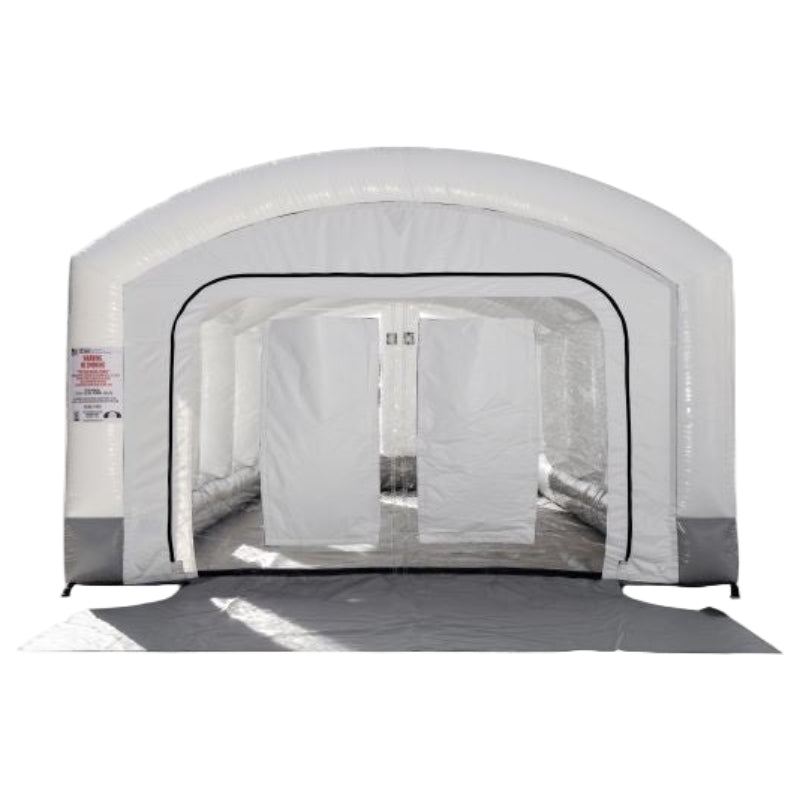

1 replaceable front door
1 replaceable back door

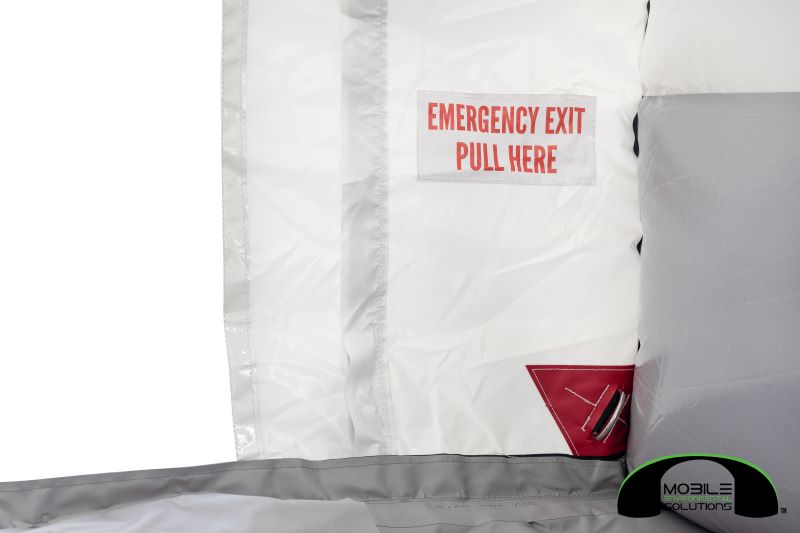

4 emergency exits
1 storage bag
1 repair kit
2 ETL & CE certified 1.5 HP air movers (115V/230V, 60Hz)

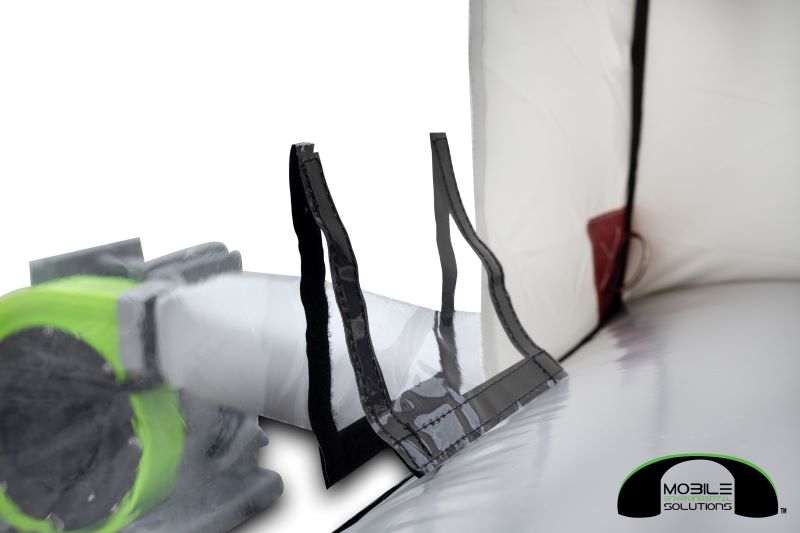

2 air hose access slots
1 operational manual
MES MES24X15X10HDLT Spec Sheet
