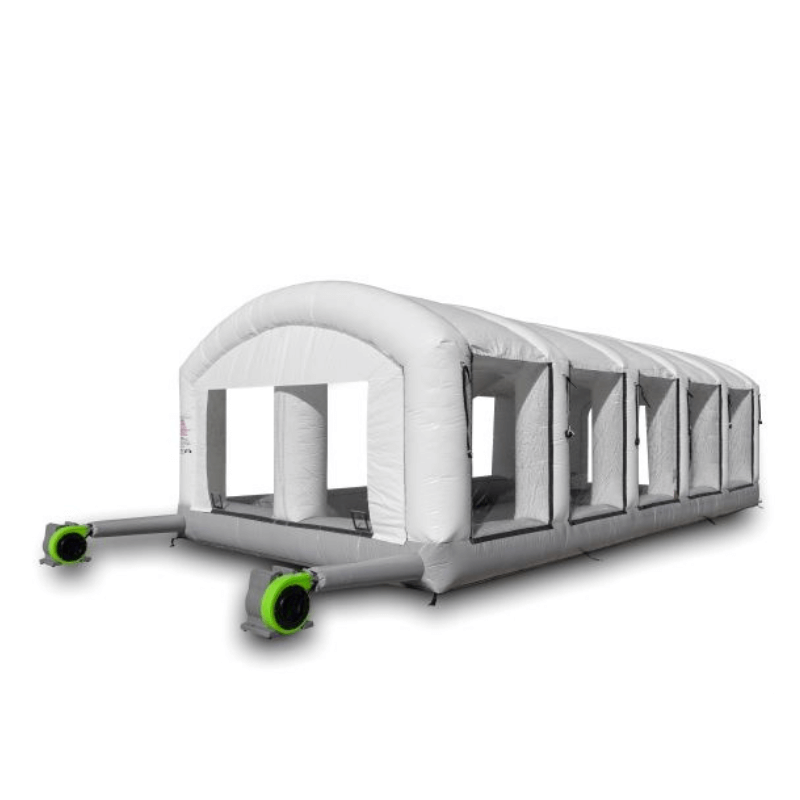

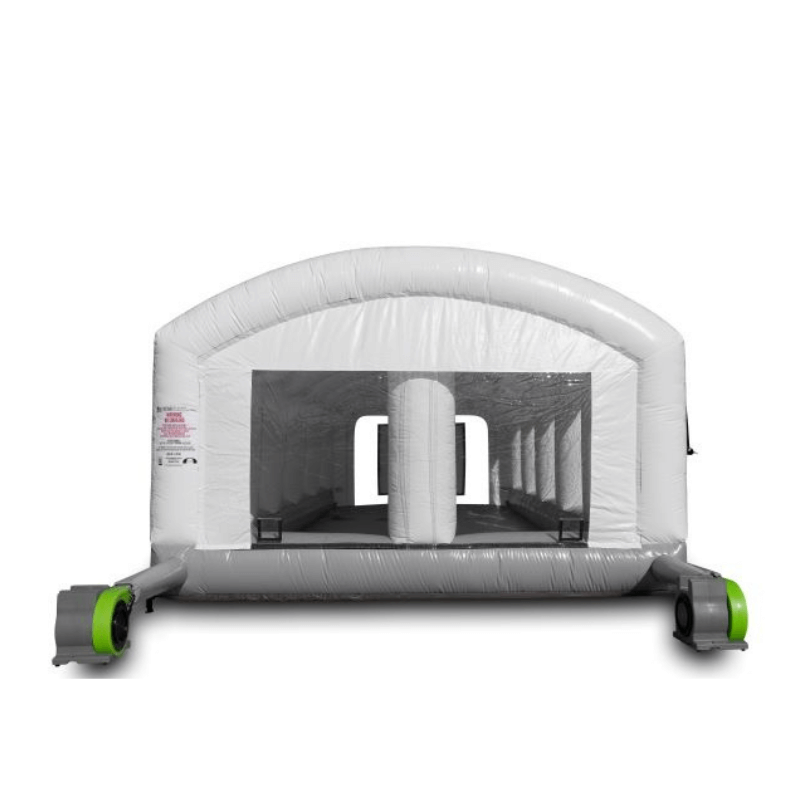

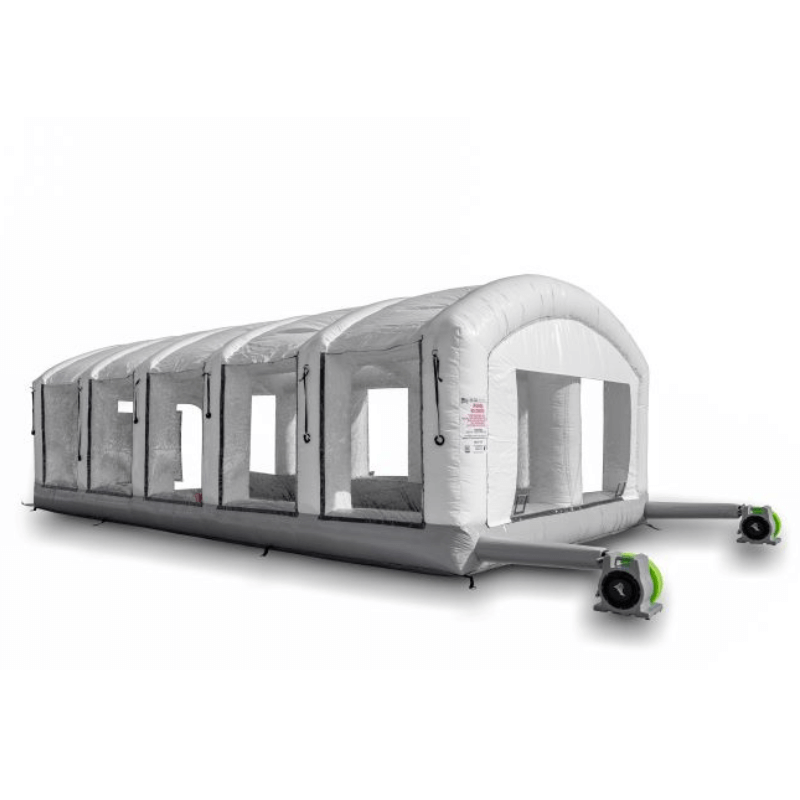

The MES 30×15×10 HDLT Mobile Paint Booth is ideal for large vehicles like long-bed trucks, Suburbans, and SUVs, making it perfect for body shops, mobile painters, PDR hail teams, ceramic coating, detailing, and custom auto services. Its generous size ensures a safe, controlled, and clean workspace for painting almost anything, all without the permanent footprint of a traditional booth.
This portable booth is engineered to meet NFPA, EPA, and OSHA standards. Exhaust filters capture 98% of overspray, while the ventilation system exceeds OSHA’s airflow requirements, providing a safer work environment. The booth’s design also maintains a flammable limit of less than 10% with clean filters, ensuring a safe painting environment.
Despite its large size, the booth is portable and quick to set up. Anchoring points, replaceable doors, floors, and filters add durability and convenience. Certified ETL and CE air movers provide consistent airflow, and multiple emergency exits and clear visibility panels make it both practical and safe for professional painters.
Exterior Length: 29.83 ft
Exterior Width: 15 ft
Exterior Height (Center): 10 ft
Total Footprint: 447.45 sq ft

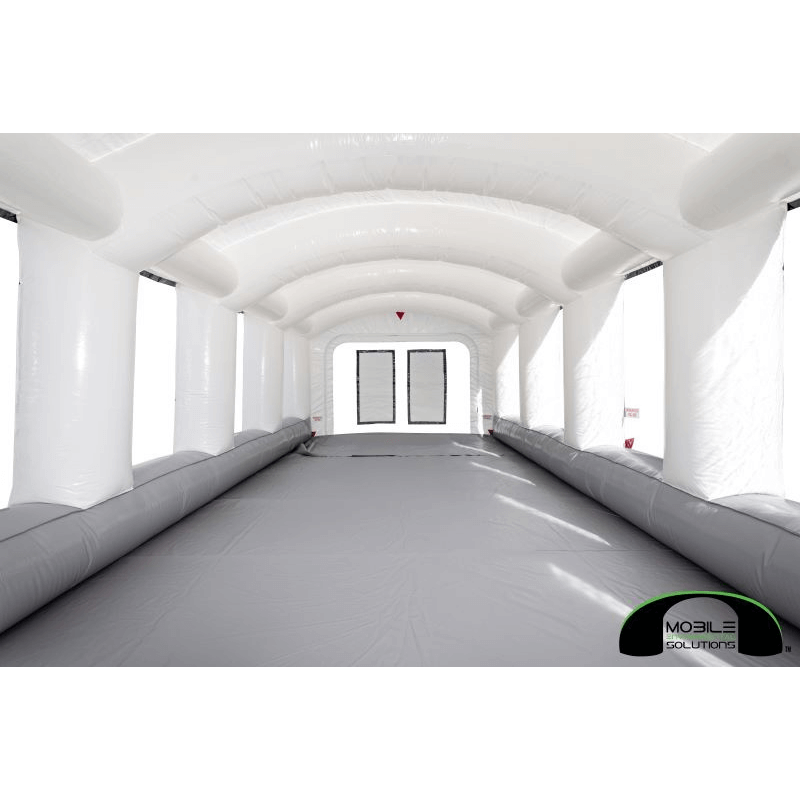

Interior Length: 22.66 ft
Interior Width: 12 ft
Interior Side Height: 6.5 ft
Interior Center Height: 8.5 ft
Interior Door Clearance Height: 6.9 ft
Estimated Air Exchanges: 54.5 per hour
Inflatable Weight: 349 lbs
Compliant with NFPA CH 33 14.4, EPA 6H, and OSHA 1910.107 standards
Exhaust filters capture 98% of overspray
Ventilation airflow keeps workspace safe and comfortable
Maintains flammable limit below 10% with clean filters
Heavy-duty, durable vinyl construction
Inflatable and portable for on-site work
Multiple emergency exits and high-visibility panels
Made in the USA
Warranty
Booth: 1-year limited manufacturer warranty
2 replaceable exhaust filters (98% EPA 6H rule)

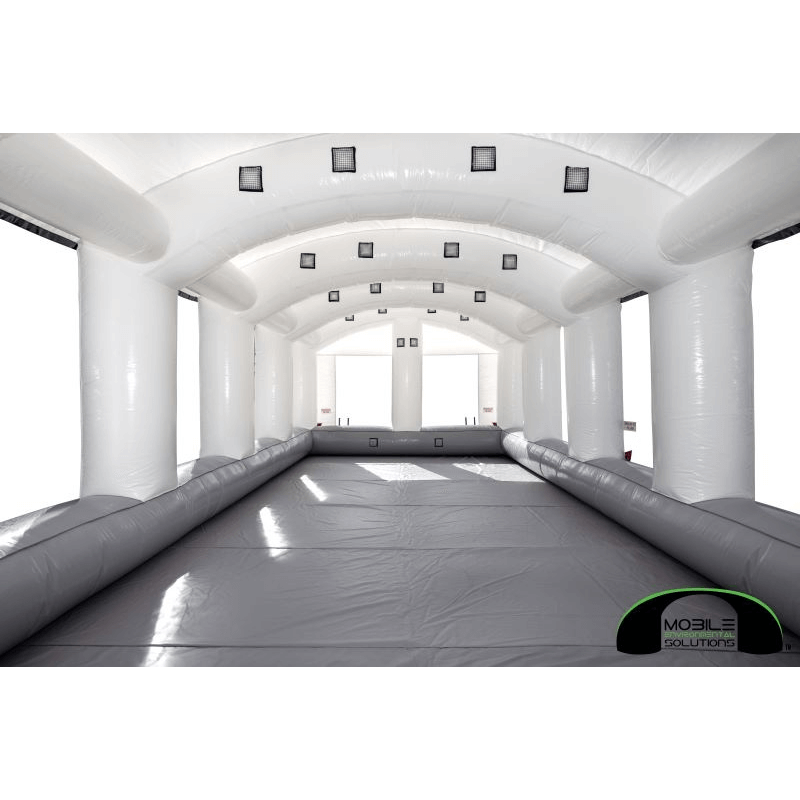

20 replaceable inlet filters

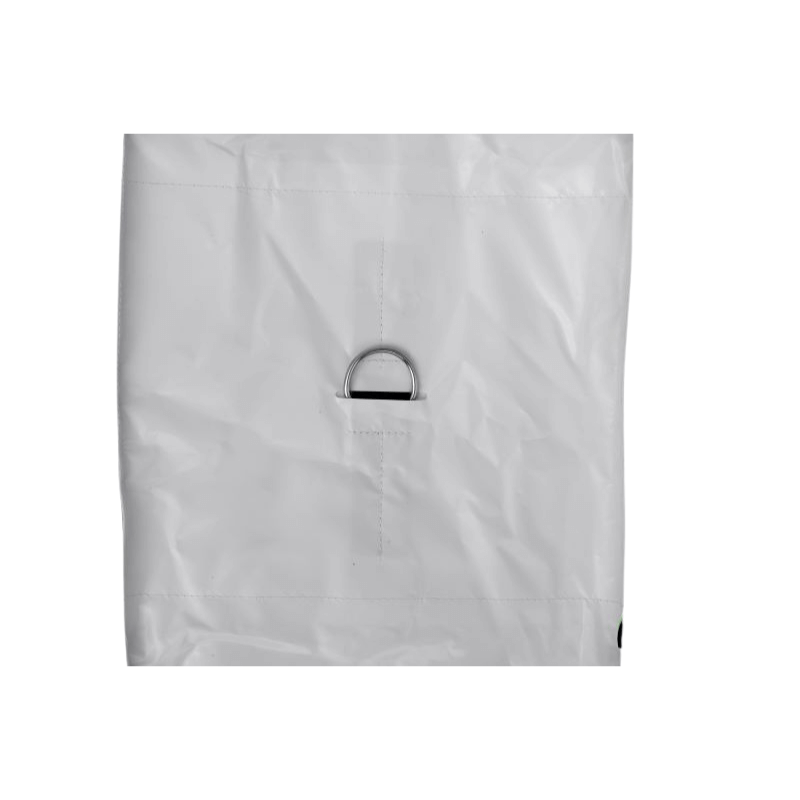

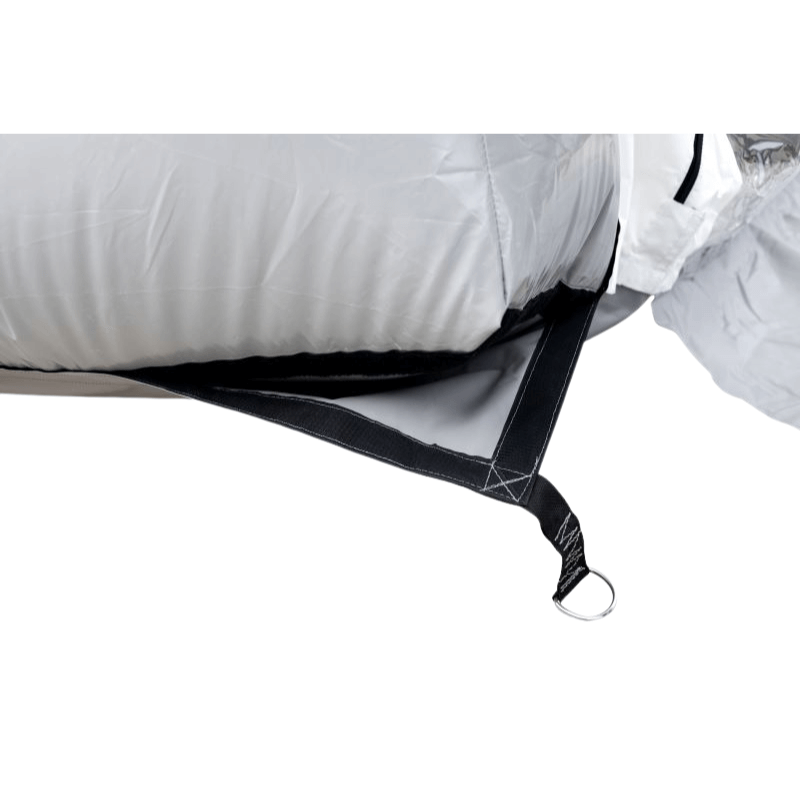

6 lower anchoring D-rings
12 upper support D-rings
6 roof support D-rings

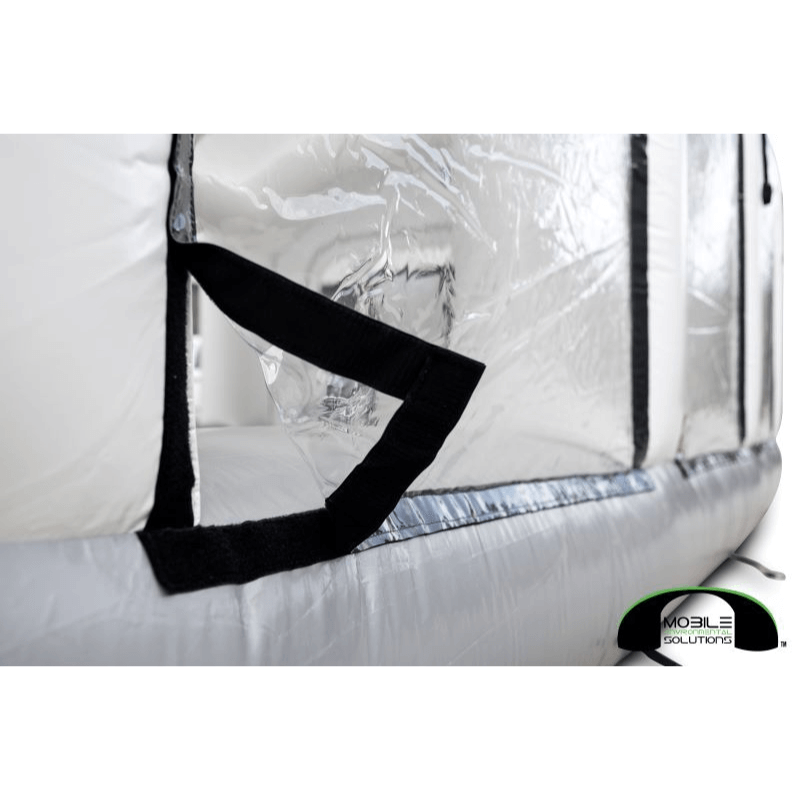

10 replaceable side windows
12 tie-down straps
12 sandbags
1 replaceable floor

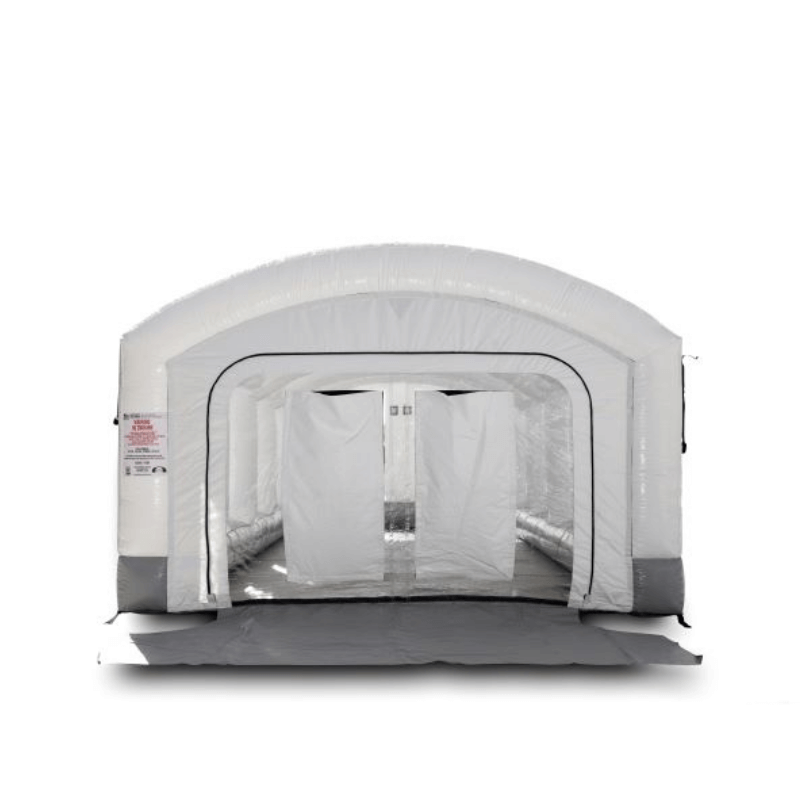

1 replaceable front door
1 replaceable back door

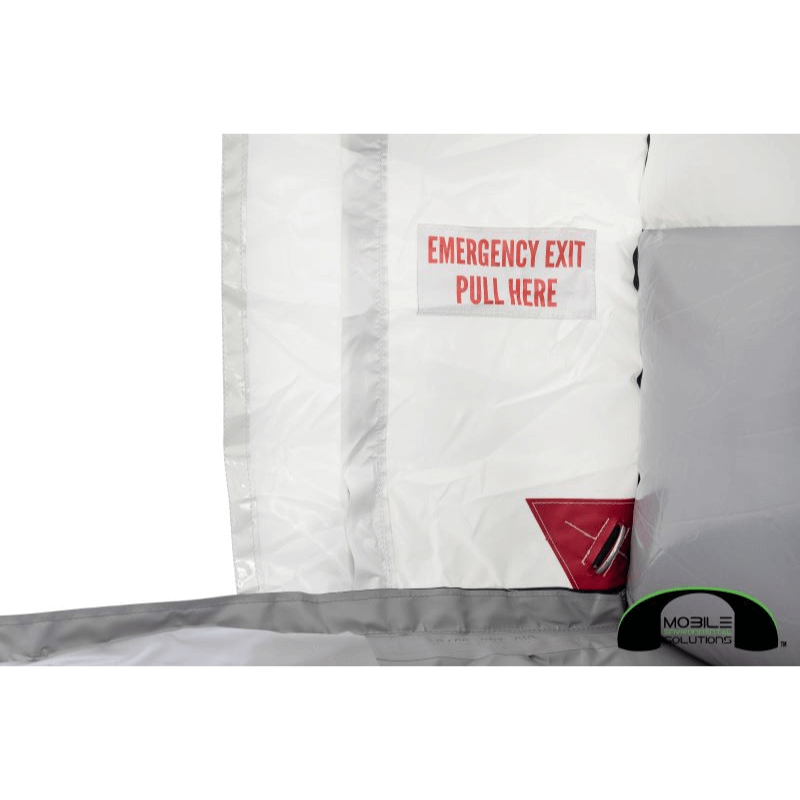

4 emergency exits
1 storage bag
1 repair kit
2 ETL & CE certified 1.5 HP air movers (115V/230V, 60Hz)

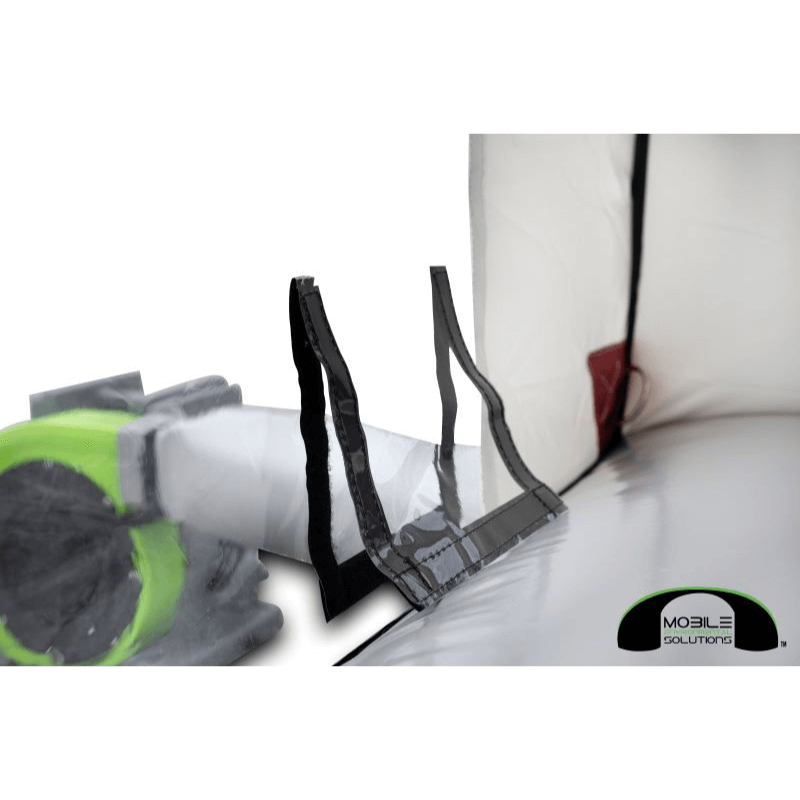

2 air hose access slots
1 operational manual
MES MES30X15X10HDLT Spec Sheet
