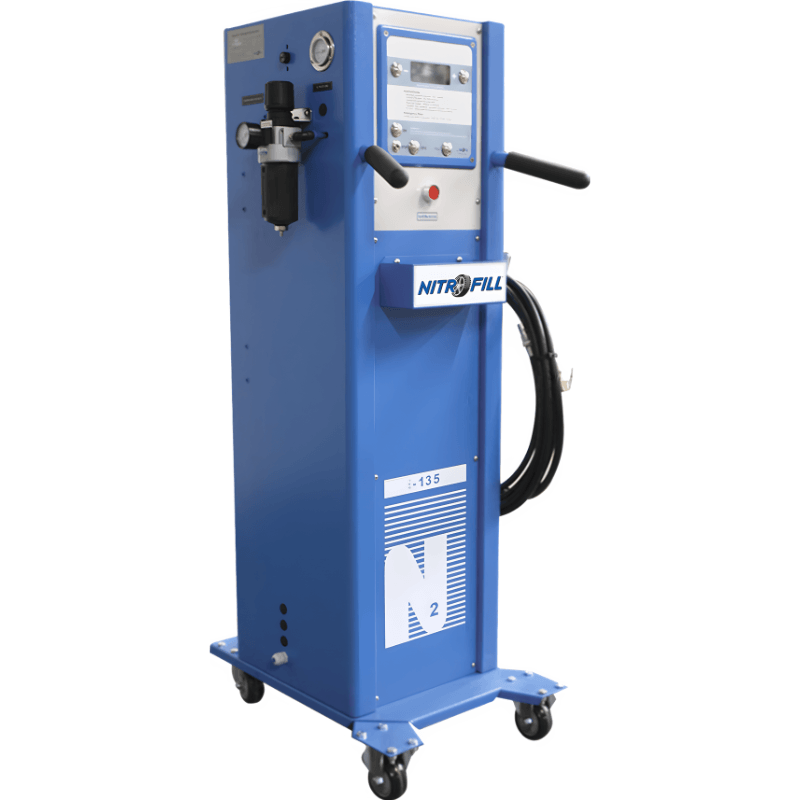

NitroFill E-135 Nitrogen Generation System - 5CFM

E-135 Nitrogen Generation System

The NitroFill E-135 Nitrogen Generation System is designed for automotive service facilities that need a reliable nitrogen source for servicing and topping off nitrogen-filled tires without requiring a high-volume conversion station. With a 3 CFM nitrogen output and purity of up to 99.9%, the E-135 provides a continuous supply of nitrogen for tire top-offs, calibration, and light-duty nitrogen conversions. It is especially suited for facilities that want a dedicated nitrogen source without tying up their primary generator.

An integrated automatic inflator makes tire pressure adjustment simple and precise. After selecting the desired inflation pressure, the technician connects the air chuck to the tire valve and waits for the audible signal. The E-135 automatically inflates or deflates the tire to the selected pressure, with accuracy of ±0.5 PSI. Self-calibration, self-diagnostic functions, automatic start, a back-lit LCD display, and an adjustable over-pressure setting provide straightforward operation for daily tire service.

The E-135 uses an advanced PSA nitrogen generation system and comes fully assembled for plug-and-play installation. It operates from 5 to 102 PSI and requires a minimum 5 CFM, 150 PSI shop air compressor.

E135 Specifications

• Model: E-135
• Product Type: Nitrogen Generation System with Automatic Inflator
• Power Requirement: 100–120 VAC, 50/60 Hz
• Operating Temperature: -4°F to 158°F
• Compressed Air Input: 87–123 PSI
• Minimum Compressor Requirement: 5 CFM at 150 PSI
• Compressed Air Quality: 0.01 ppm
• Nitrogen Purity: 95–99+%
• Nitrogen Output: 3.0 CFM at 116 PSI
• Maximum Nitrogen Tank Pressure: 102 PSI
• Inflator Accuracy: ±0.5 PSI
• Inflator Operating Range: 5–102 PSI
• Net Weight: 156.5 lbs.
• Gross Weight: 194 lbs.
• Unit Dimensions: 49.6" H × 17.7" W × 23.2" D
• Packing Dimensions: 54.3" H × 20.1" W × 28.7" D
• Service Hose: 26 ft.
• Inflator: Self-calibrating and self-diagnostic

E 135 Nitrogen Generation System Special Features

• 3 CFM nitrogen output
• Nitrogen purity of 95–99+%, up to 99.9%
• Integrated automatic tire inflator
• Designed for nitrogen tire top-offs and light conversions
• Advanced PSA nitrogen generation system
• Instant and uninterrupted nitrogen flow
• Self-calibrating inflator
• Self-diagnostic function
• Automatic start
• Back-lit LCD display
• Adjustable over-pressure setting
• Inflation accuracy of ±0.5 PSI
• Operating range of 5–102 PSI
• Complete, fully assembled system
• Includes 26 ft. service hose and chuck
• 5-year warranty
