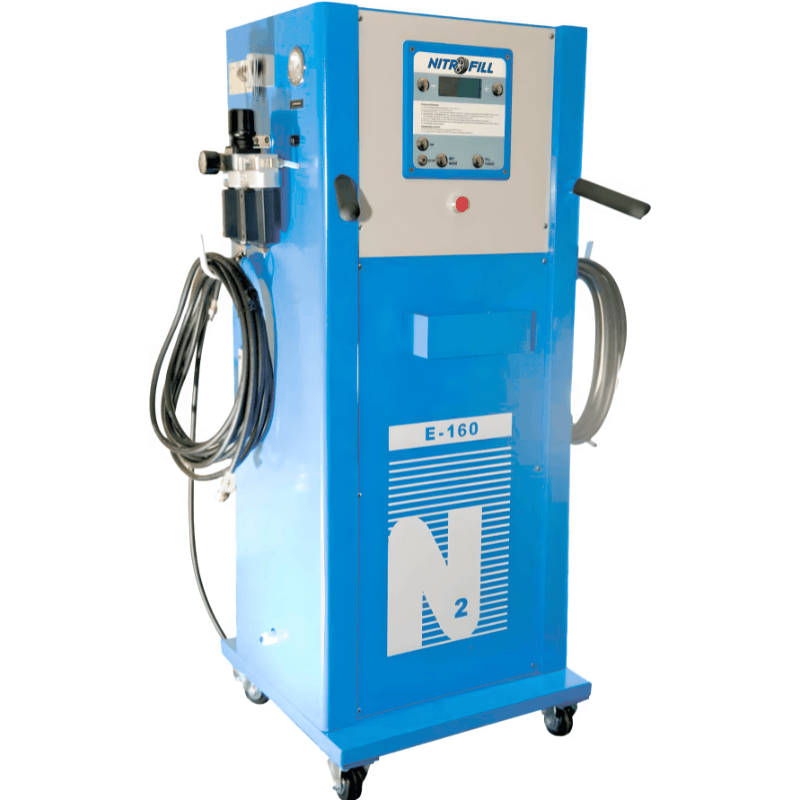

NitroFill E-160 Nitrogen Generation - 6CFM

E-160 Nitrogen Generation and Conversion Station System

The NitroFill E-160 Nitrogen Generation and Conversion Station is designed to provide a reliable and efficient solution for automotive shops that service cars, smaller pickup trucks, and SUVs. Combining NitroFill’s proven nitrogen generation technology with a compact 6 CFM output, the E-160 can convert up to four tires to nitrogen simultaneously at the touch of a button. Its fully automated operation and programmable controls help simplify the tire inflation process while maintaining consistent nitrogen delivery.

Built for everyday shop use, the E-160 uses an advanced PSA nitrogen generation system with adjustable nitrogen purity from 95% to 99%+. Twin exterior-mounted high-performance inlet air filters help support the generation system, while the large back-lit LCD display provides clear operating information along with audio and visual signals. The system also includes self-diagnostic and error-reporting functions to help technicians monitor operation and identify issues.

The E-160 provides 6 CFM nitrogen output and supports an operating range of 5 to 90 PSI, with an accuracy of ±1 PSI and selectable pressure units including PSI, kPa, and bar. Advanced operating modes such as Auto-On, Auto-Off, and Over-Pressure allow the system to be configured for different service requirements.

E160 Specifications

• Model: E-160
• Product Type: Nitrogen Generation and Conversion Station
• Power Requirement: 100–120 VAC, 50/60 Hz
• Operating Temperature: -4°F to 158°F
• Compressed Air Input Range: 125–150 PSI
• Compressed Air Quality: 0.01 ppm
• Nitrogen Purity: 95–99+% adjustable
• Nitrogen Output: 6 CFM at 160 PSI, 80°F
• Maximum Nitrogen Tank Pressure: 102 PSI
• Operating Pressure Range: 5–90 PSI
• Recommended Inlet Supply Pressure: 44 PSI above the maximum set pressure
• Accuracy: ±1 PSI
• Display Increments: 1 PSI
• Units of Measurement: PSI, kPa, bar
• Over-Pressure Setting Range: 0–29 PSI
• Nitrogen Purges: 0–9
• Shipping Weight: 320 lbs.
• Container Dimensions: 57" H × 28.5" W × 26" D
• Unit Dimensions: 52" H × 28" W × 24" D

E 160 Nitrogen Generation Special Features

• Converts up to 4 tires simultaneously
• 6 CFM nitrogen output
• Nitrogen purity adjustable from 95% to 99%+
• Fully automated and programmable operation
• Microprocessor-controlled conversion system
• Advanced PSA nitrogen generation technology
• Auto-On, Auto-Off, and Over-Pressure modes
• Large back-lit LCD display with audio and visual signals
• Comprehensive error reporting and self-diagnostic functions
• Twin exterior-mounted high-performance inlet air filters
• Instant and uninterrupted nitrogen flow
• Optional storage tank available
• Complete, fully assembled turn-key system
• Includes 4 tire service hoses
• ±1 PSI pressure accuracy
• 3-year warranty
