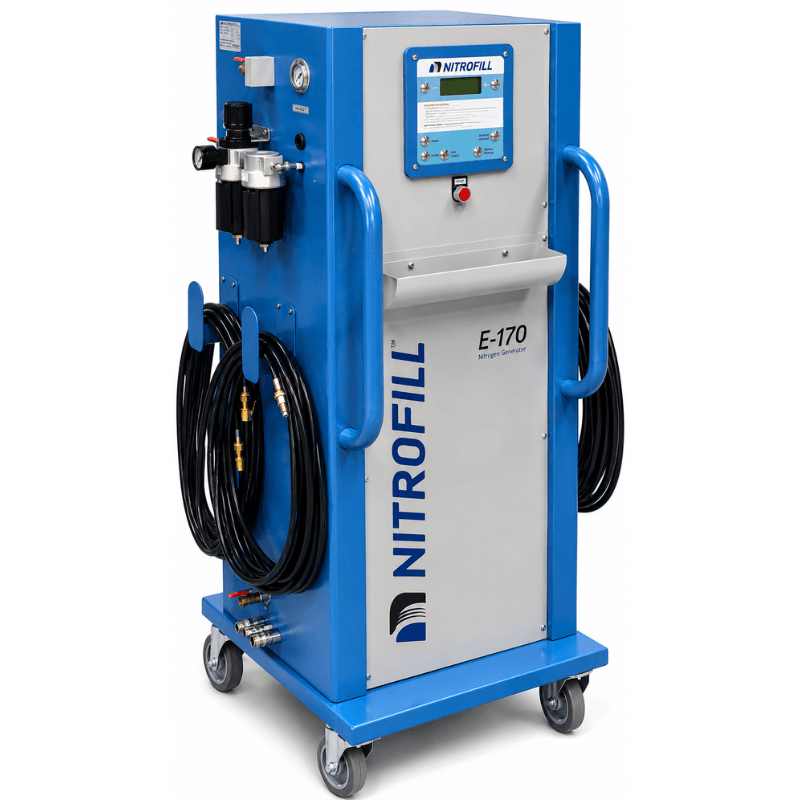

NitroFill E-170 Standard Nitrogen Generation Systems -13.5CFM

E-170 Standard Nitrogen Generation Systems

The NitroFill E-170 Standard Nitrogen Generation System is designed to provide fast, reliable nitrogen tire inflation for automotive service facilities. Built around NitroFill’s PSA nitrogen generation technology, the E-170 delivers up to 13.5 CFM of nitrogen output and can convert up to six tires simultaneously at the touch of a button. Its fully automated, microprocessor-controlled operation helps streamline tire service while providing consistent nitrogen production.

The E-170 features adjustable nitrogen purity from 95% to 99+%, along with advanced operating modes such as Auto-On, Auto-Off, and Over-Pressure. A large back-lit LCD display provides operating information with audio and visual signals, while built-in error reporting and self-diagnostic functions help technicians monitor the system. Twin exterior-mounted inlet air filters support the system's compressed-air filtration requirements.

Designed as a complete, turn-key system, the NitroFill E-170 comes fully assembled and includes four tire service hoses. With a 5–162 PSI operating range, ±1 PSI accuracy, and optional storage tank capability, the E-170 is suitable for a wide range of automotive service facilities.

Nitrogen Generation System E-170 Specifications

• Brand: NitroFill
• Model: E-170
• Product Type: Nitrogen Generation System
• Power Requirement: 100–120 VAC, 50/60 Hz
• Operating Temperature: -4°F to 158°F
• Compressed Air Input Range: 100–200 PSI
• Compressed Air Quality: 0.01 ppm
• Nitrogen Purity: 95–99+%, adjustable
• Nitrogen Output: 13.5 CFM at 160 PSI, 80°F
• Maximum Nitrogen Tank Pressure: 145–174 PSI
• Operating Range: 5–162 PSI
• Recommended Inlet Supply Pressure: 44 PSI above maximum set pressure
• Accuracy: ±1 PSI
• Display Increments: 1 PSI
• Units of Measurement: PSI, kPa, bar
• Shipping Weight: 465 lbs.
• Unit Dimensions: 52" H × 28" W × 24" D
• Container Dimensions: 57" H × 28.5" W × 26" D

E-170 Nitrogen Generation System Special Features

• Converts up to 6 tires simultaneously
• Fully automated, programmable operation
• Microprocessor-controlled conversion system
• Advanced Auto-On, Auto-Off, and Over-Pressure modes
• Nitrogen purity adjustable from 95% to 99+%
• 13.5 CFM nitrogen output
• Large back-lit LCD display
• Audio and visual operating signals
• Comprehensive error reporting and self-diagnostics
• Advanced PSA nitrogen generation technology
• Twin exterior-mounted high-performance inlet air filters
• Fully assembled turn-key system
• Includes 4 tire service hoses
• Optional storage tank available
• 5-year warranty
