NitroFill E-170H 13.5 CFM Nitrogen Generation System -13.5CFM

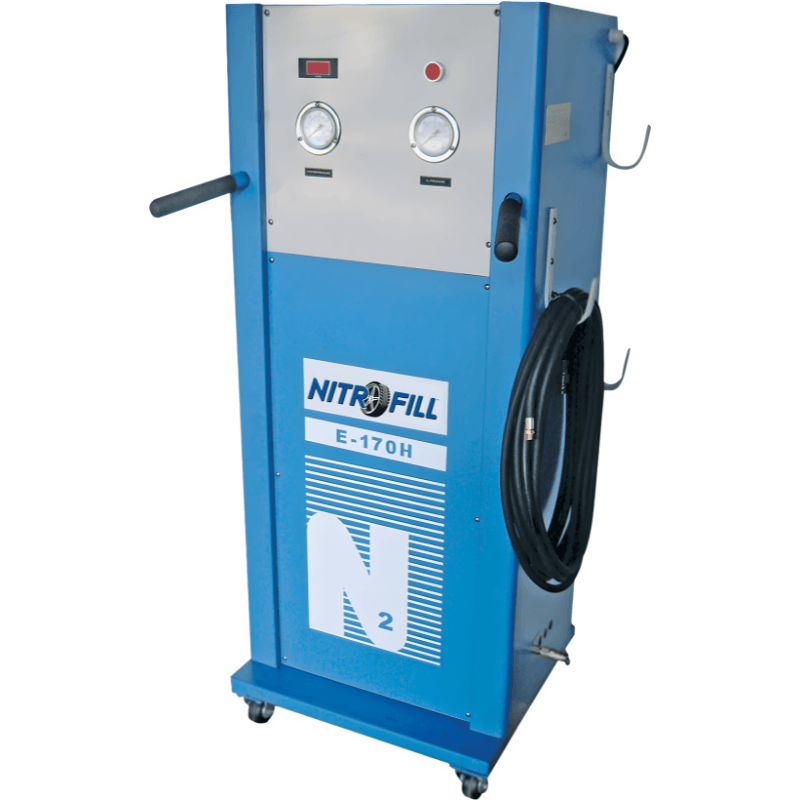

E-170H 13.5 CFM Nitrogen Generation System

The NitroFill E-170H 13.5 CFM Nitrogen Generation System is designed for automotive service facilities that need a high-output nitrogen source without an integrated automatic inflation unit. Delivering 13.5 CFM of nitrogen, the E-170H is well suited for applications where technicians already have separate tire inflation equipment or do not require automated pressure control. Its advanced PSA technology provides continuous nitrogen flow with adjustable purity from 95% to 99+%.

Built for dependable daily operation, the E-170H features twin exterior-mounted high-performance inlet air filters and a fully assembled, plug-and-play design. The system operates on 100–120 VAC, 50/60 Hz and accepts compressed air from 100–200 PSI. With nitrogen output rated at 13.5 CFM at 160 PSI and 80°F, it provides the capacity needed for a wide range of automotive tire service applications.

The E-170H can also be configured with optional accessories to match different shop requirements. A 30-gallon expansion tank can increase nitrogen output and reduce inflation times for facilities servicing pickup trucks, SUVs, and other vehicles with larger tires. A caster upgrade improves mobility, while the optional 12-volt power configuration allows the unit to operate from a standard vehicle battery for added flexibility.

Nitrogen Generation System E-170H Specifications

• Model: E-170H
• Product Type: Nitrogen Generation System
• Power Requirement: 100–120 VAC, 50/60 Hz
• Operating Temperature: -4°F to 158°F
• Compressed Air Input Range: 100–200 PSI
• Compressed Air Quality: 0.01 ppm
• Nitrogen Purity: 95–99+% adjustable
• Nitrogen Output: 13.5 CFM at 160 PSI, 80°F
• Maximum Nitrogen Pressure in Tank: 145–174 PSI
• Shipping Weight: 465 lbs.
• Container Dimensions: 57" H × 28.5" W × 26" D
• Unit Dimensions: 52" H × 28" W × 24" D

E-170H Nitrogen Generation System Special Features

• 13.5 CFM nitrogen output
• No integrated automatic inflation unit
• Nitrogen purity adjustable from 95–99+%
• Advanced PSA nitrogen generation technology
• Instant and uninterrupted nitrogen flow
• Twin exterior-mounted high-performance inlet air filters
• Fully assembled, plug-and-play system
• 5-year warranty
• Optional 30-gallon expansion tank
• Optional caster upgrade kit
• Optional 12-volt power configuration

Available Options

• 30-Gallon Expansion Tank: Increases nitrogen output and helps reduce inflation times for larger-volume tires.
• Caster Upgrade Kit: Provides a larger footprint and improved mobility.
• 12-Volt Power Option: Allows operation from a standard 12-volt vehicle battery using alligator-clip connections.
