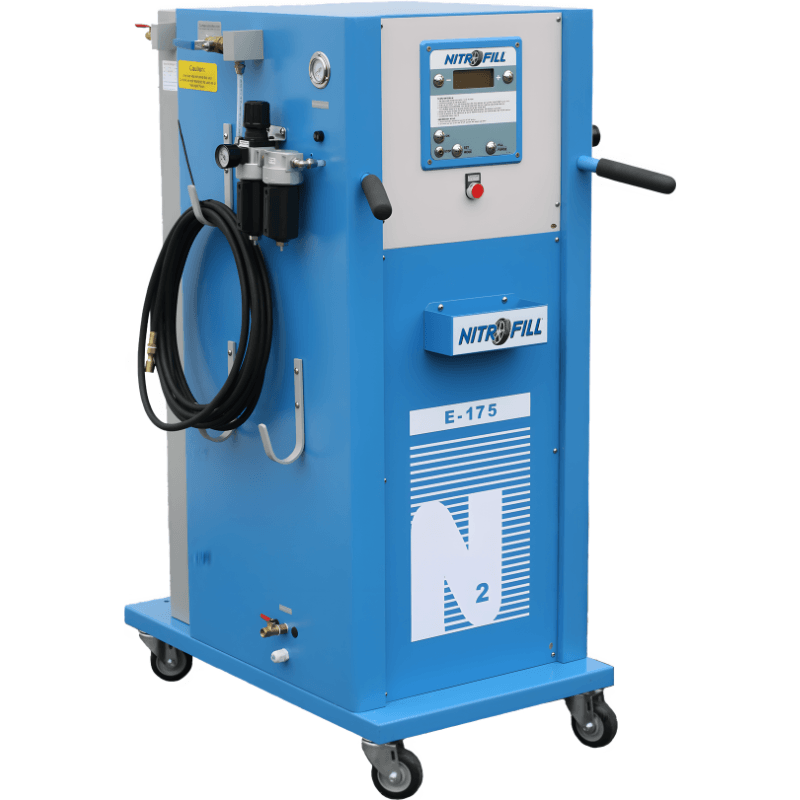

NitroFill E-175 High-Output Nitrogen System - 26CFM

E-175 26 CFM Nitrogen Conversion System

The NitroFill E-175 Nitrogen Conversion System is designed for high-volume automotive, truck tire, and fleet service facilities that need maximum nitrogen output for faster tire conversions. Producing an impressive 26 CFM, the E-175 is built to handle large commercial and truck tires while maintaining consistent nitrogen flow. Its high-output design can inflate a 12.00R × 22.5 tire from 0 to 120 PSI in less than 10 minutes, making it well suited for demanding service environments.

The E-175 combines a fully automated, microprocessor-controlled conversion system with advanced PSA nitrogen generation technology. It can convert up to six tires simultaneously at the touch of a button and provides adjustable nitrogen purity from 95% to 99+%. Advanced operating modes such as Auto-On, Auto-Off, and Over-Pressure allow technicians to configure the system for different tire service requirements, while the large back-lit LCD display provides clear operating information.

E175 Specifications

• Model: E-175
• Product Type: High-Output Nitrogen Conversion System
• Power Requirement: 100–240 VAC, 50/60 Hz
• Operating Temperature: -4°F to 158°F
• Compressed Air Input Range: 125–200 PSI
• Compressed Air Quality: 0.01 ppm
• Nitrogen Purity: 95–99+% adjustable
• Nitrogen Output: 26 CFM at 160 PSI, 80°F
• Operating Range: 5–162 PSI
• Accuracy: ±1 PSI
• Display Increments: 1 PSI
• Units of Measurement: PSI, kPa, bar
• Over-Pressure Setting Range: 0–29 PSI
• Nitrogen Purges: 0–9
• Shipping Weight: 800 lbs.
• Container Dimensions: 57" H × 28.5" W × 43" D
• Unit Dimensions: 52" H × 28" W × 39" D

E 175 Nitrogen Conversion System Special Features

• 26 CFM high-output nitrogen generation
• Converts up to 6 tires simultaneously
• Nitrogen purity adjustable from 95% to 99+%
• Advanced PSA nitrogen generation system
• Fully automated and programmable operation
• Microprocessor-controlled conversion system
• Auto-On, Auto-Off, and Over-Pressure modes
• Large back-lit LCD display with audio and visual signals
• Comprehensive error reporting and self-diagnostic functions
• Quad exterior-mounted high-performance inlet air filters
• Instant and uninterrupted nitrogen flow
• Designed for truck, commercial, and fleet tire service
• Complete, fully assembled turn-key system
• Includes 4 tire service hoses
• ±1 PSI accuracy
• 5-year warranty
