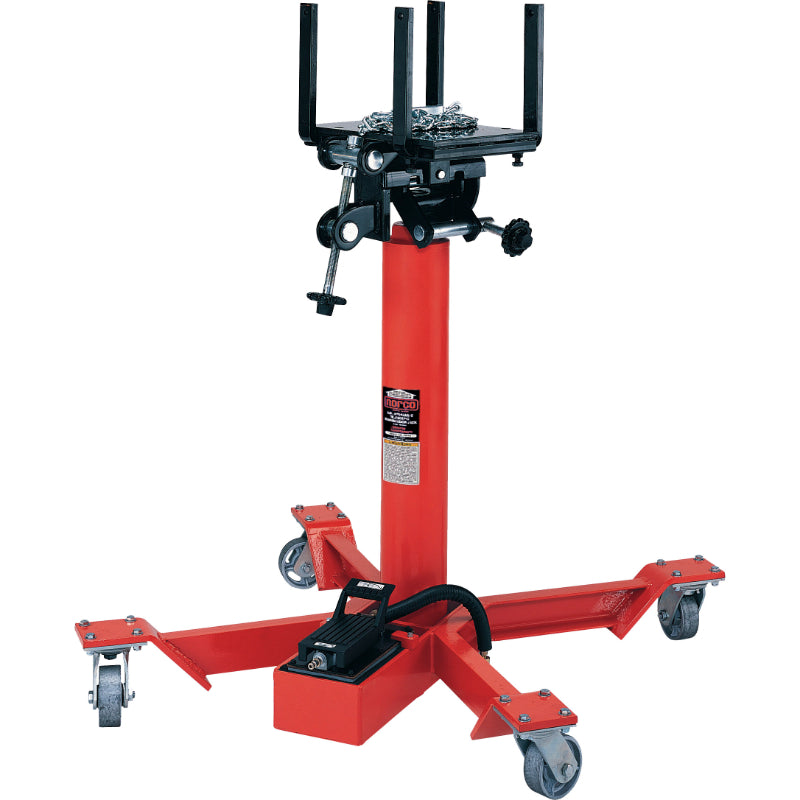

Norco 72701A 1 Ton Under Hoist Air/Hydraulic Truck Transmission Jack

SKU 72701A
by Norco
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$2,099.00
Free Warehouse Pickup Locations
Subject to Availability - Call/Text Email to confirm (1-800-474-6537; info@heavyliftdirect.com)
Address Type (Required Field)
Delivery Options (Required Field)

Notify me when back in stock

72701A  Air/Hydraulic Truck Transmission Jack by Norco

Why settle for a mediocre lifting experience when you can have the Norco 72701A Air/Hydraulic Truck Transmission Jack? This robust hydraulic jack is engineered for professional-grade lifting, ensuring you can tackle even the heaviest transmissions with ease. Featuring a low lift height of 41.25 inches and a high lift height of 69.375 inches, this jack delivers unparalleled performance and safety. The air/hydraulic foot pump allows for hands-free operation, while the metered pump valve guarantees the safe lowering of loads—because nobody wants a surprise drop!

Equipped with a fully adjustable universal saddle and adjustable arms for precise transmission positioning, this jack is as versatile as it is reliable. The heavy-duty chain with a convenient tensioner securely holds your load in place, while the safety overload system prevents you from exceeding the ASME/PASE load-limiting standard. With a 2" diameter, flash chromed, single-stage ram providing added stability, you can trust this jack to stand the test of time. The wide base and four heavy-duty 3-7/8" diameter swivel ball bearing caster wheels ensure stability and easy maneuverability. Weighing in at 273 lbs, this jack is ready to handle up to 1 ton of lifting power, making it the perfect addition to your workshop!

Truck Transmission Jack 72701A Specification:

  • Low Lift Height: 41.25"
  • High Lift Height: 69.375"
  • Base Dimensions: 37.5" x 38"
  • Shipping Weight: 273 lbs.

72701A 1 Ton Truck Transmission Jack Special Features:

  • Air/hydraulic foot pump provides hands free operation and easy convenient lifting.
  • Metered pump valve provides safe lowering of load.
  • Fully adjustable universal saddle with adjustable arms to position the transmission.
  • Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard.
  • Heavy duty chain with convenient chain tensioner secures load to saddle.
  • 2" diameter, flash chromed, single stage ram provides added stability throughout the entire lift range.
  • Wide base with four 3-7/8" diameter heavy duty swivel ball bearing caster wheels provides stability and easy maneuvering.

This Item has a FLAT RATE SHIPPING FEE: $199*
