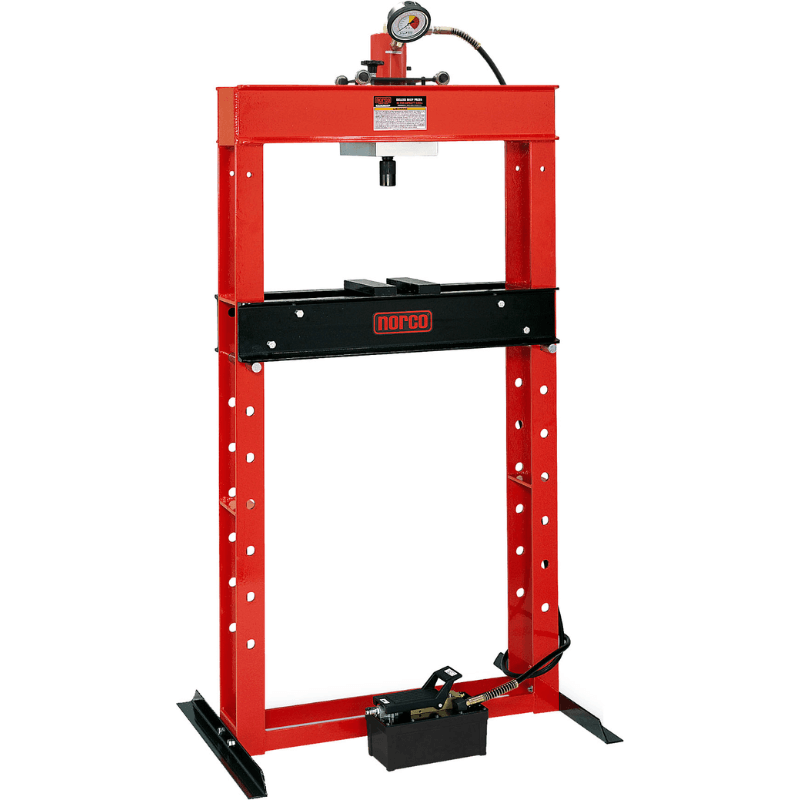

78024 25 Ton Capacity Air Hydraulic Pump Operated Shop Press by Norco
Take on your toughest pressing tasks with the Norco 78024A 25 Ton Air Hydraulic Pump Operated Shop Press, built for industrial-grade performance. With an impressive 25-ton capacity, this powerhouse tackles straightening, bending, and pressing jobs with ease, whether you're handling gears, bearings, or bushings. Its heavy-duty structural steel frame ensures zero distortion, even under the heaviest loads, while the fully assembled design lets you dive into projects right out of the box.
Efficiency meets precision with the air/hydraulic foot pump, delivering hands-free operation to keep your focus on accuracy. The self-retracting ram glides smoothly along the head channel, offering flexible positioning for any task. With an 8-inch ram travel, a 40-inch maximum throat height, and an included pair of bed plates, versatility is a given. Add in the liquid-filled gauge for real-time pressure monitoring, and you’ve got a press that combines brute strength with refined control for your most demanding jobs.
Air Hydraulic Hand Pump Operated Shop Press 78024 Specifications
- Capacity: 25 tons
- Ram Travel: 8"
- Throat Height:
- Minimum: 6.75"
- Maximum: 40"
- Throat Width: 30.5"
- Bed Height Adjustment: 8 x 4.75"
- Between Uprights: 6"
- Between Bed Rails: 7"
- Base Dimensions (W x D): 40" x 28"
- Overall Height: 76.75"
- Weight: 430 lbs.
78024 25 Ton Capacity Air Hydraulic Operated Shop Press Special Features
- Heavy-duty welded frame ensures no distortion, providing consistent reliability even under maximum load.
- Air/hydraulic foot pump provides hands-free operation for greater efficiency.
- Self-retracting ram slides horizontally on the head channel, allowing for precise and flexible positioning.
- Liquid-filled gauge measures both ram force and internal pressure for accurate operational monitoring.
- Comes fully assembled and tested, ready to be used immediately.
- Includes a pair of bed plates for versatile applications.
- Optional equipment compatibility:
- Accessory Kit
- Press Blanket
- Press Guard for enhanced safety and convenience.
