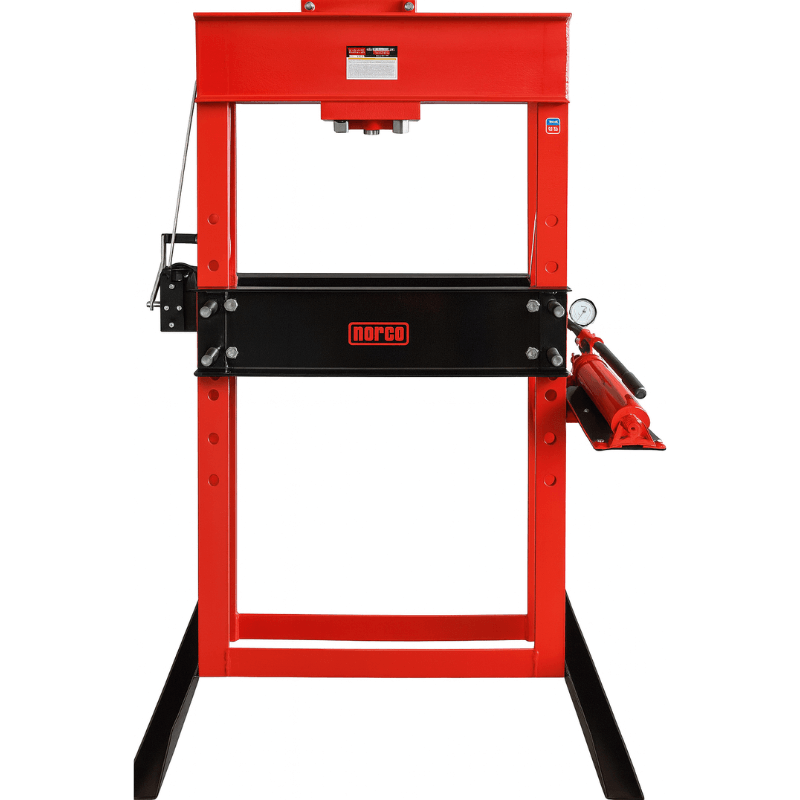

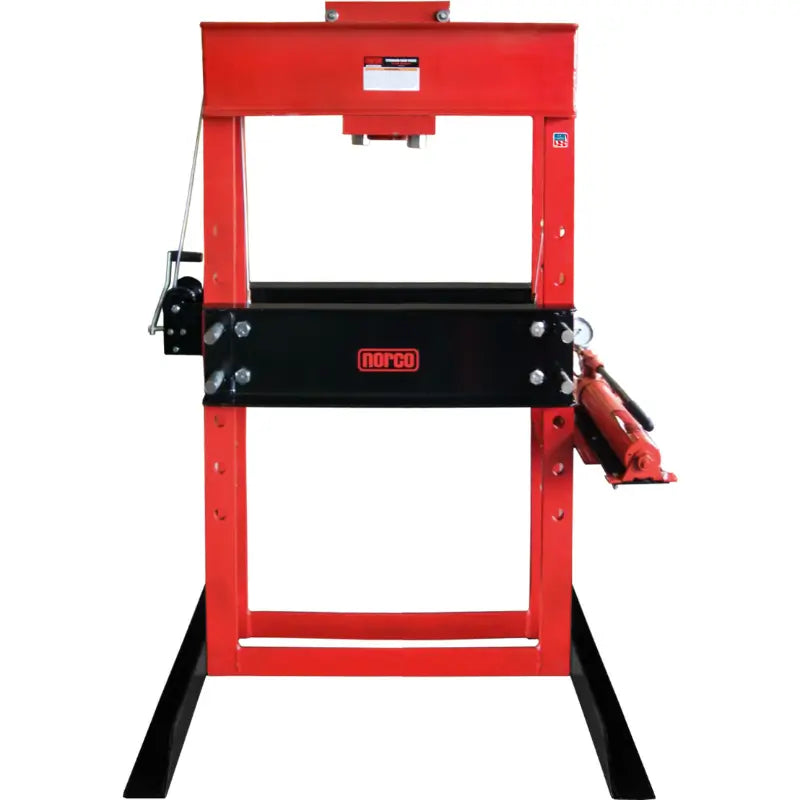

78055A 50 Ton Capacity Hand Pump Operated Shop Press by Norco

Meet your workshop’s next heavy-duty ally: the Norco 78055A 50 Ton Capacity Hand Pump Operated Shop Press. Engineered with precision and built to endure, this press boasts a throat height range of 7.5" to 32.625", providing the versatility to handle everything from straightening to pressing components like gears and bushings. Its 50-ton capacity and 6.25" ram travel deliver raw power, while the two-speed manually operated pump ensures fast and efficient operation, so you can tackle jobs with ease.

Safety and precision come standard, featuring a liquid-filled gauge to measure ram force accurately and a safety overload system to protect the power unit. The hand-operated winch offers smooth bed height adjustments, and the self-retracting ram, mounted on bearings, glides laterally along the head channel for flexible positioning. Fully assembled and tested, the 78055A is ready to work as hard as you do. Optional upgrades like arbor plates and a press guard enhance its capabilities and keep safety at the forefront.

Pump Operated Shop Press 78055A Specifications

  • Capacity: 50 tons
  • Ram Travel: 6.25"
  • Throat Height:
    • Minimum: 7.5"
    • Maximum: 32.625"
  • Throat Width: 34.5"
  • Bed Height Adjustment: 7 x 5"
  • Between Uprights: 5.625"
  • Between Bed Rails: 7.375"
  • Base Dimensions (W x D): 50" x 40"
  • Overall Height: 72.75"
  • Weight: 804 lbs.

78055A 50 Ton Capacity Hand Pump Operated Shop Press Special Features

  • Two-speed manually operated pump for quick ram travel to load.
  • Welded frame for strength and durability, ready for immediate use.
  • Safety overload system for protection against excessive pressure.
  • Hand-operated winch to adjust press bed height.
  • Liquid-filled gauge for accurate measurement of ram force in pounds and tons.
  • Self-retracting ram with bearing-mounted lateral movement on the head channel.
  • Fully assembled and tested for reliability.
  • Optional equipment:
    • Accessory Kit
    • 50 Ton Pair of Arbor Plates
    • Press Blanket
    • Press Guard for added safety.

Norco 78055A Documentation

Norco 78055A 50 Ton Capacity Operated Shop Press Operations Manual   Norco 78055A 50 Ton Capacity Operated Shop Press Operations Manual
