Norco 78058A 50 Ton Capacity Electro/Hydraulic Pump Operated Shop Press w/ 6 1/4" Stroke

SKU 78058A
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Typically Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$7,399.00

Delivery Options

Notify me when back in stock

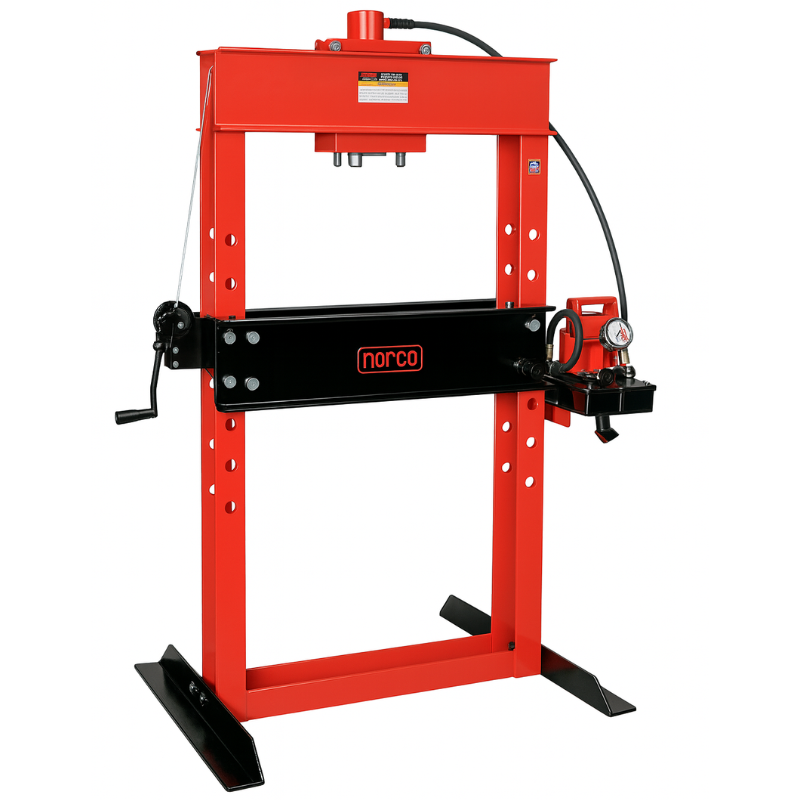

78058A 50 Ton Capacity Electro/Hydraulic Pump Operated Shop Press w/ 6 1/4" Stroke by Norco

Tired of wrestling with heavy-duty pressing tasks? The Norco 78058A Electro/Hydraulic Pump Operated Shop Press is here to simplify your workload. Built for industrial applications, this press boasts a robust 50-ton capacity and 6.25" ram travel, perfect for straightening, pressing, and bending large components. The fully welded frame ensures durability, while the electro/hydraulic foot pump delivers hands-free, high-speed operation for maximum efficiency.

No more guesswork or struggle—features like a hand-operated winch for controlled bed adjustments and a liquid-filled gauge for accurate ram force measurements ensure smooth operation. The bearing-mounted ram glides laterally, offering versatility for various applications. Fully assembled and tested, the 78058A is ready for action, and optional accessories like bed plates and a press guard enhance safety and functionality.

Pump Operated Shop Press 78058A Specifications

  • Capacity: 50 tons
  • Ram Travel: 6.25"
  • Throat Height:
    • Minimum: 7.5"
    • Maximum: 32.625"
  • Throat Width: 34.5"
  • Bed Height Adjustment: 7 x 5"
  • Between Uprights: 5.625"
  • Between Bed Rails: 7.375"
  • Base Dimensions (W x D): 50" x 40"
  • Overall Height: 72.75"
  • Weight: 814 lbs.

78058A 50 Ton Cap. Air Hydraulic Operated Shop Press Special Features

  • Heavy-duty welded frame ensures durability and strength.
  • High-speed electro/hydraulic foot pump allows hands-free operation for efficiency.
  • Safety overload system protects the power unit against excessive pressure.
  • Hand-operated winch for precise bed height adjustments.
  • Liquid-filled gauge accurately measures ram force in pounds and tons.
  • Self-retracting ram mounted on bearings for smooth lateral movement.
  • Fully assembled and tested for immediate use.
  • Includes a pair of bed plates for versatile applications.
  • Optional equipment available:
    • Accessory Kit
    • 50 Ton Pair of Bed Plates
    • Press Blanket
    • Press Guard for enhanced safety.

Norco 78058A Documentations

Norco 78058A 50 Ton Capacity Operated Shop Press Operations Manual   Norco 78058A 50 Ton Capacity Operated Shop Press Operations Manual
