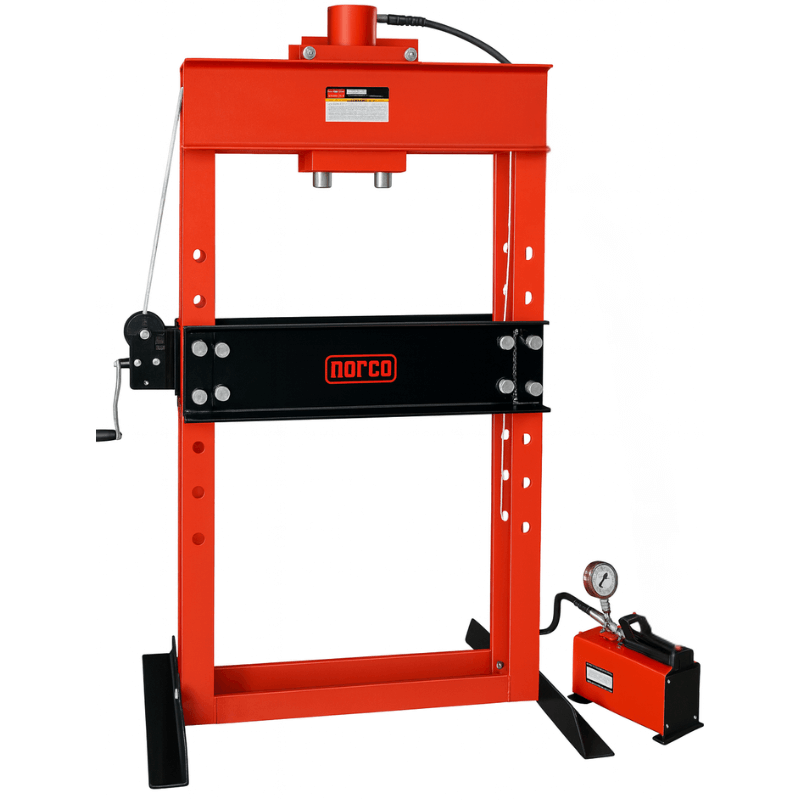

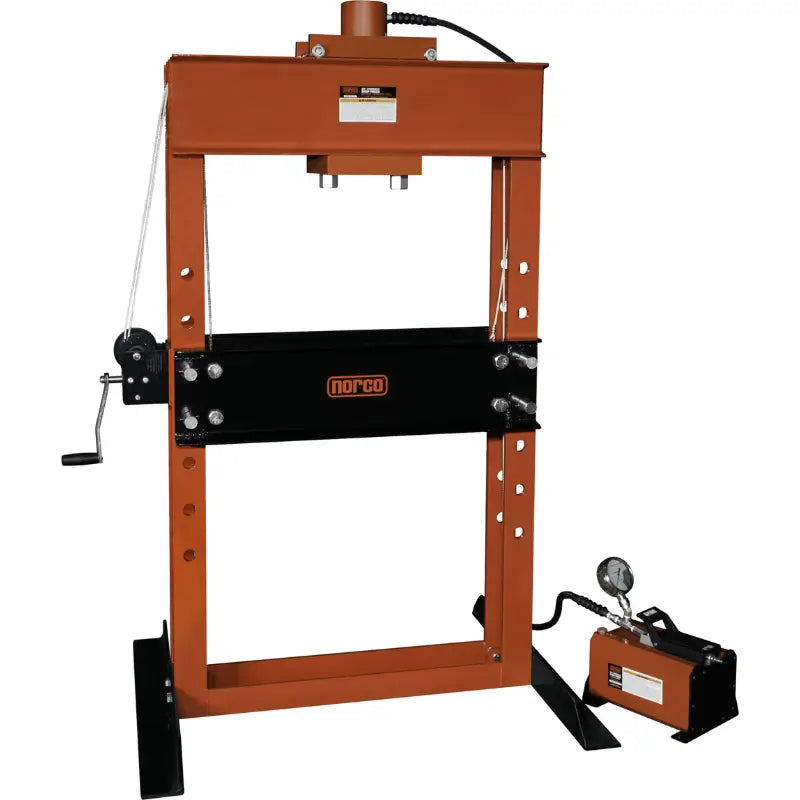

Norco 78077 50 Ton Capacity Air Hydraulic Pump Operated Shop Press w/ 13 1/4" Stroke

SKU 78077
  • No Sales Tax - Except CA, FL, IL, IN, MI, & OH
  • Typically Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited
$6,399.00

Delivery Options

Notify me when back in stock

78077 50 Ton Capacity Air Hydraulic Pump Operated Shop Press w/ 13 1/4" Stroke by Norco

Unleash the power of the Norco 78077 50 Ton Air Hydraulic Pump Operated Shop Press—the ultimate solution for heavy-duty straightening, bending, and pressing. Boasting a staggering 50-ton capacity and an impressive 13.25" ram travel, it’s built for the demanding tasks of truck garages and industrial workshops. Its fully welded frame promises unmatched durability, while the air/hydraulic foot pump and 10-foot hose deliver fast, hands-free operation.

With a throat height range of 7.5" to 32.625" and a throat width of 34.5", this press is ready for your largest components. The hand-operated winch ensures precise bed adjustments, and the self-retracting, bearing-mounted ram glides laterally for superior versatility. A liquid-filled gauge keeps you informed with accurate force readings in pounds and tons. Ready to use straight out of the box and offering optional accessories like a press guard and blanket, the 78077 is your shop’s powerhouse workhorse.

Pump Operated Shop Press 78077 Specifications

  • Capacity: 50 tons
  • Ram Travel: 13.25"
  • Throat Height:
    • Minimum: 7.5"
    • Maximum: 32.625"
  • Throat Width: 34.5"
  • Bed Height Adjustment: 7 x 5"
  • Between Uprights: 5.625"
  • Between Bed Rails: 7.375"
  • Base Dimensions (W x D): 50" x 40"
  • Overall Height: 72.75"
  • Weight: 801 lbs.

78077 50 Ton Cap. Air Hydraulic Operated Shop Press Special Features

  • Heavy-duty welded frame provides superior strength and durability.
  • High-speed air/hydraulic foot pump ensures efficient and fast operation.
  • Safety overload system protects the power unit from excessive pressure.
  • Hand-operated winch for precise adjustment of the press bed.
  • Liquid-filled gauge for accurate measurement of ram force in pounds and tons.
  • Self-retracting ram with bearing-mounted design enables lateral movement on the head channel.
  • Fully assembled and tested for immediate use.
  • Includes a pair of bed plates for versatile applications.
  • Optional equipment available:
    • Accessory Kit
    • 50 Ton Pair of Bed Plates
    • Press Blanket
    • Press Guard for enhanced safety and functionality.

Norco 78077 Documentations

Norco 78077 50 Ton Capacity Operated Shop Press Operations Manual   Norco 78077 50 Ton Capacity Operated Shop Press Operations Manual
