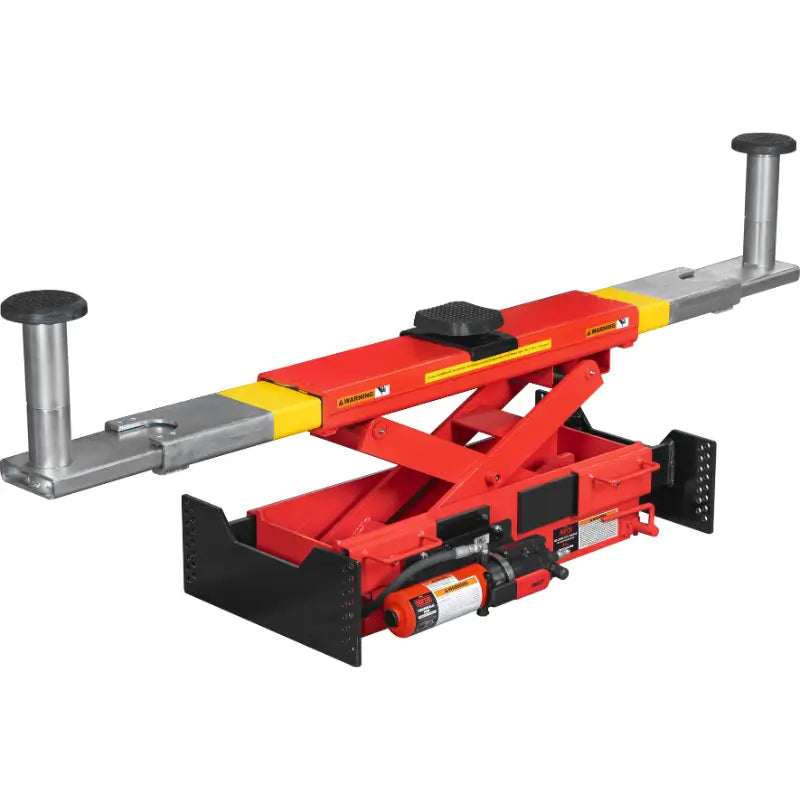

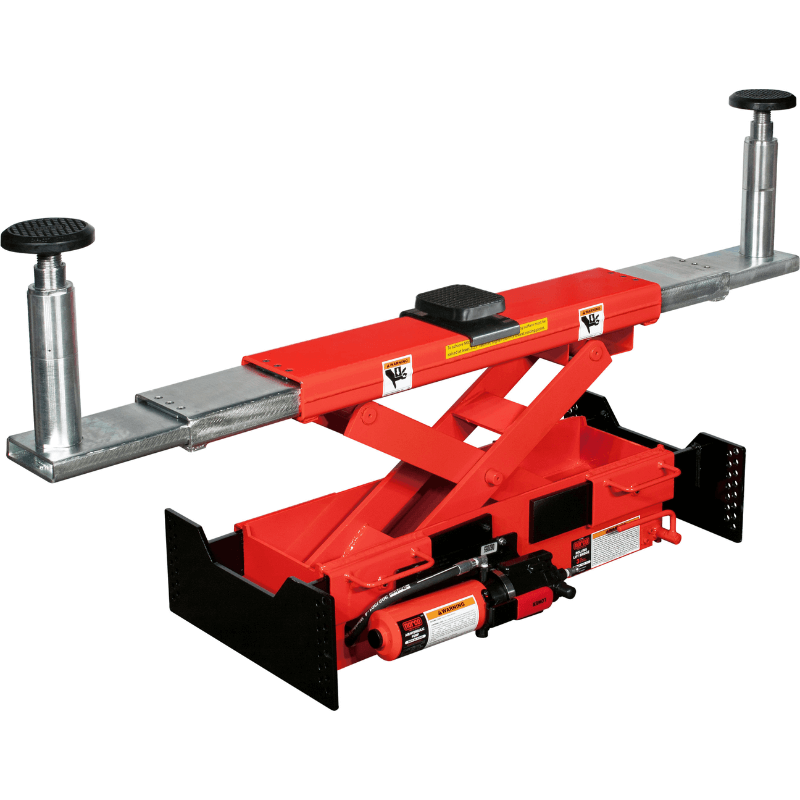

79345 3 Ton Capacity Air Hydraulic Pump Operated Rolling Lift Bridge by Norco Side View

Norco 79345 3 Ton Capacity Air Hydraulic Pump Operated Rolling Lift Bridge

SKU 79345
by Norco Lifting
  • ✓ Avoid Tariff Increase - Order by Saturday, May 31
  • ✓ No Sales Tax - Except CA, FL, IL, IN, MI, OH, & PA
  • ✓ Ships in 3-5 Business Days
  • ✓ Free Warehouse Pickup Options
$3,399.00

Delivery Options

Notify me when back in stock

79345 3 Ton Capacity Air Hydraulic Pump Operated Rolling Lift Bridge by Norco

Servicing electric vehicles and accommodating their wider dimensions can be a challenge in traditional automotive setups. Standard rolling lift bridges often fall short in handling the unique requirements of modern EVs, limiting your shop's efficiency and versatility.

The Norco 79345 3-Ton Rolling Lift Bridge is your solution, offering a widened lift arm span of 71-5/8 inches and a strong 3-ton capacity to handle both EVs and traditional vehicles. Its air/hydraulic pump operation, combined with universal mounting brackets and safety features like a mechanical stop ensures smooth, precise, and secure lifting. Equip your shop with the versatility and reliability needed for the new age of automotive service.

Rolling Lift Bridge 79345 Specifications

  • Capacity: 3 tons
  • Stroke: 9"
  • Maximum Lift Height: 19-7/8" (with adapters and extension screws extended)
  • Lift Arm Span: 36-11/16” (retracted) to 71-5/8” (extended)
  • Rail Range (with universal mounting brackets): 32" to 46-1/2"
  • Dimensions (L x W x H): 35.75" x 21.5" x 9.5625"
  • Weight: 350 lbs.

79345 3 Ton Capacity Rolling Lift Bridge Special Features

  • Push-button air/hydraulic pump enables quick and safe lifting up to 9”.
  • Adjustable lift arms span up to 71-5/8” to accommodate wider electric vehicles.
  • Universal mounting brackets fit lift rails ranging from 32” to 46-1/2”.
  • Spring-loaded roller bearings on adapter brackets (sold separately) for smooth maneuverability on lift rails.
  • Mechanical stop prevents accidental lowering of the bridge, enhancing safety.
  • Single-hand lowering system with release lever and mechanical stop disengagement for precise control.
  • Rubber-faced saddles ensure secure, damage-free differential lifting.
  • Includes lift adapters: (2) 3.5” adapters, (2) 5” adapters, and (2) padded saddles with extension screws.
  • Compatible with mounting adapter kits:
    • 79326D: Flat-End Adapter Bracket Kit
    • 79327D: Hook-End Adapter Bracket Kit

Norco 79345 Documentations

Norco 79345 Operations Manual   Norco 79345 Rolling Lift Bridge Operations Manual
