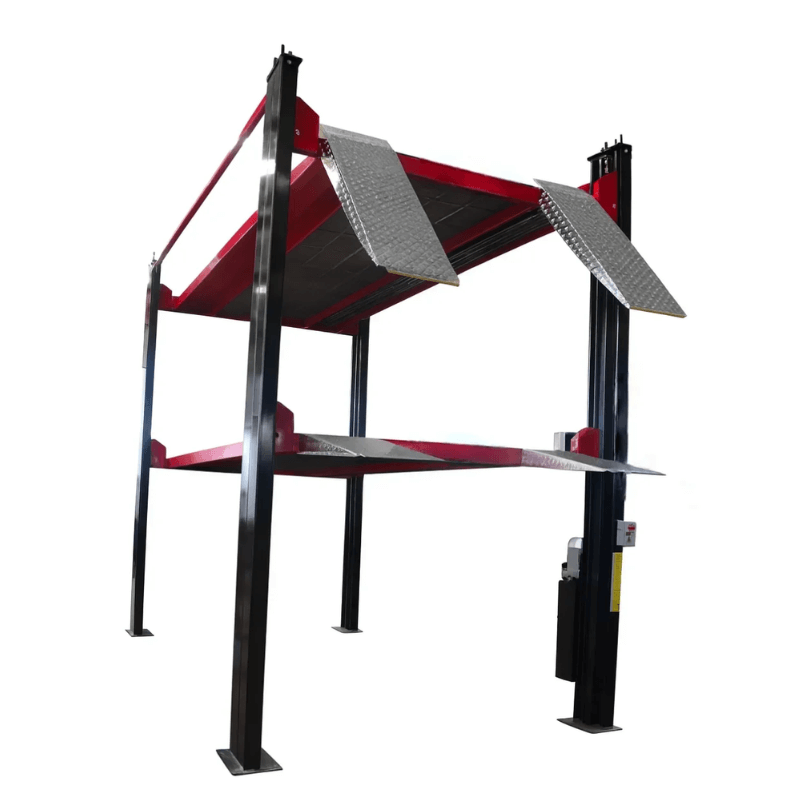

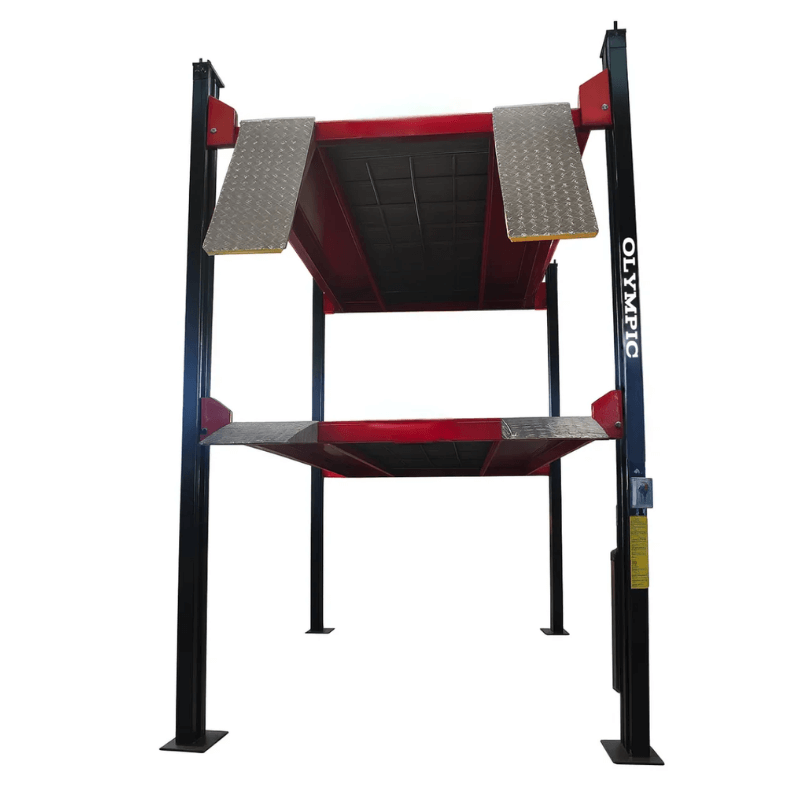

Olympic 4032S 11,000lbs Three-Level 3-Car Storage Lift

4032S Three-Level 3-Car Storage Lift – 11,000 lb Triple Parking Solution

Maximize your garage or commercial parking space with the 4032S Three-Level Car Storage Lift, engineered to safely stack and store three vehicles in a single footprint. Featuring independent platform operation with dedicated top and bottom lifting systems, this triple-stacker is ideal for residential garages, dealerships, and professional storage facilities. With a total load capacity of 11,000 lbs (5,000 lbs upper platform and 6,000 lbs lower platform), it easily accommodates cars and medium-sized pickup trucks.

Built for durability and smooth performance, the 4032S is powered by a high-efficiency electric motor and constructed from heavy-duty Q235B steel with a powder-coated finish for long-term protection. Its wide drive-through clearance, fast lifting time, and secure locking positions ensure safe, efficient, and hassle-free operation—making it a premium solution for anyone looking to triple their parking capacity without expanding floor space.

Certified and tested at 150% of rated capacity and protected by an industry-leading 10-year warranty.

4032S Specification

• Total Lifting Capacity: 11,000 lbs (5,000 lbs top / 6,000 lbs bottom)

• Drive-Through Clearance: 95.3″

• Maximum Lifting Height: 153.74″

• Column Height: 172″

• Overall Width: 101.42″

• Overall Length: 230.83″

• Distance Between Platforms: 74.33″

• Top Platform Runway Length: 194.8″

• Bottom Platform Runway Length: 188″

• Top Platform Runway Width: 21.77″

• Bottom Platform Runway Width: 18.6″

• Lifting Time to Max Rise: 90 seconds

• Motor: 2.2KW

• Voltage Options: 110V / 220V / 400V

• Steel Material: Q235B

• Surface Finish: Powder-coated

4032S 11,000lbs Three-Level 3-Car Storage Lift Special Features

• Triple-level design stores three vehicles in one parking space

• Independent top and bottom platform operation

• Dedicated lifting systems for enhanced safety and stability

• Wide drive-through clearance for easy vehicle positioning

• Fast and efficient electric lifting performance

• Heavy-duty steel construction for long-term durability

• Secure locking positions for safe vehicle storage

• Ideal for residential garages, showrooms, and commercial facilities

• Backed by the Industry Best Olympic Warranty:

  • 10 Year: Major Structural Components
  • 3 Year: Hydraulics, Electronics, Cylinders, etc.
  • 1 Year: Wear Parts (Pads, Neoprene, etc.)

4032S Manual

No Documents
