QSP CS-650 Portable Heavy-Duty Alignment Kit

SKU CS-650
  • Made in the USA
  • Estimated Leadtime: 2-3 Weeks
  • No Sales Tax - Except CA, GA, FL, IL, IN, MI, OH, & PA
  • Free Warehouse pickup options
$3,182.13

Delivery Options

Notify me when back in stock

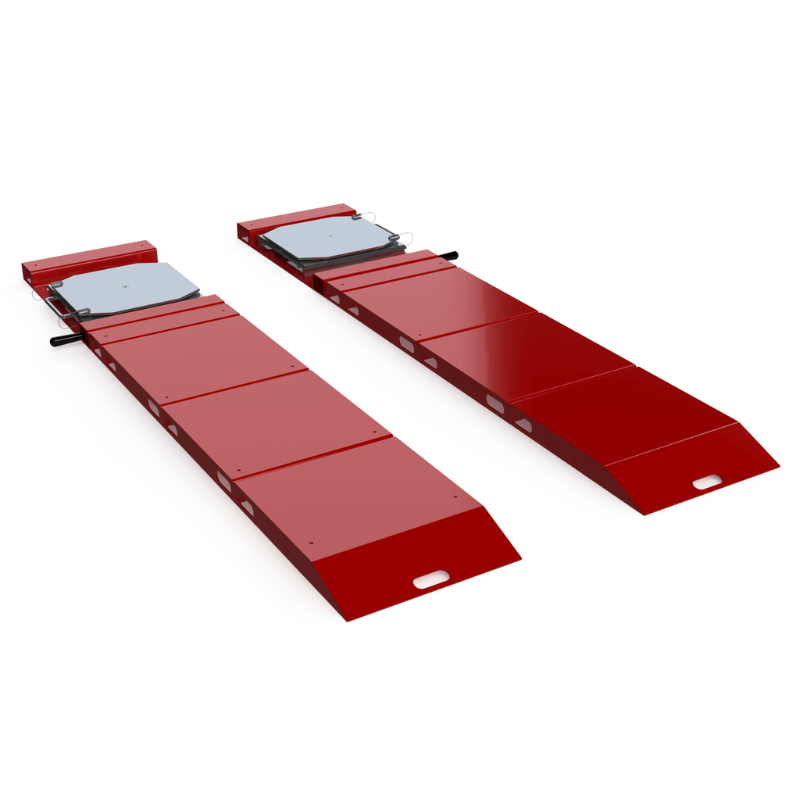

CS-650 Portable Heavy-Duty Alignment Kit – 30,000 lb Capacity with 78" Roll Back

The QSP CS-650 Portable Heavy-Duty Alignment Kit is expertly engineered for shops seeking top-tier performance in a compact, modular form. Ideal for garages with limited floor space, this system allows you to perform heavy-duty alignments anywhere without the need for a dedicated alignment bay. The CS-650 is built with portability and convenience in mind, featuring modular sections that lock together securely and weigh under 60 lbs each—making setup and relocation effortless.

This kit accommodates rollback compensation with an impressive 78” rollback distance, and removable turnplate pockets (turnplates sold separately) allow for easy customization. The unit's 2¾” overall height ensures smooth transitions for vehicle positioning. With a 30,000 lb capacity, the CS-650 handles everything from passenger vehicles to large commercial trucks. Use it as a portable system or bolt it permanently to the floor for long-term use.

For added organization, the optional CS-650-C1 storage cart (sold separately) features a durable stainless steel top and provides a dedicated space for storing the kit when not in use. Whether you need flexibility or full-time alignment support, the CS-650 is a reliable and efficient solution for maximizing your shop’s capability.

Portable Alignment Kit CS-650 Specification

  • Model: CS-650

  • Height: 2¾"

  • Width: 20"

  • Depth: 102"

  • Roll Back Distance: 78"

  • Weight Capacity: 30,000 lbs

  • Turnplate Pocket Dimensions: 20”W x 26”L x 2½”D

  • Component Weight: Each under 60 lbs

  • Shipping Weight (Kit): Approx. 461 lbs

  • Turnplates: Sold separately

  • Installation: Portable or bolt-down

  • Storage Cart (Optional - Model CS-650-C1):

    • Height: 36"

    • Width: 21 3/8"

    • Depth: 49"

    • Shipping Weight: Approx. 138 lbs

CS-650 Portable Alignment Kit Special Features

  • 30,000 lb heavy-duty alignment capacity

  • 78” roll back distance for alignment accuracy

  • Ideal for shops with tight or shared workspaces

  • Lock-together sections – lightweight and easy to handle

  • Removable turnplate pockets for easy setup (turnplates sold separately)

  • Can be used portably or bolted down for permanent alignment bays

  • Optional storage cart with stainless steel top available (Model CS-650-C1)

  • Custom lengths available to suit your alignment equipment

QSP CS-650 Manual

QSP CS-650 Product Brochure   QSP CS-650 Product Brochure
