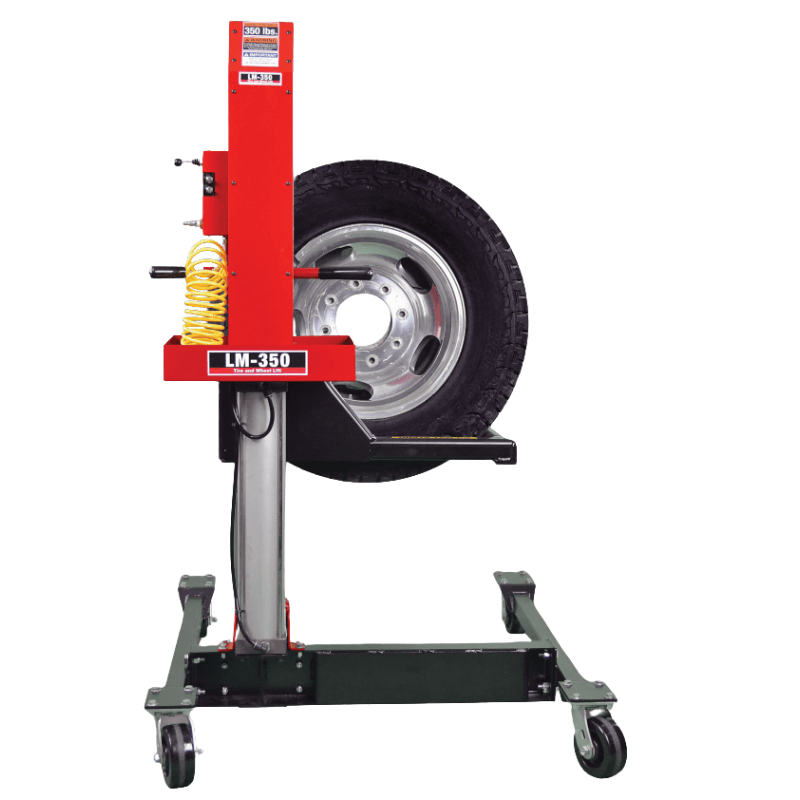

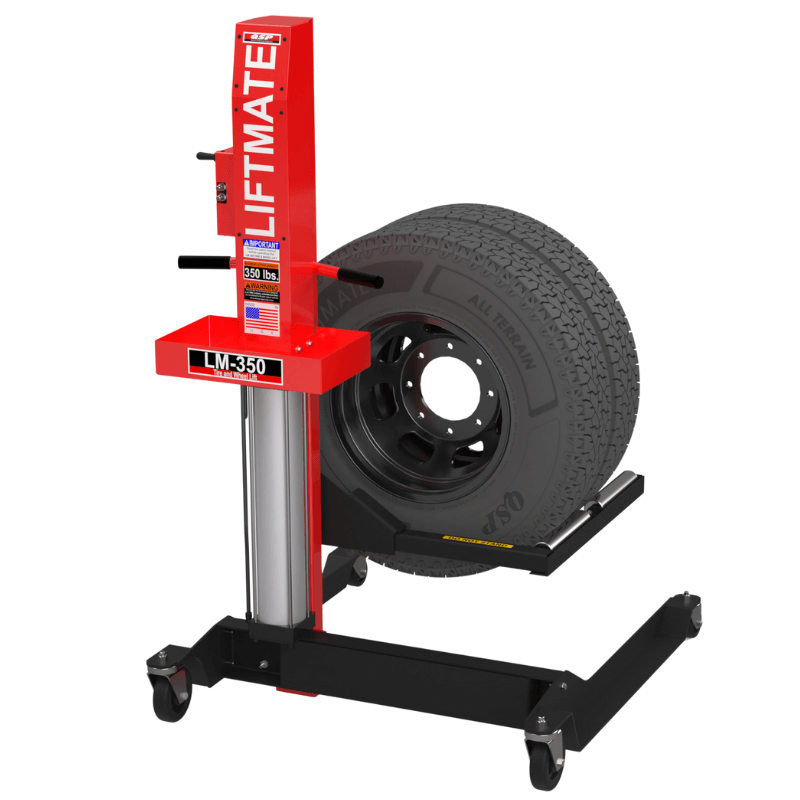

The QSP LM-350 Air Operated Wheel Lift is engineered to address the challenges of mounting and demounting today's increasingly heavy wheel assemblies. With tire and wheel combinations on modern trucks and SUVs reaching up to 350 pounds, manual handling poses a significant risk of injury and fatigue. The LM-350 eliminates that concern by offering an air-powered, ergonomic lifting solution that reduces strain and improves technician safety and efficiency.
Designed with a user-first approach, the LM-350 features an off-center column, giving technicians unobstructed access to lug nuts, tire changers, and wheel balancers. This thoughtful design improves workflow in busy shop environments. The dual steel rollers allow for precise positioning and even accommodate dual-wheel setups, thanks to their ability to rotate independently. The lift reaches its full working height in just 8 seconds, maximizing throughput and minimizing downtime.
The LM-350 operates with variable speed controls, giving users greater command over the lift’s motion, whether raising or lowering wheel assemblies. Its robust structure, combined with an intuitive footprint and ISO-certified quality, makes it an ideal addition for any tire shop, service center, or fleet maintenance facility focused on technician safety and operational performance.
Model: LM-350
Lifting Capacity: 350 lbs
Power Source: Air operated
Rise Time: 8 seconds
Maximum Height: 61”
Lift Height at Rollers: 41”
Width: 38”
Depth: 42”
Design: Offset column for lug nut access
Rollers: Dual independent rollers
Speed Control: Variable raise/lower control
Patents: U.S. Patent No. 8,684,654
Certifications: ISO 9001:2015
Manufacturer Location: Maryland Heights, MO, USA
Lifts up to 350 lbs with reliable air-powered performance
Ideal for handling heavy tire/wheel assemblies quickly and safely
Offset column provides unobstructed access to lug nuts and equipment
Dual rollers support independent rear wheel rotation for easier alignment
Variable speed operation offers greater control and technician comfort
Full rise height in just 8 seconds—maximize shop productivity
Designed and manufactured in the USA
Rugged steel construction and ergonomic design ensures long-term use
Reduces workplace injury risk and enhances technician workflow
QSP LM-350 Installation Instruction
QSP LM-350 Product Brochure
QSP LM-350 Warranty
QSP LM-350 Lift Mate Overview
