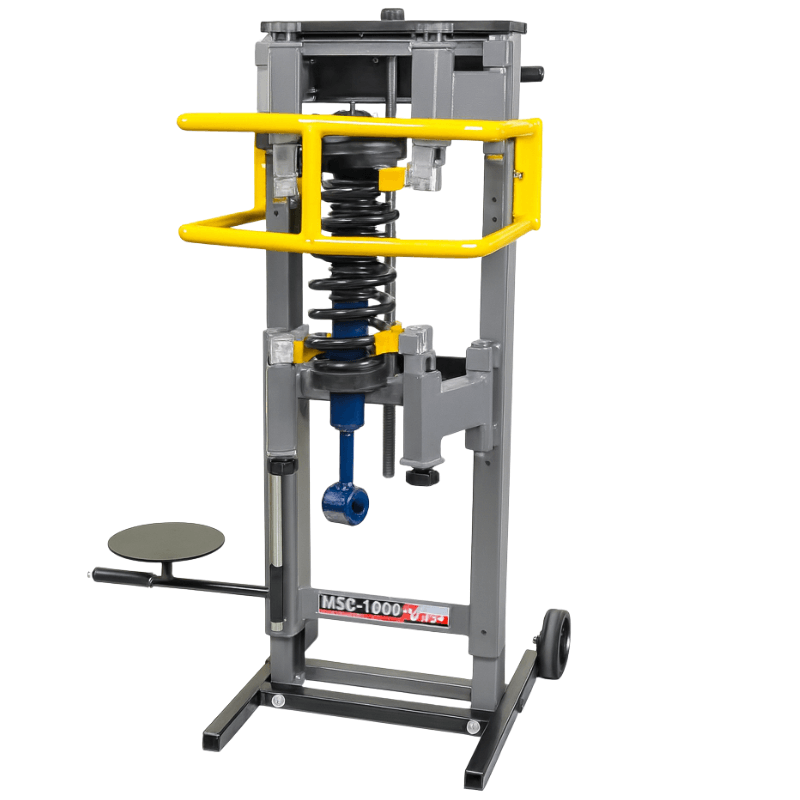

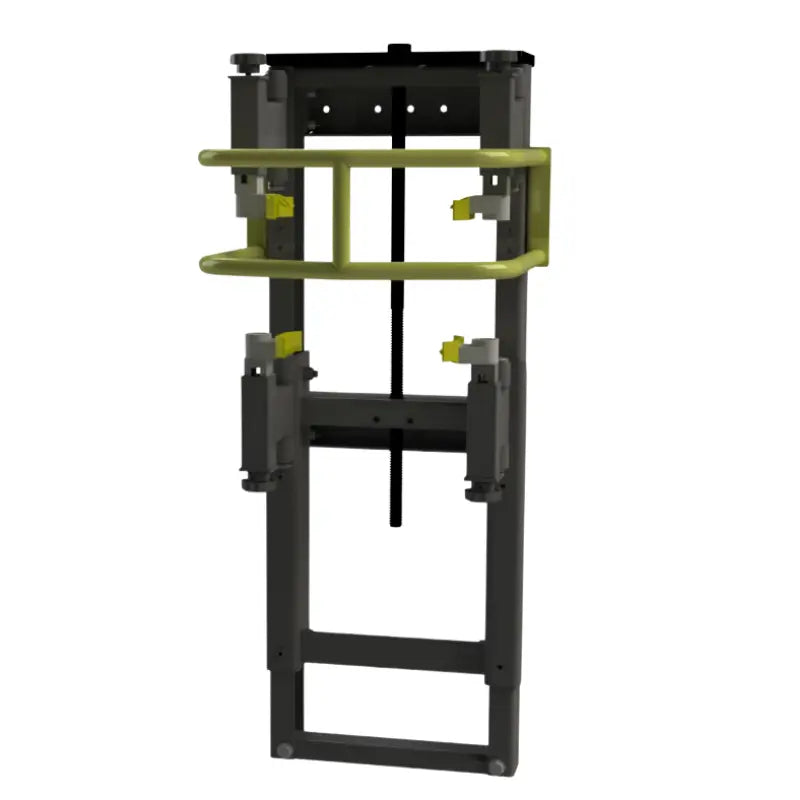

QSP MSC-1000 Mechanical Strut Compressor - Wall Mounted

SKU MSC-1000
$1,237.04
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Ships in 3-5 Business Days
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

QSP MSC-1000 Mechanical Strut Compressor

The QSP MSC-1000 Mechanical Strut Compressor is engineered for professional automotive service centers and technicians who demand precision and safety. Designed to meet ASME standards, this unit offers safe compression for a wide range of strut and coil spring assemblies. Wall-mounted for added stability, it is equipped with a protective safety cage, spring support arms, and a tool tray for organized operation.

Built to handle heavy-duty tasks, the MSC-1000 supports springs with diameters ranging from 3.5" to 11.5" and features a powerful 9-7/8" compression stroke. The system includes adjustable hooks, support arms, and optional accessories like the diamond plate kit for handling large or nonstandard springs. Designed with technician safety in mind, the unit features easy hook engagement, pinch point warnings, and locking support plates for secure operation.

Daily and monthly maintenance is straightforward, and the unit includes a comprehensive operating guide. The MSC-1000 is backed by a 12-month limited warranty, ensuring reliability in the most demanding environments. Whether you’re working on passenger cars or heavy-duty trucks, this strut compressor will provide the performance and safety you expect from QSP.

Strut Compressor MSC-1000 Specification

  • Model: MSC-1000

  • Actuation Stroke: 9-7/8"

  • Clamp Adjustment Stroke: 2-5/8"

  • Max Distance Between Clamps: 12-1/2"

  • Max Spring Diameter: Ø11.5"

  • Min Spring Diameter: Ø3.5"

  • Max Spring Wire Diameter: Ø1.5"

  • Min Coil Gap: 7/8"

  • Unit Weight: Approx. 125 lbs

  • Mounting Height: Bottom bracket minimum 21" above floor

MSC-1000 Mechanical Strut Compressor Special Features

  • Meets ASME standards for portable automotive service equipment

  • Mechanical compression system with locking support plate

  • Wall-mounted for maximum stability and safety

  • Built-in safety cage to protect technicians during compression

  • Adjustable hooks and support plate for flexible setup

  • Tool tray included for storage of unused components

  • Diamond plate kit available for oversized or irregular springs

  • Daily and monthly maintenance instructions provided

  • Backed by QSP’s 12-month warranty with parts support

  • Backed by QSP’s technical support and 12-month warranty

QSP MSC-1000 Manual

QSP MSC-1000 Operations Instruction   QSP MSC-1000 Operations Instruction
