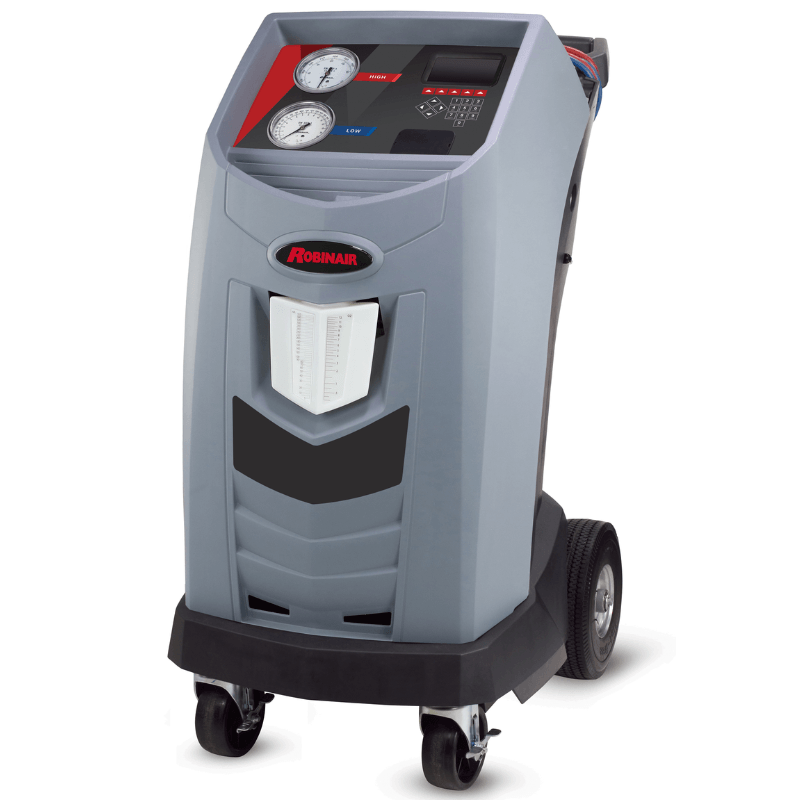

Robinair 34788NI-H Premier R-134a Recovery & Recharge Machine

34788NI-H Premier R-134a Recovery & Recharge Machine For Hybrid and Non-Hybrid Vehicles

Servicing A/C systems on standard, hybrid, and electric vehicles requires equipment that can handle different system requirements efficiently. The Robinair 34788NI-H Premier R-134a Recovery & Recharge Machine provides fully automatic recovery, recycling, evacuation, leak testing, and recharging with 98.5% recovery efficiency.

Manual service procedures can require frequent monitoring of valves, refrigerant levels, and system conditions. The 34788NI-H automates recovery, vacuum, leak testing, refrigerant refill, automatic air purge, and oil draining. It also provides A/C system flushing capability and can service high-voltage electric compressor A/C systems. A multilingual graphical display, visual and audible alerts, and refrigerant management system help simplify daily service operations.

Built for professional automotive shops, the machine features a 1.5 CFM dual-stage vacuum pump, 3/8 hp compressor, 30 lb. DOT internal cylinder, and 9 ft. service hoses. Optional accessories add printing, refrigerant and oil capacity information, Wi-Fi and Bluetooth connectivity, VIN and vehicle data, and Bluetooth temperature readings. The 34788NI-H is SAE J2788 certified and backed by a one-year warranty.

A/C Machine 34788NI Specifications

• Brand: Robinair
• Model: 34788NI-H
• Product Type: R-134a Recovery, Recycling & Recharging Machine
• Vehicle Compatibility: Hybrid, Non-Hybrid, and Electric Vehicles
• Refrigerant: R-134a
• Recovery Efficiency: 98.5%
• Operating Range: 32°–120°F
• Voltage: 125 VAC, 60 Hz
• Recovery Performance: >95% at 70°–75°F in less than 30 minutes
• Charge Accuracy: ±0.5 oz at 70°–75°F
• Display: 5 cm x 9 cm graphical display
• Filter-Drier Capacity: 150 lbs., spin-on type
• Hose Length: 9 ft.
• Weight: Approximately 230 lbs.
• Compressor: 3/8 hp, pressure-protected, oiled, hermetically sealed
• Dimensions: 48.5" H x 24" W x 36" D
• Vacuum Pump: 1.5 CFM dual-stage, 29.9 inHg
• Internal Cylinder: 30 lb. DOT; 22 lb. capacity
• Languages: English, French, Spanish, Portuguese
• Certification: SAE J2788
• UPC: 637335043862
• Warranty: 1 Year

34788NI A/C Machine Special Features

• Fully automatic R-134a A/C service
• 98.5% refrigerant recovery efficiency
• Recovers, recycles, evacuates, leak-tests, and recharges R-134a
• Designed for hybrid and non-hybrid vehicles
• Capable of servicing high-voltage electric compressor A/C systems
• A/C system flushing function
• Automatic oil drain
• Automatic refrigerant refill
• Automatic air purge
• Vacuum leak testing
• Programmable vacuum time from 15 to 99 minutes
• High-side, low-side, or both-side charging
• Refrigerant management system
• Filter-life monitoring
• Visual and audible service alerts
• Multilingual graphical display
• Before-and-after service data storage
• Optional printing capability
• Optional refrigerant and oil capacity database
• Optional Wi-Fi and Bluetooth connectivity
• Compatible with Bluetooth temperature probes
• 1.5 CFM dual-stage vacuum pump
• 3/8 hp pressure-protected compressor
• 9 ft. service hoses
• SAE J2788 certified

Robinair 34788NI-H Manuals

  Robinair 34788NI-H Instruction and Operations Manual

  AC Machine Comparison and Accessories Flier

  Robinair R-1234yf Flier

  Robinair R-1234yf and R-134a AC Machines Comparison

   New Connected ACS Machines Information and Accessories

  Connected Machine Software Update Instructions

  Vacuum Pump Oil Safety Data Sheet
