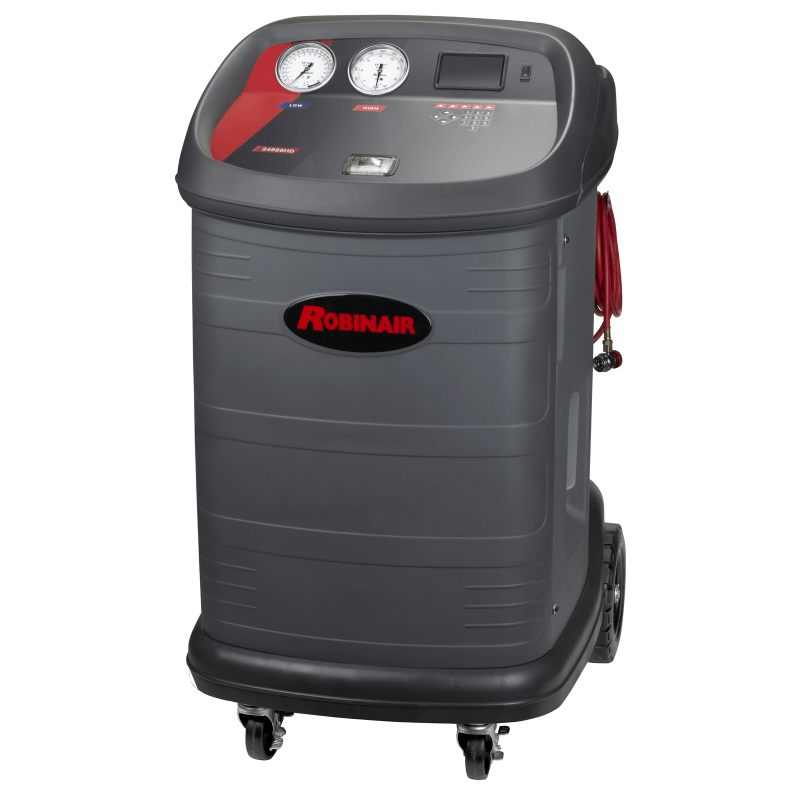

Robinair 34888HD Advance Heavy-Duty R-134a Recovery & Recharge Machine

34888HD Advance Heavy-Duty R-134a Recovery & Recharge Machine

Servicing large mobile A/C systems requires equipment with enough capacity and performance to handle higher refrigerant volumes. The Robinair 34888HD Advance Heavy-Duty R-134a Recovery & Recharge Machine recovers, recycles, evacuates, leak-tests, and recharges R-134a with 98.5% efficiency for both small and large mobile A/C systems.

Standard A/C service equipment may not provide the capacity needed for larger systems commonly found in buses and other heavy-duty vehicles. The 34888HD features a removable large-capacity tank, liquid pump, and 5.0 CFM dual-stage vacuum pump to support demanding service applications. Its nitrogen port allows technicians to use nitrogen for A/C system drying and leak testing, while fully automatic operation handles recovery, evacuation, leak testing, charging, and oil drain/injection.

Built for heavy-duty mobile A/C service, the machine includes an 18 ft. hose set, 50 lb. DOT R-134a external cylinder, 300 lb. filter-drier, and 3/8 hp compressor. The graphical display provides multilingual operation, while an optional printer can capture and retain vehicle service data. The 34888HD is SAE J2788 certified and backed by a one-year warranty.

A/C Machine 34888HD Specifications

• Brand: Robinair
• Model: 34888HD
• Product Type: Heavy-Duty R-134a Recovery, Recycling & Recharging Machine
• Refrigerant: R-134a
• Recovery Efficiency: 98.5%
• Operating Temperature: 32°–120°F
• Voltage: 125 VAC, 60 Hz
• Recovery Performance: >95% at 70°–75°F in less than 30 minutes
• Charge Accuracy: ±0.5 oz at 70°–75°F
• Display: 5 cm x 9 cm graphical display
• Filter-Drier Capacity: 300 lbs. (136 kg), spin-on type
• Hose Length: 18 ft. (5.5 m)
• Weight: Approximately 295 lbs. (133 kg)
• Compressor: 3/8 hp, pressure-protected, oiled, hermetically sealed
• Dimensions: 49" H x 28" W x 39" D
• Vacuum Pump: 5.0 CFM dual-stage, 29.9 inHg
• External Cylinder: 50 lb. DOT R-134a-labeled; 40 lb. capacity
• Languages: English, French, Spanish
• Certification: SAE J2788
• UPC: 637335046054
• Warranty: 1 Year

34888HD A/C Machine Special Features

• 98.5% R-134a recovery efficiency
• Recovers, recycles, evacuates, leak-tests, and recharges R-134a
• Designed for small and large mobile A/C systems
• Fully automatic operation
• Large-capacity removable tank
• Liquid pump for larger A/C systems
• Nitrogen port for system drying and leak testing
• Automatic oil drain and injection
• 5.0 CFM dual-stage vacuum pump
• 18 ft. service hoses
• 300 lb. spin-on filter-drier
• 50 lb. DOT R-134a external cylinder
• 40 lb. refrigerant capacity
• 3/8 hp pressure-protected compressor
• Graphical multilingual display
• Optional printer for vehicle service data
• SAE J2788 certified

Included

• 34888HD Recovery, Recycling & Recharge Machine
• 50 lb. R-134a DOT Refrigerant Tank
• Operator's Manual
• Service Center Listing Sheet
• Vacuum Pump Oil SDS Sheet
• Compressor Oil SDS Sheet
• EPA Registration Sheet
• Mobile Vehicle A/C Equipment Certification Form
• Scale Calibration Weight

Robinair 34888HD Manuals

  Robinair 34888HD Instruction and Operations Manual

  Robinair 34888HD Brochure

  AC Machine Comparison and Accessories Flier

  Vacuum Pump Oil Safety Data Sheet
