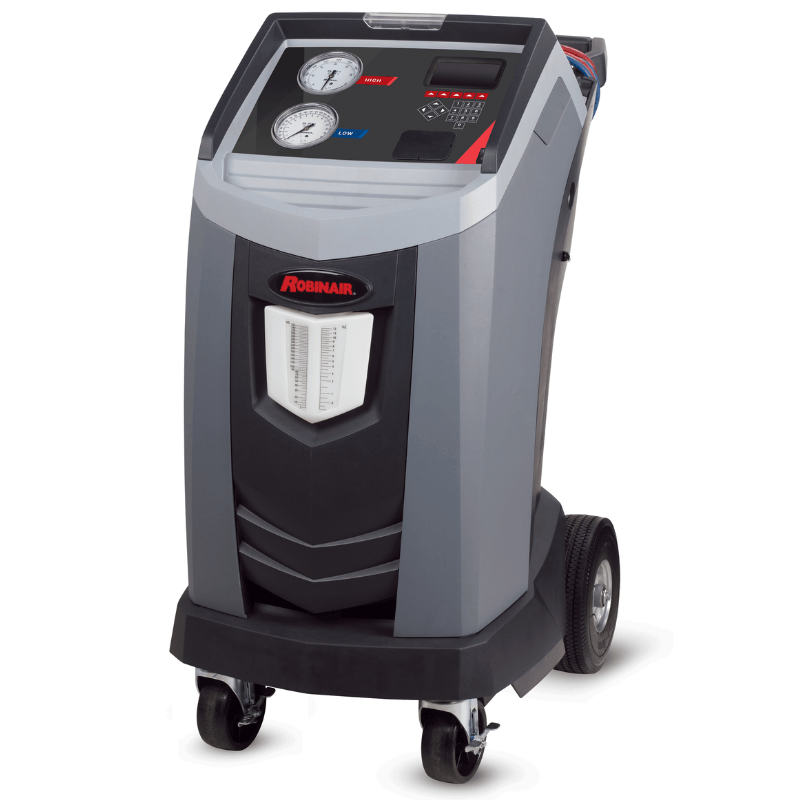

Robinair AC1234-4 Premier R-1234yf Recovery, Recycle & Recharge Machine

AC1234-4 Premier R-1234yf Recovery, Recycle & Recharge Machine

Servicing R-1234yf A/C systems requires accurate refrigerant handling and equipment that can meet current recovery standards. The Robinair AC1234-4 Premier R-1234yf Recovery, Recycle & Recharge Machine provides fully automatic operation with 98.5% recovery efficiency and is designed to service both standard and high-voltage vehicle A/C systems.

Manual service can require frequent monitoring of refrigerant levels, oil removal, and system conditions. The AC1234-4 automates refrigerant recovery, internal tank refill, oil drain, air purge, vacuum operation, and system leak testing. Its integrated refrigerant identifier samples the vehicle's refrigerant before recovery, while the liquid refrigerant flushing function can flush A/C systems or individual components without harsh chemicals.

Built for professional automotive A/C service, the machine provides charge accuracy within ±0.5 oz., a 1.5 CFM vacuum pump, 30 lb. DOT internal cylinder, and 9 ft. SAE J2886 service hoses. It meets and exceeds SAE J2843 requirements and includes an integrated identifier meeting SAE J2927. Optional accessories provide printing, Wi-Fi and Bluetooth connectivity, vehicle capacity information, and Bluetooth temperature readings.

A/C Machine AC1234-4 Premier Specifications

• Brand: Robinair
• Model: AC1234-4
• Product Type: R-1234yf Recovery, Recycling & Recharging Machine
• Refrigerant: R-1234yf
• Recovery Efficiency: 98.5%
• Dimensions: 42.1" H x 22" W x 31.5" D
• Display: 5 x 9 cm graphical LCD, 4.3" diagonal
• Filter Life: 330 lbs.
• Gauges: 3.9" diameter
• Maximum Pressure: 450 PSI
• Noise Level: <70 dB(A)
• Voltage: 115 VAC, 60 Hz
• Oil Bottle Capacity: 12 oz.
• Operating Temperature: 50°–122°F
• Power Consumption: 1,380 VA
• Vacuum Pump: 1.5 CFM at 60 Hz
• Service Hoses: 9 ft., SAE J2886
• Internal Cylinder: 30 lb. DOT; 21 lb. capacity
• Weight: 176 lbs.
• UPC: 637335045880
• Warranty: 1 Year

AC1234-4 Premier A/C Machine Special Features

• Fully automatic R-1234yf A/C service
• 98.5% refrigerant recovery efficiency
• Charge accuracy within ±0.5 oz.
• Services standard and high-voltage vehicle A/C systems
• Integrated refrigerant identifier
• Refrigerant identification before recovery
• Automatic internal tank refill
• Automatic oil drain
• Automatic air purge
• Programmable vacuum operation
• System leak testing
• Liquid refrigerant flushing function
• Meets and exceeds SAE J2843 requirements
• Integrated identifier meets SAE J2927
• 1.5 CFM vacuum pump
• 30 lb. DOT internal cylinder
• 21 lb. refrigerant capacity
• 9 ft. SAE J2886 service hoses
• Optional printer compatibility
• Optional Wi-Fi and Bluetooth connectivity
• Optional vehicle refrigerant and oil capacity database
• Compatible with Bluetooth temperature probes

Integrated Refrigerant Identifier Replacement Parts

• 16913: Filter
• 16916: Oxygen Sensor
• 16106: Sample Hose Assembly

Included

• AC1234-4 Recovery, Recycle & Recharge Machine
• Operating Instructions
• Scale Calibration Check Weight
• Service Center Listing Sheet
• Vacuum Pump Oil with Global Compliant SDS Sheet
• Compressor Oil Global Compliant SDS Sheet
• EPA Registration Sheet/Envelope
• MACS 609 Certification Information Sheet
• Mobile Vehicle A/C Equipment Certification Form

Robinair AC1234-4 Manuals

  Robinair AC1234-4 Premier Instructions and Operations Manual

  AC Machine Comparison and Accessories Flier

  Robinair R-1234yf Flier

  Robinair R-1234yf and R-134a AC Machines Comparison

  Vacuum Pump Oil Safety Data Sheet
