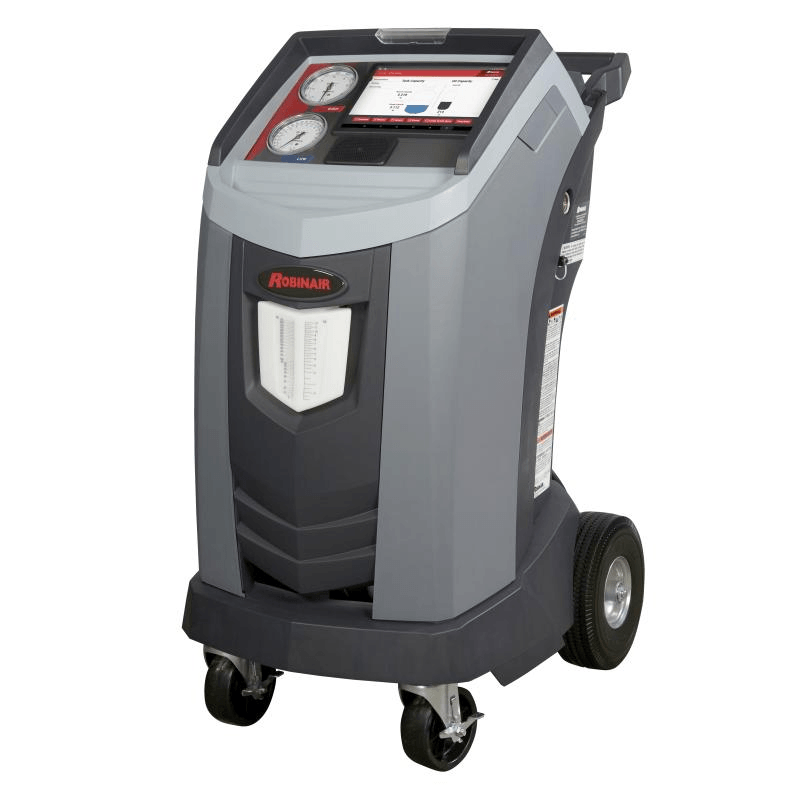

Robinair AC1234-9 Connected R-1234yf A/C Recovery Machine

AC1234-9 Connected R-1234yf A/C Recovery Machine

Servicing R-1234yf A/C systems requires equipment that can handle recovery, recycling, evacuation, leak testing, and recharging in one machine. The Robinair AC1234-9 Connected R-1234yf ACS Machine provides these functions with 98.5% refrigerant recovery efficiency and automated features designed to simplify routine A/C service.

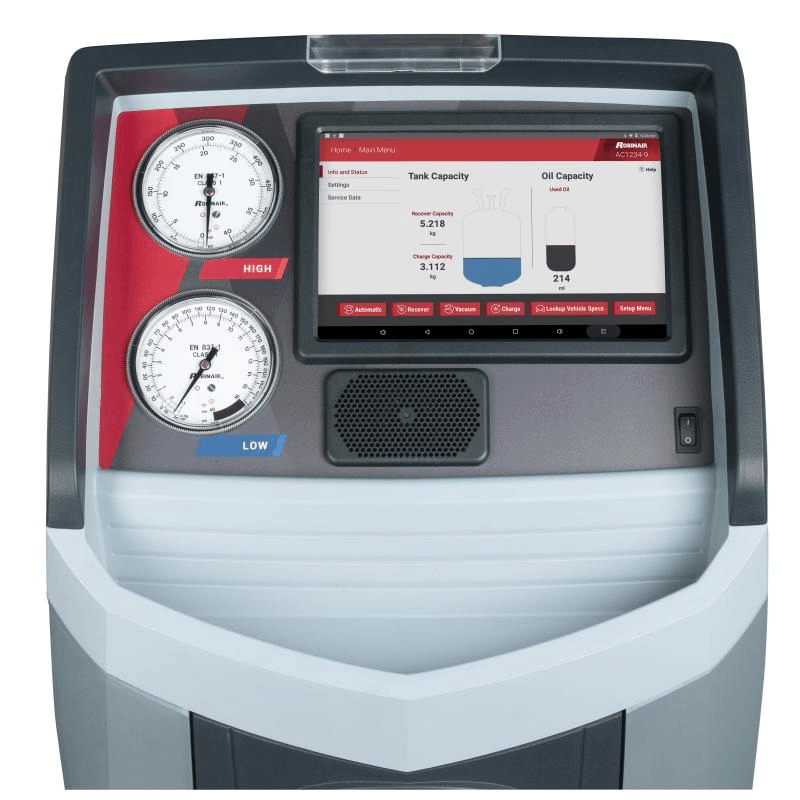

Manual service steps can take additional time and make consistent results more difficult. The AC1234-9 features a 10" capacitive touch LCD display, automatic internal refrigerant refill, automatic oil drain, and refrigerant identification. Its wireless Wi-Fi and Bluetooth connectivity supports software updates and optional refrigerant capacity database downloads, while Mopria wireless printing allows service reports to be printed for customers or insurance companies.

Designed for professional automotive A/C service, the machine operates with R-1234yf refrigerant and includes a 1.5 CFM dual-stage vacuum pump, 3/8 hp compressor, 30 lb. DOT internal cylinder, and 9 ft. hoses. With SAE J2843, J2927, and UL 1963 certifications, the AC1234-9 provides a complete solution for shops servicing R-1234yf systems.

A/C Recovery Machine AC1234-9 Specifications

• Brand: Robinair
• Model: AC1234-9
• Product Type: R-1234yf ACS Machine
• Refrigerant: R-1234yf
• Recovery Efficiency: 98.5%
• Recovery Performance: >95% at 70°–75°F in less than 30 minutes
• Charge Accuracy: ±0.5 oz at 70°–75°F
• Operating Temperature: 32°–120°F
• Voltage: 125 VAC, 60 Hz
• Display: 10" capacitive touch LCD
• Filter-Drier Capacity: 330 lbs. (150 kg), spin-on type
• Hose Length: 9 ft. (2.75 m)
• Compressor: 3/8 hp, pressure-protected, oiled, hermetically sealed
• Vacuum Pump: 1.5 CFM dual-stage, 29.9 inHg
• Internal Cylinder: 30 lb. DOT cylinder; 21 lb. capacity
• Languages: English, French, Spanish
• Connectivity: Wi-Fi and Bluetooth
• Certifications: SAE J2843, SAE J2927, UL 1963
• UPC: 637335047600
• Warranty: 1 Year

AC1234-9 A/C Recovery Machine Special Features

• Recovers, recycles, evacuates, leak-tests, and recharges R-1234yf
• 98.5% refrigerant recovery efficiency
• Large 10" capacitive touch LCD display
• Automatic internal refrigerant refill
• Automatic oil drain
• Automatic refrigerant identification
• Wi-Fi and Bluetooth connectivity
• Wireless machine software updates
• Optional refrigerant capacity database downloads
• Mopria wireless printing for A/C service reports
• Android operating system with service report export capability
• 1.5 CFM dual-stage vacuum pump
• 3/8 hp pressure-protected compressor
• 9 ft. service hoses
• 30 lb. DOT internal cylinder
• SAE J2843, J2927, and UL 1963 certified

Included

• AC1234-9 R-1234yf ACS Machine
• Calibration check weight
• Tank fill hose adapter
• User manual
• Extended maintenance flyer
• Service Center Locations listing sheet
• MACs 609 Certification Informational flyer
• MVAC Equipment Certification form
• SDS Sheet – Vacuum Pump Oil
• SDS Sheet – POE Compressor Oil

Robinair AC1234-9 Manuals

  Robinair AC1234-9 Instruction and Operations Manual

  AC Machine Comparison and Accessories Flier

  Robinair R-1234yf Flier

  Robinair R-1234yf and R-134a AC Machines Comparison

   New Connected ACS Machines Information and Accessories

  Connected Machine Software Update Instructions

  Vacuum Pump Oil Safety Data Sheet
