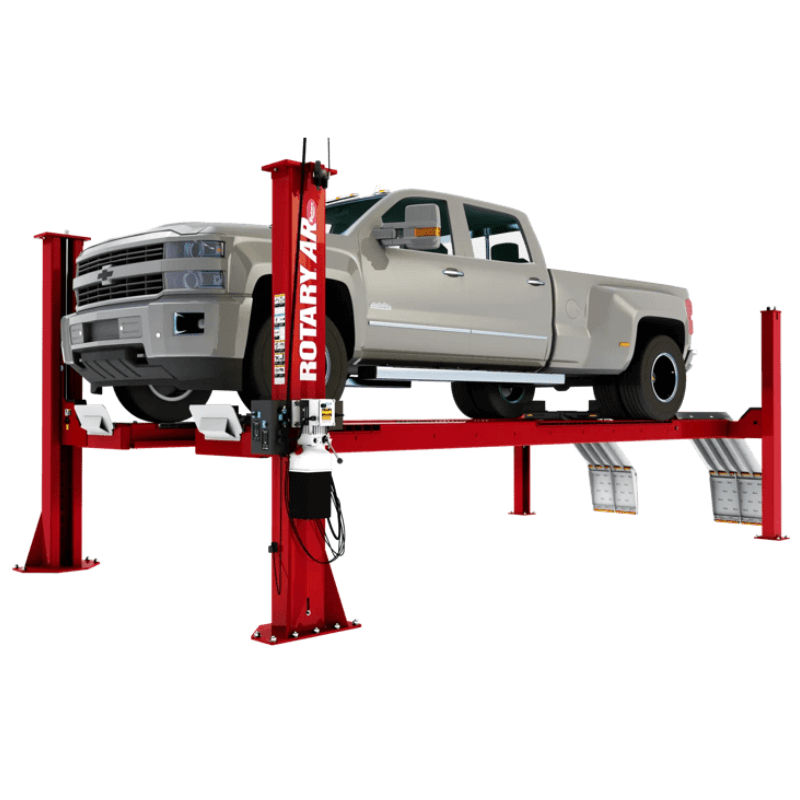

Rotary ARO16 16,000 Lb Aligment Lift - Open Front; Includes Jacks/Turnplates

Rotary ARO16 Four-Post Open-Front Drive-On Alignment Lift – 16,000 lb Capacity

The Rotary ARO16 is a high-performance four-post open-front alignment lift engineered to deliver professional-grade alignment capability with exceptional efficiency. Designed to support both two-wheel and four-wheel alignments on a single lift, the ARO16 allows shops to expand service capabilities without adding extra equipment. Its 16,000 lb lifting capacity makes it well-suited for cars, trucks, vans, and a wide range of commercial vehicles.

Built with productivity in mind, the open-front drive-on design provides unrestricted technician access while maintaining precise vehicle positioning for accurate alignments. Integrated efficiency-enhancing technology helps reduce maintenance requirements and operating costs, allowing shops to complete more alignment jobs faster and with greater consistency.

Ideal for high-volume service centers and alignment-focused shops, the Rotary ARO16 combines versatility, safety, and long-term durability. With included adapter extensions and Rotary’s patented safety systems, this lift is a dependable solution for shops looking to maximize uptime, accuracy, and return on investment.

4 Post  Lift ARO16 Specifications

• Lift Type: Four-Post Open-Front Drive-On Alignment Lift

• Lifting Capacity: 16,000 lbs

• Rise Height: 79"

• Overall Width:

  • L Model: 140"

  • EL Model (with ramps): 290 1/8"

• Overall Length:

  • L Model: 195"

  • EL Model: 268" – 291"

• Ramp Length: 41"

• Runway Platform Width: 26"

• Minimum Runway Height: 8"

• Width Between Runways: 40"

• Width Between Columns: 117"

• Overall Height: 107 1/2"

• Minimum Bay Size:

  • L Model: 180" × 312"

  • EL Model: 180" × 336"

• Motor / Voltage: 208–230V

• Time of Full Rise: 70 seconds

ARO16 16,000 Lbs. Four-Post Lift Special Features

• 16,000 lb capacity supports a wide range of vehicles

• Open-front design for unobstructed technician access

• Drive-on configuration ideal for fast, accurate alignments

• Performs both two-wheel and four-wheel alignments on one lift

• Includes:

  • 7k Rolling Jack
  • 9k Rolling Jack
  • LED Lighting
  • Airline Kit
  • Stainless Steel Turn Tables

• Includes adjustable round, truck, and stackable adapter extensions

• Dual-Function Sentinel Lock™ system for enhanced operational safety

• Designed to reduce maintenance needs and improve shop efficiency

• Warranty
  • 5 Years Structural
  • 1 Year Labor
  • 1 year Functional Parts (power, cylinders, cables, etc)
