Rotary ARO22 22,000lb Alignment Lift - Open Front

ARO22 22,000 Alignment Rack

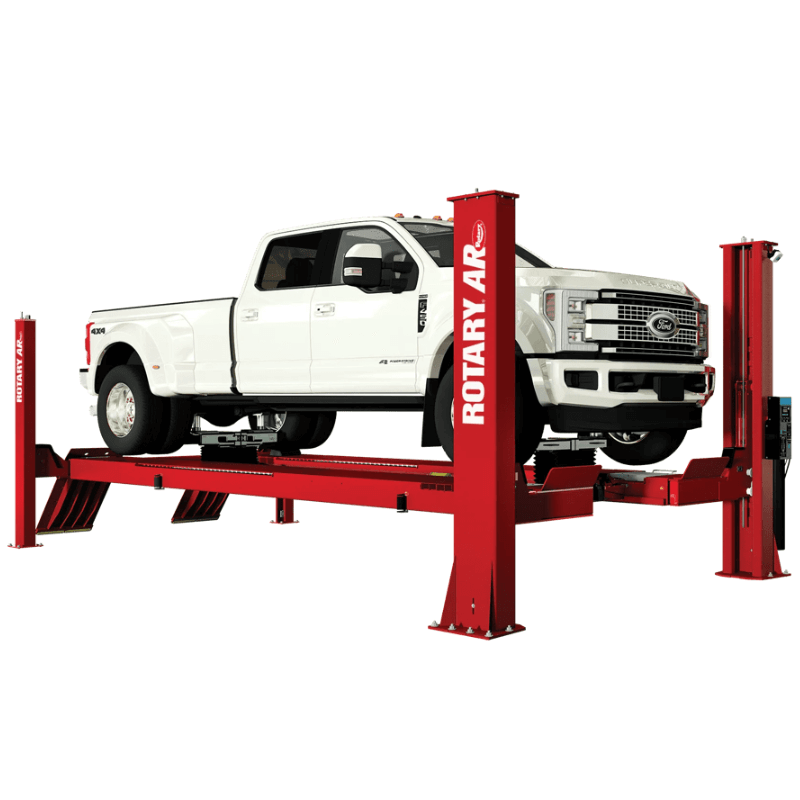

The Rotary ARO22 is a heavy-duty, open-front four-post alignment lift engineered to deliver maximum flexibility, accuracy, and productivity in high-demand service environments. With a robust 22,000 lb lifting capacity, this drive-on alignment rack is built to service a wide range of vehicles—from passenger cars to commercial trucks—while supporting both two-wheel and four-wheel alignment applications.

Designed for long-term performance, the ARO22 features a single-piece, non-welded runway construction that enhances structural strength while reducing corrosion and wear over time. Its open-front design removes obstructions beneath the vehicle, allowing technicians to move freely with carts, drain pans, and tools. Integrated air-locking rear slip plates, LED lighting, and an articulated roller system further improve efficiency and accuracy during alignment procedures.

The Rotary ARO22 is an ideal solution for professional automotive repair shops, fleet service centers, dealerships, and alignment specialists seeking a versatile, high-capacity alignment lift. Compatible with all Rotary alignment systems and modern alignment technology, this lift is built to maximize uptime, streamline workflow, and support a broad range of service demands in commercial shop environments.

ARO 22 Specifications

Model S

• Max. Wheelbase: 194″

• Max. Two Wheel Alignment: 179″

• Min./Max. 4 Wheel Alignment: 63″ – 165″

• Rise / Floor to Top of Runway: 74″

• Length Overall: 272 3/4″

• Width Overall: 143 7/8″

• Height Overall: 107 3/8″

• Length Between Columns: 119 3/4″

• Width of Runways: 26″

• Height of Runways: 8 5/16″

• Width Between Runways (Min./Max.): 40″

• Lift Capacity: 22,000 lbs.

• Motor: 4 HP / 208–230V

• Voltage (Single Phase): 208V–230V

• Ramp Length: 40 3/16″

• Time of Full Rise: 115 seconds

• Minimum Bay Size: 180″ x 324″ (15′ x 27′)

Model E

• Max. Wheelbase: 230″

• Max. Two Wheel Alignment: 215″

• Min./Max. 4 Wheel Alignment: 82″ – 165″

• Rise / Floor to Top of Runway: 74″

• Length Overall: 308 3/4″

• Width Overall: 147 7/8″

• Height Overall: 107 3/8″

• Length Between Columns: 128 1/2″

• Width of Runways: 26″

• Height of Runways: 8 5/16″

• Width Between Runways (Min./Max.): 40″

• Lift Capacity: 22,000 lbs.

• Motor: 4 HP / 208–230V

• Voltage (Single Phase): 208V–230V

• Ramp Length: 40 3/16″

• Time of Full Rise: 115 seconds

• Minimum Bay Size: 180″ x 360″ (15′ x 30′)

ARO22 22,000 Lbs. Four-Post HD Open Front Lift Special Features

• Heavy-duty 22,000 lb capacity for cars and commercial vehicles

• Open-front design for unobstructed under-vehicle access

• Single-piece, non-welded runways for long service life and corrosion resistance

• Compatible with all Rotary wheel alignment systems

• Dual-Function Sentinel Lock™ for enhanced safety and cable management

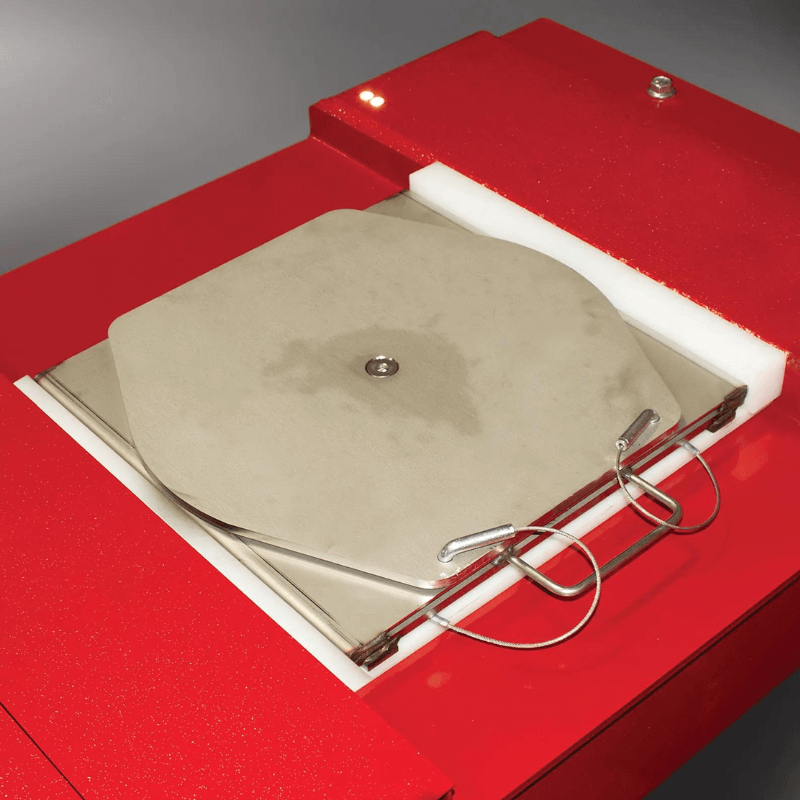

• Air-locking rear slip plates for precise alignment adjustments

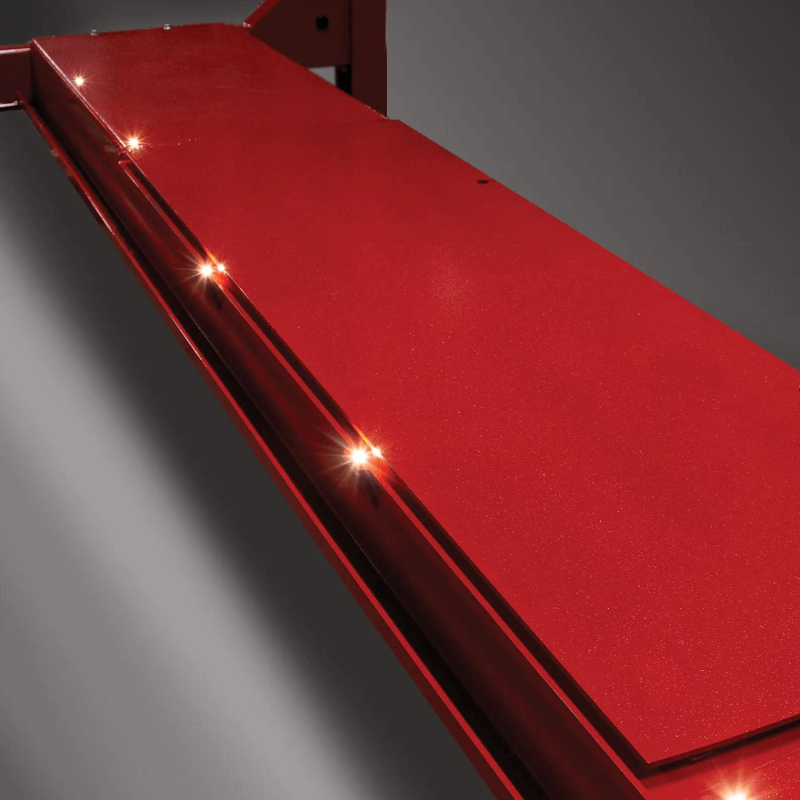

• Integrated LED lighting for improved visibility

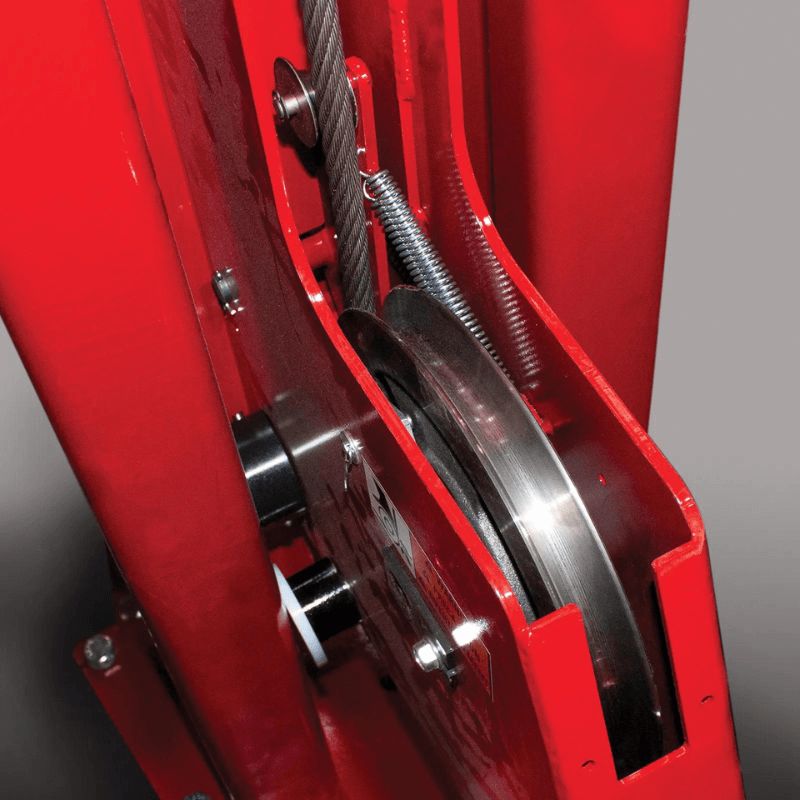

• Articulated roller system for smooth operation and reduced wear

• Warranty
  • 5 Years Structural
  • 1 Year Labor
  • 1 year Functional Parts (power, cylinders, cables, etc)
