Rotary LT35A Air-Hydraulic Lifting Table

LT35AAir Hydraulic Lifting

Handling heavy vehicle components like EV batteries without the right equipment can slow down your workflow and create safety challenges. Limited adjustability and unstable platforms make precise service more difficult and increase the risk during lifting operations.

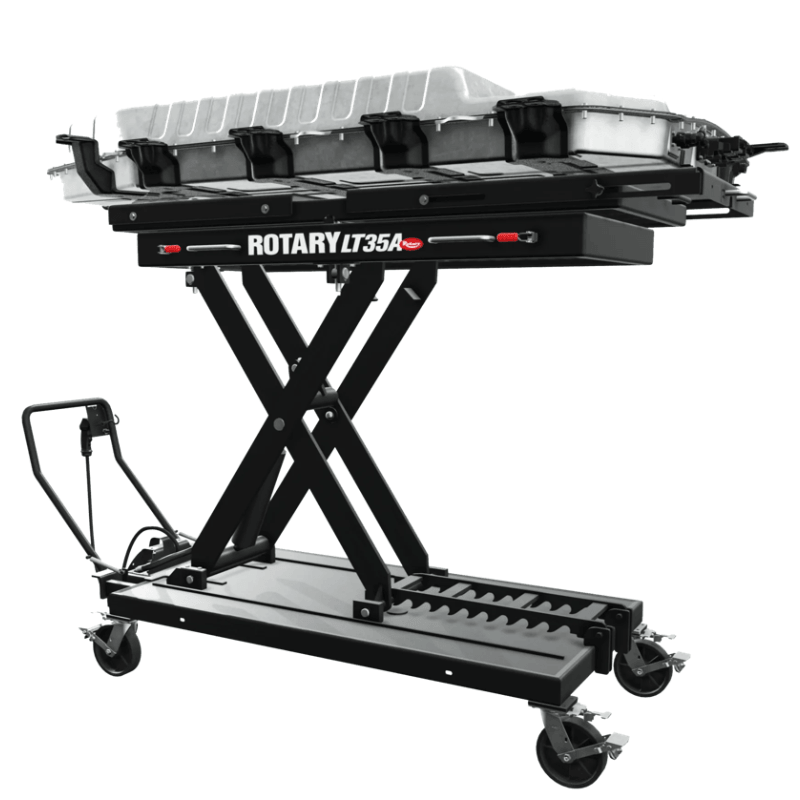

The Rotary LT35A eliminates these issues with a 3,500 lb capacity and an ultra-wide, highly stable base. Its pendant-controlled air-hydraulic system allows smooth, precise lifting, while the adjustable sliding deck with threaded mounting points expands your service capabilities beyond EVs. Built to meet strict safety standards and designed for future vehicle technologies, this lift table helps your shop work smarter, safer, and more efficiently.

Lifting Table LT35A Specification

• Lift Capacity: 3,500 lbs

• Maximum Rise Height (6″ casters): 67 3/8″

• Maximum Rise Height (8″ casters): 69 3/8″

• Collapsed Height (6″ casters): 26 1/4″

• Collapsed Height (8″ casters): 28 1/4″

• Overall Width: 36 1/4″

• Overall Length: 97 3/8″

• Deck Width: 31 7/8″

• Deck Length (Closed): 73 5/8″

• Deck Length (Open): 81 5/8″

• First Locking Position (6″ casters): 32″

• First Locking Position (8″ casters): 34″

• Air Requirements: 90–120 PSI

• Clearance (6″ casters): 4 3/4″

• Clearance (8″ casters): 6 3/4″

• Overall Weight: 1,300 lbs

LT35A Air-Hydraulic Lifting Table Special Features

• 3,500 lb capacity for heavy-duty component handling

• Air-hydraulic system for smooth, controlled lifting

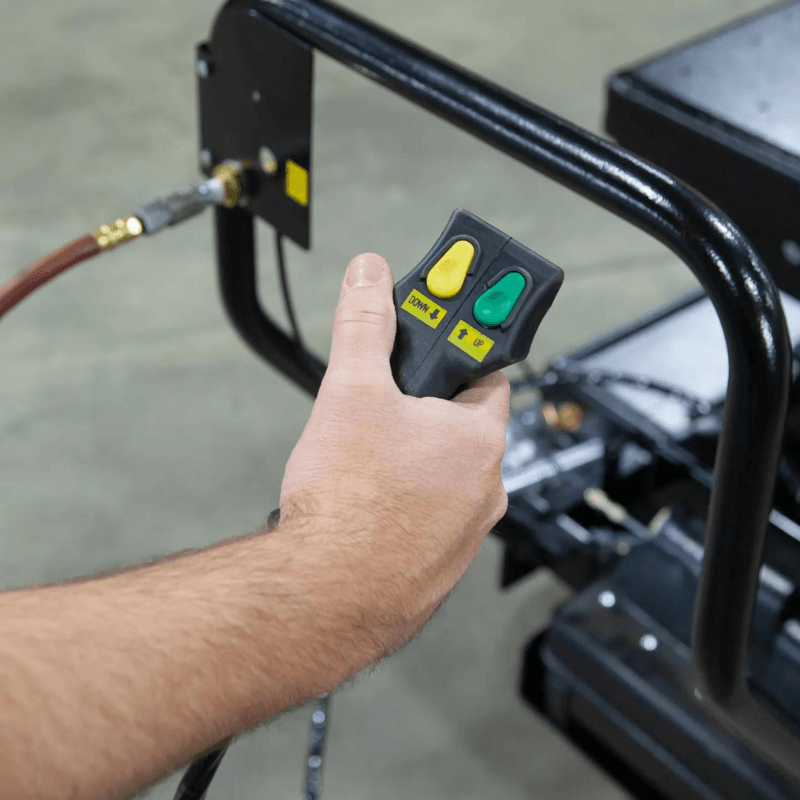

• Pendant control for precise operation

• Ultra-wide base for enhanced stability

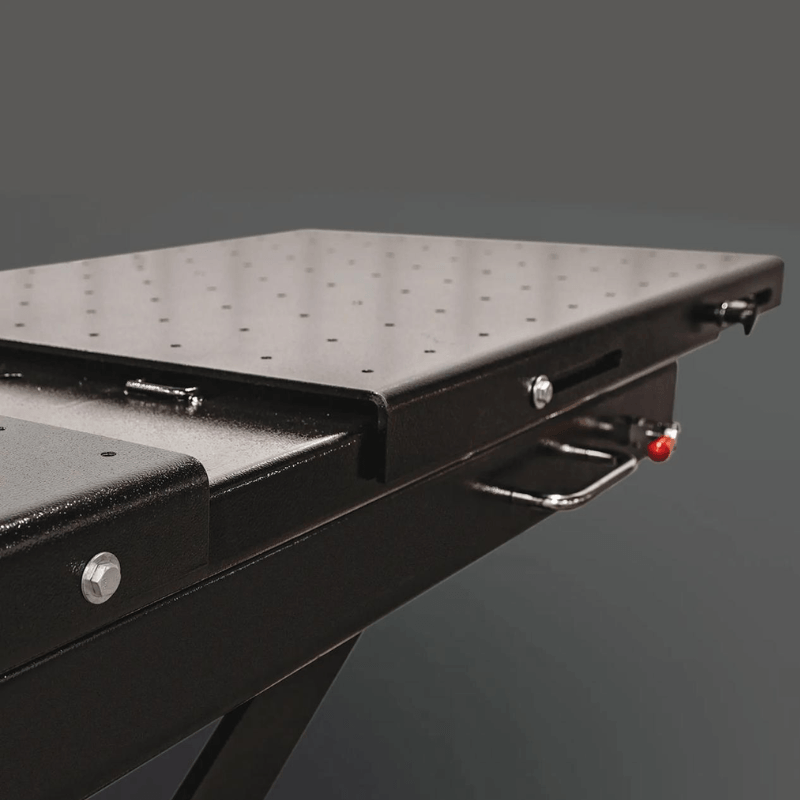

• Sliding deck with threaded mounting holes for versatility

• Designed for EV battery service and more

• Future-ready design for evolving vehicle technology

• Built to meet mobile lift safety standards

• Adjustable platform for multiple service applications

• Durable construction for long-term professional use
