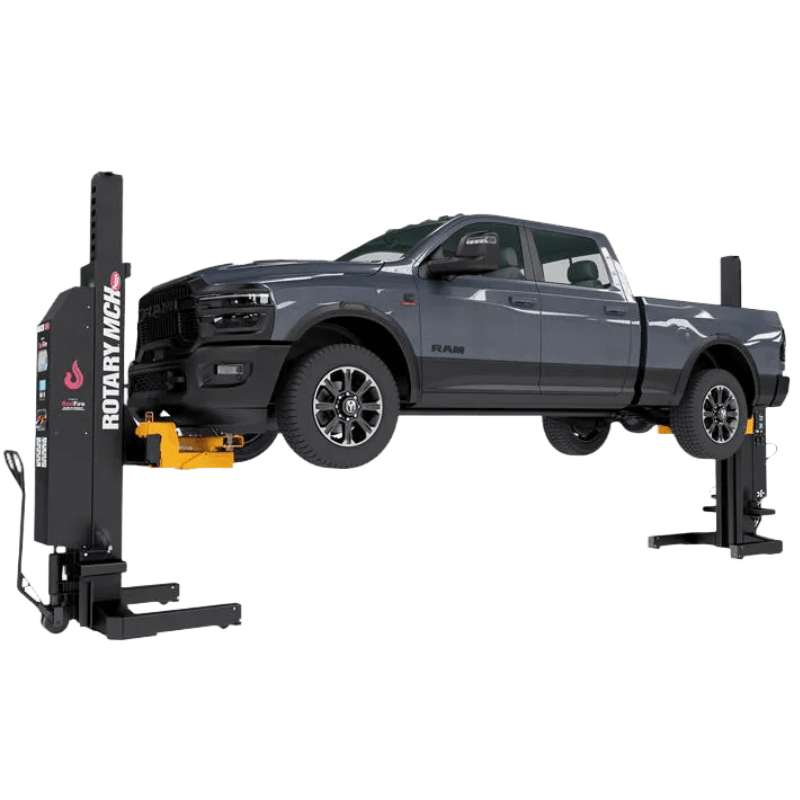

Rotary MCHM14 Wireless Mobile Column Lift - 14,000/Unit

Rotary 14,000lb Wireless Mobile Column Lifts

The Rotary MCHM14 Wireless Mobile Column Lift is a heavy-duty lifting solution built for commercial shops, fleet maintenance facilities, municipalities, transit operations, and other applications that need the flexibility to service large vehicles without a fixed in-ground or surface-mounted lift. Each column provides 14,000 lbs of lifting capacity, allowing a four-column system to handle up to 56,000 lbs while keeping the shop floor open and adaptable.

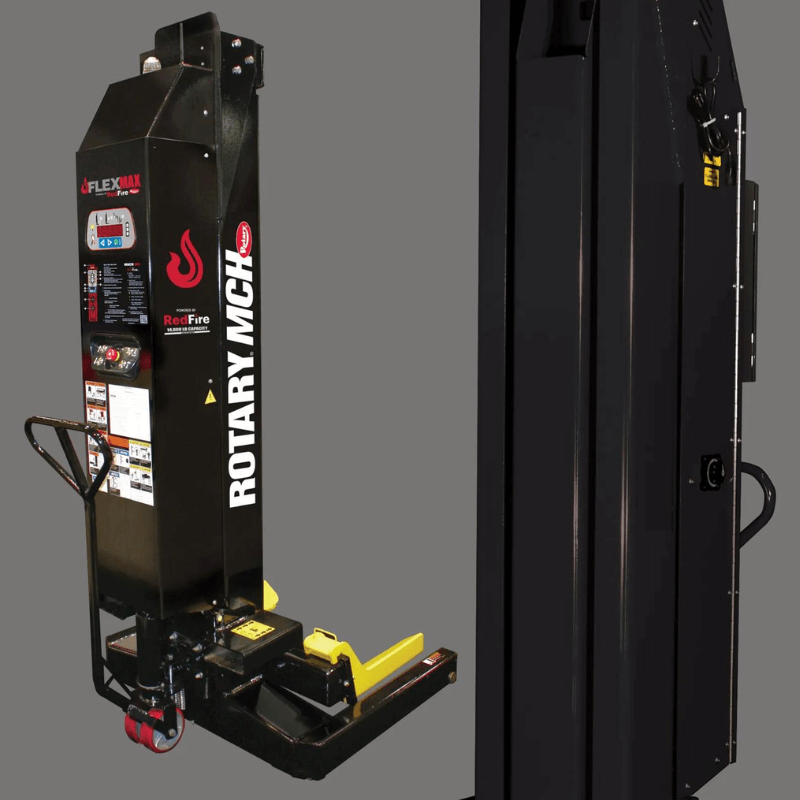

Using Rotary’s Flex MAX™ wireless mobile-column system, the MCHM14 is designed for synchronized lifting with Redfire® Technology and convenient wireless operation. Each column also includes its own operational controls, allowing technicians to work directly at the lift while maintaining precise control over the system. With no floor anchoring required, the columns can be repositioned throughout the shop as service needs change.

Mobile Column Lift MCHM14 Specifications

• Capacity per Column: 14,000 lbs

• Capacity (2 Columns): 28,000 lbs

• Capacity (4 Columns): 56,000 lbs

• Maximum Rise: 69″ (1760 mm)

• Speed of Rise: 68 seconds

• Column Width: 43″ (1092 mm)

• Clearance (Fork to Column): 10″ (254 mm)

• Adjustable Rim Size Range: 9″ – 24″

• Charging Voltage: 110V charger (2.5 amps max)

MCHM14 56,000 Lbs. Wireless Mobile-Column Lift Special Features

• Flex MAX™ wireless mobile-column lifting system

• Redfire® Technology for synchronized, stable lifting

• Wireless handheld remote for convenient operation

• Single operational controls at each column


• Adjustable forks for a wide range of wheel sizes

• On-board chargers integrated into every column

• No floor anchoring required for maximum mobility

• Designed for heavy-duty commercial and fleet vehicles

• Warranty
  • 1 Year Structural
  • 1 Year Labor
  • 1 year Functional Parts (power, cylinders, cables, etc)

Rotary MCHM14 Manual

  Rotary MCHM14 Brochure

  Rotary MCHM14 Spec Sheet
