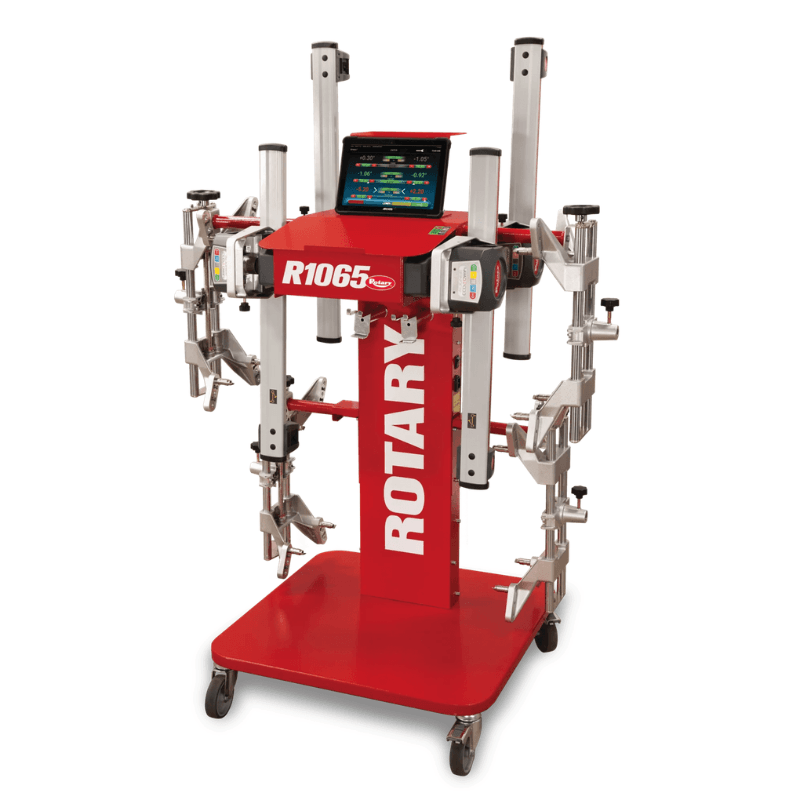

Rotary R1065 Mobile Tablet Alignment System

R1065 Mobile Wheel Alignment System

Limited space and bulky alignment equipment can make it difficult to maximize your shop’s efficiency. Traditional systems often require dedicated bays and restrict technician movement, slowing down diagnostics and adjustments.

The Rotary R1065 eliminates these limitations with a fully wireless, mobile tablet-based alignment system that works in any bay. With no minimum space requirements, technicians can move freely while capturing real-time data and making adjustments on the spot. Featuring fast setup, all-day battery life, and the ability to print or email professional reports, the R1065 helps your shop increase productivity, improve accuracy, and deliver a better customer experience.

Alignment System R1065 Specification

Front Axle Measurements

• Total Toe Accuracy: +/- 3′

• Total Toe Range: +/- 2° (Total Range: +/- 20°)

• Partial Toe Accuracy: +/- 1′ 30″

• Partial Toe Range: +/- 1° (Total Range: +/- 20°)

• Set-Back Accuracy: +/- 2′

• Set-Back Range: +/- 2° (Total Range: +/- 5°)

• Camber Accuracy: +/- 2′

• Camber Range: +/- 3° (Total Range: +/- 10°)

• Caster Accuracy: +/- 5′

• Caster Range: +/- 10° (Total Range: +/- 18°)

• King-Pin Accuracy: +/- 5′

• King-Pin Range: +/- 10° (Total Range: +/- 18°)

Rear Axle Measurements

• Total Toe Accuracy: +/- 3′

• Total Toe Range: +/- 2° (Total Range: +/- 20°)

• Partial Toe Accuracy: +/- 1′ 30″

• Partial Toe Range: +/- 1° (Total Range: +/- 20°)

• Set-Back Accuracy: +/- 2′

• Set-Back Range: +/- 2° (Total Range: +/- 5°)

• Camber Accuracy: +/- 2′

• Camber Range: +/- 3° (Total Range: +/- 10°)

• Thrust Angle Accuracy: +/- 2′

• Thrust Angle Range: +/- 2° (Total Range: +/- 5°)

General

• Power Supply: 110V / Single Phase / 60 Hz

• System Type: Mobile tablet alignment system

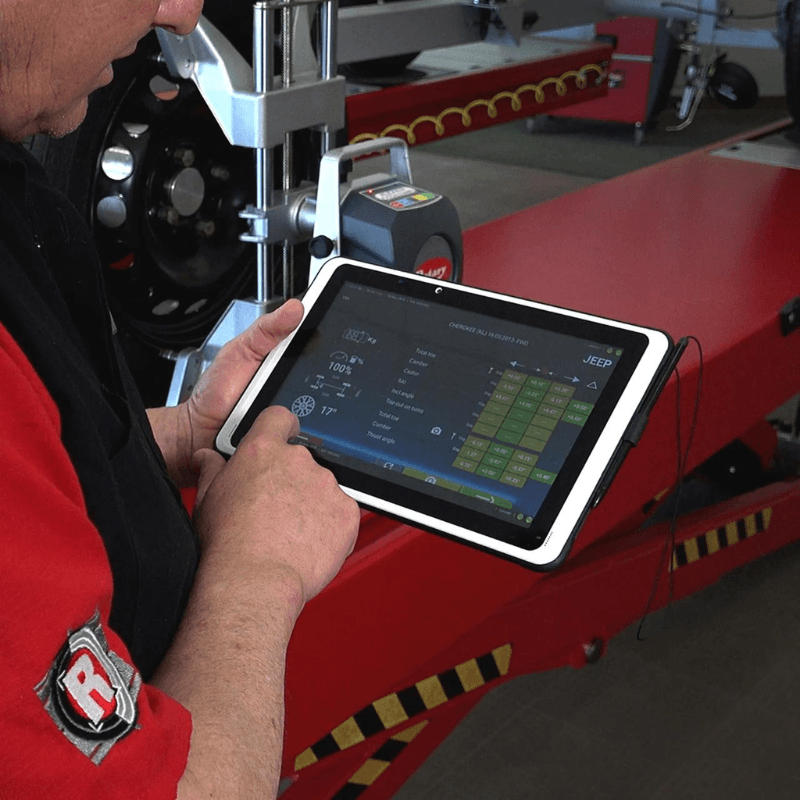

• Operation: Wireless tablet-controlled

R1065 Alignment System Special Features

• Fully wireless alignment system with total-drive capability

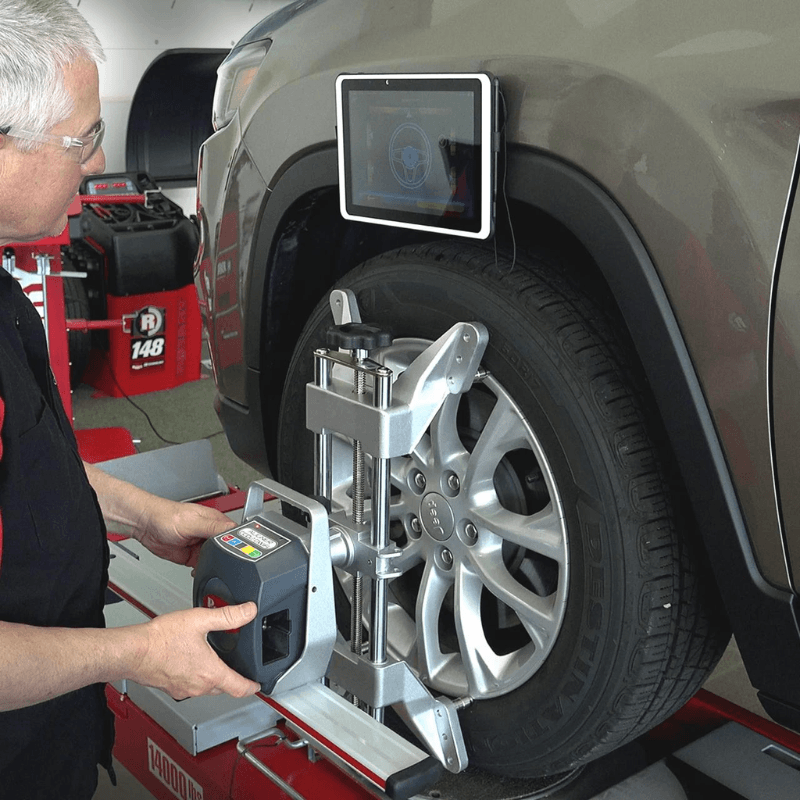

• Mobile tablet operation for flexibility across any bay

• No minimum bay size required

• Real-time data collection and adjustments

• Fast installation and setup for quick operation

• All-day battery life for uninterrupted workflow

• Print or email professional alignment reports

• Improves technician efficiency and shop productivity

• Eliminates need for dedicated alignment space

• Ideal for modern, high-efficiency automotive shops
