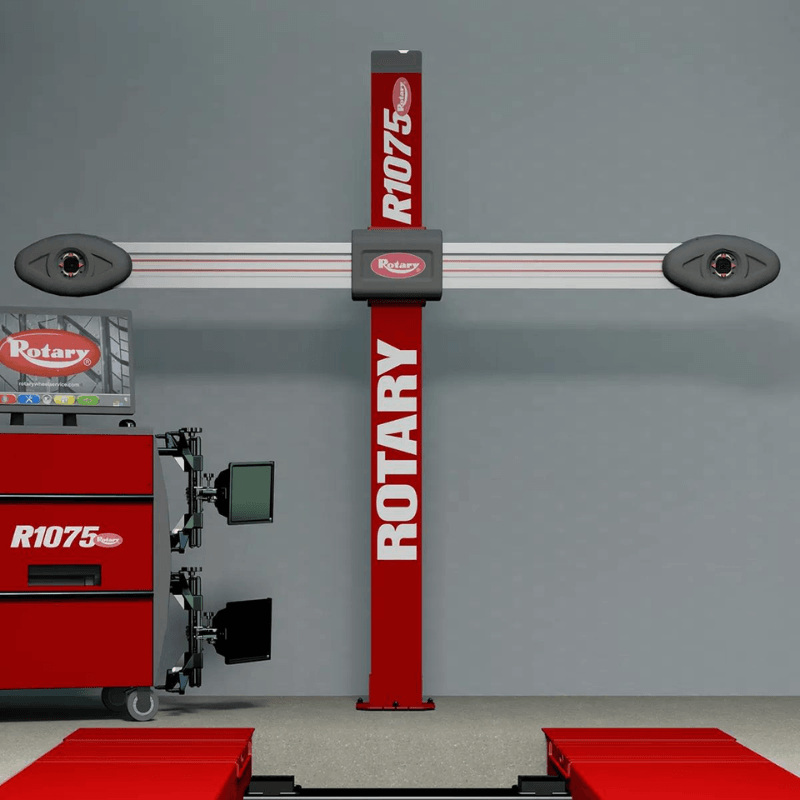

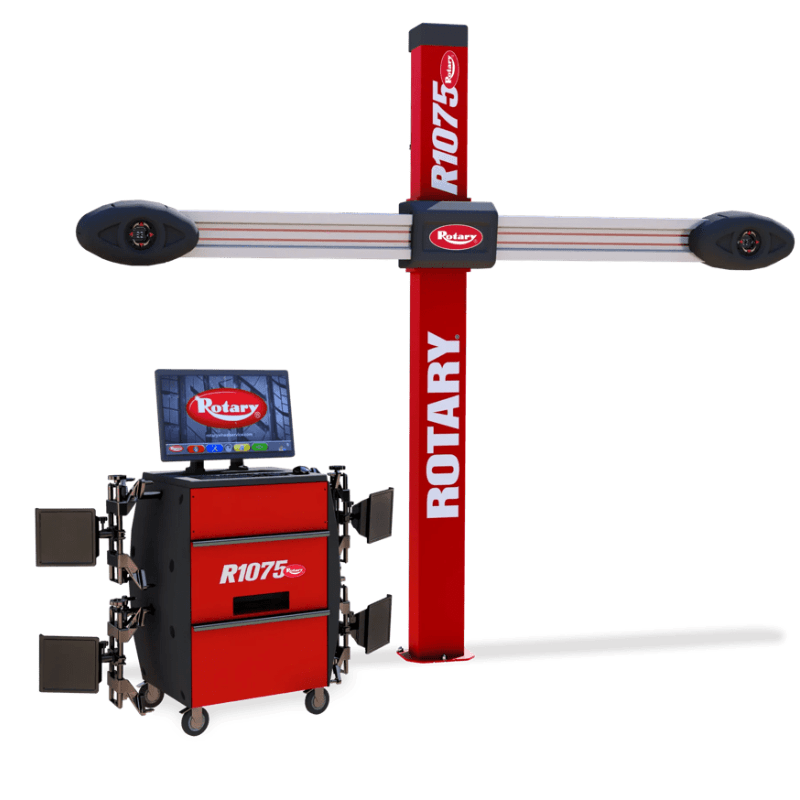

Rotary R1075 Wheel Alignment System - Tower Aligner

R1075 Wheel Alignment System Tower Aligner

Relying on outdated alignment equipment can lead to inaccurate readings, longer service times, and missed revenue opportunities. Systems that lack automation and connectivity can slow down your workflow and make diagnostics more complicated than necessary.

The Rotary R1075 Wheel Alignment System delivers the reliability of a traditional tower aligner with modern technology to improve efficiency and accuracy. Featuring auto-adjusting cameras, universal rack compatibility, and WiFi connectivity, this system simplifies alignments while enhancing precision. With optional VIN scanning and TeamViewer® remote support, the R1075 helps your shop streamline operations, reduce errors, and provide professional-grade alignment services with confidence.

Alignment System R1075 Specification

• Camber Accuracy: +/- 0.01°

• Camber Range: +/- 56°

• Caster Angle Accuracy: +/- 0.02°

• Caster Angle Range: +/- 32°

• KPI/SAI Accuracy: +/- 0.02°

• KPI/SAI Range: +/- 32°

• Toe Angle Accuracy: +/- 0.01°

• Toe Angle Range: +/- 42°

• Thrust Angle Accuracy: +/- 0.02°

• Thrust Angle Range: +/- 36°

• Setback Angle Accuracy: +/- 0.02°

• Setback Angle Range: +/- 36°

• Max Steering Angle Accuracy: +/- 0.02°

• Max Steering Angle Range: +/- 42°

• Wheel Track Accuracy: +/- 2.6 mm

• Wheel Track Range: up to 2650 mm

• Wheelbase Accuracy: +/- 2.6 mm

• Wheelbase Range: up to 1800 mm

• Power Supply: 110V / Single Phase / 60 Hz

R1075 Alignment System Special Features

• Traditional tower aligner design for familiar operation

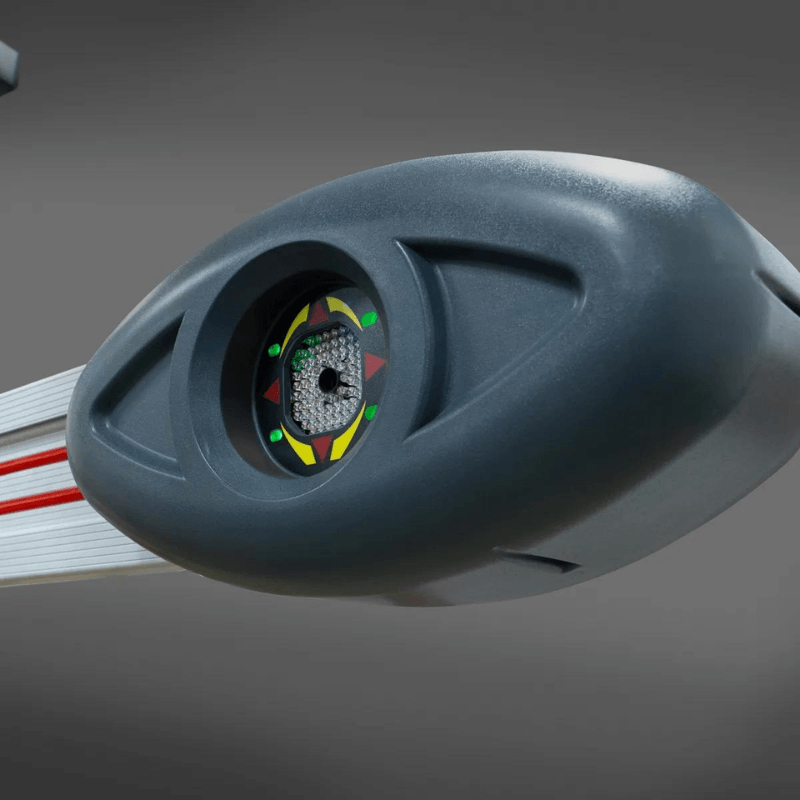

• Auto-adjusting cameras for improved accuracy and ease of use

• Universal rack compatibility for flexible installation

• WiFi-ready for printing and emailing alignment reports

• Optional cordless VIN scanner for faster vehicle identification

• TeamViewer® remote support for diagnostics and training

• High-precision measurement system for professional results

• Reduces manual input and improves workflow efficiency

• Built for reliability with Rotary’s trusted engineering

• Ideal for high-volume automotive service shops

Rotary R1075 Manual

  Rotary R1075 Spec Sheet
