Rotary R1090 Pro 3D Alignment System

R1090 Pro 3D Wheel Alignment System – Mobile

Dealing with bulky alignment systems that require dedicated space and limit your shop’s flexibility? Traditional tower-based systems can interrupt workflow, restrict lift movement, and increase operational costs.

The Rotary R1090 Pro 3D Alignment System eliminates these limitations with a fully mobile, towerless design that works in any bay with no minimum space requirements. Powered by Solid Vision Technology and Bluetooth connectivity, this Android tablet-operated system delivers fast, accurate readings in seconds. With quick battery swapping and uninterrupted signal performance, the R1090 helps your shop increase efficiency, reduce outsourcing, and keep more alignment profits in-house.

Alignment System R1090 Pro 3D Specification

Front Axle Measurements

• Total Toe Accuracy: +/- 2′

• Total Toe Range: +/- 2° (Total Range: +/- 20°)

• Partial Toe Accuracy: +/- 1′

• Partial Toe Range: +/- 1° (Total Range: +/- 20′)

• Set-Back Accuracy: +/- 2′

• Set-Back Range: +/- 2° (Total Range: +/- 5°)

• Camber Accuracy: +/- 2′

• Camber Range: +/- 3° (Total Range: +/- 10°)

• Caster Accuracy: +/- 5′

• Caster Range: +/- 10° (Total Range: +/- 18°)

• King-Pin Accuracy: +/- 5′

• King-Pin Range: +/- 10° (Total Range: +/- 18°)

Rear Axle Measurements

• Total Toe Accuracy: +/- 2′

• Total Toe Range: +/- 2° (Total Range: +/- 20°)

• Partial Toe Accuracy: +/- 1′

• Partial Toe Range: +/- 1° (Total Range: +/- 20°)

• Set-Back Accuracy: +/- 2′

• Set-Back Range: +/- 2° (Total Range: +/- 5°)

• Camber Accuracy: +/- 2′

• Camber Range: +/- 3° (Total Range: +/- 10°)

• Thrust Angle Accuracy: +/- 2′

• Thrust Angle Range: +/- 2° (Total Range: +/- 5°)

General

• Power Supply: 110V / Single Phase / 60 Hz

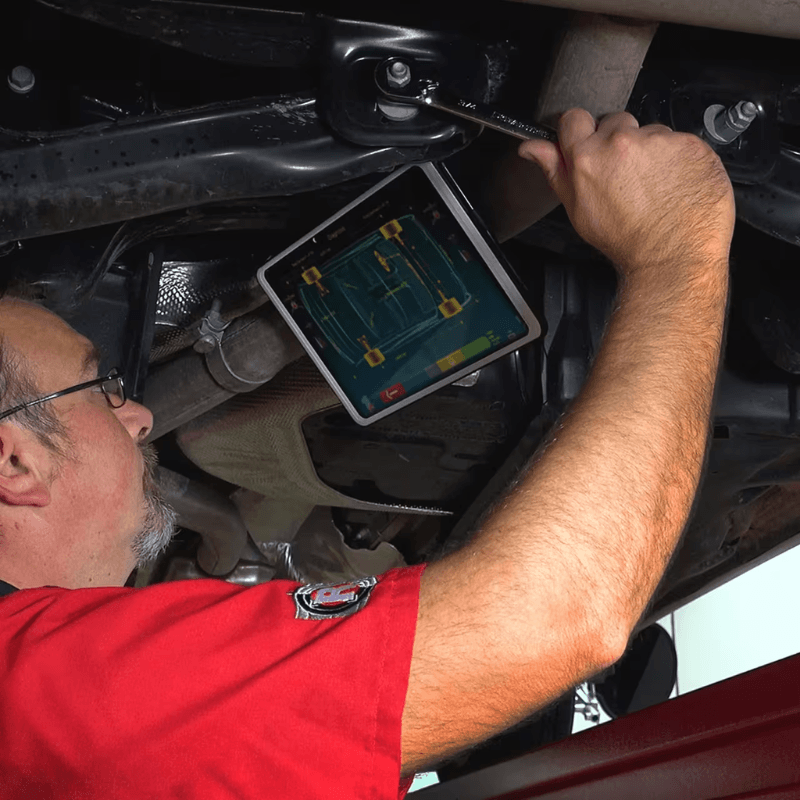

• Operation: Android tablet-controlled

• Connectivity: Bluetooth

• System Type: Towerless mobile alignment system

R1090 Pro 3D Alignment System Special Features

• Towerless design with no minimum bay size required

• Mobile system for use across multiple service bays

• Fast, accurate 3D alignment readings in seconds

• Solid Vision Technology for precision measurements

• Bluetooth connectivity for seamless operation

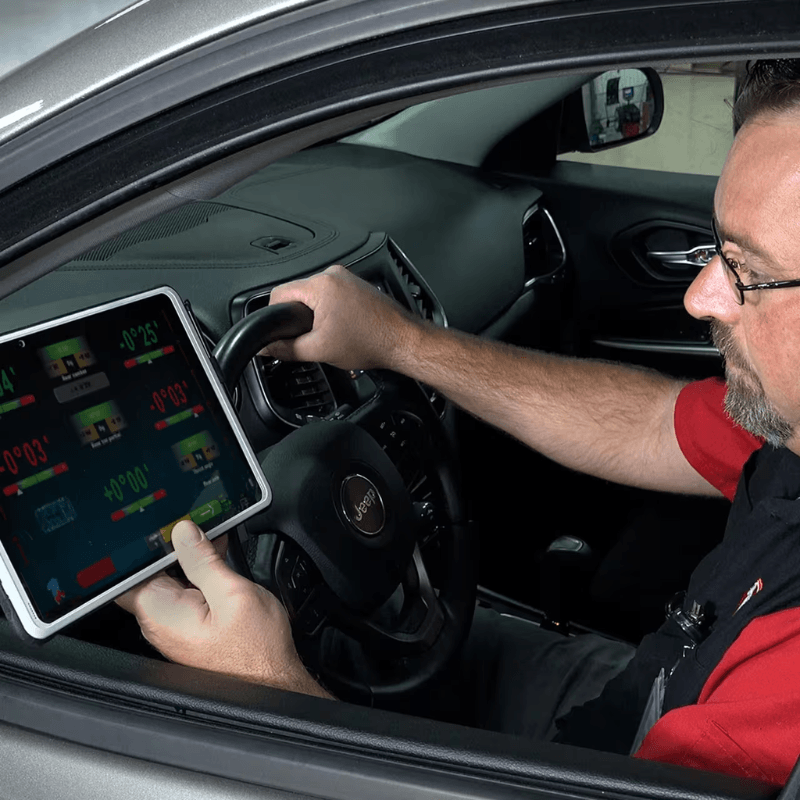

• Android tablet control for easy navigation

• No signal interruptions at any lift height

• Quick Release Battery Change Station for continuous operation

• Up to 8-hour battery life for all-day use

• Reduces outsourcing and increases in-house profits
