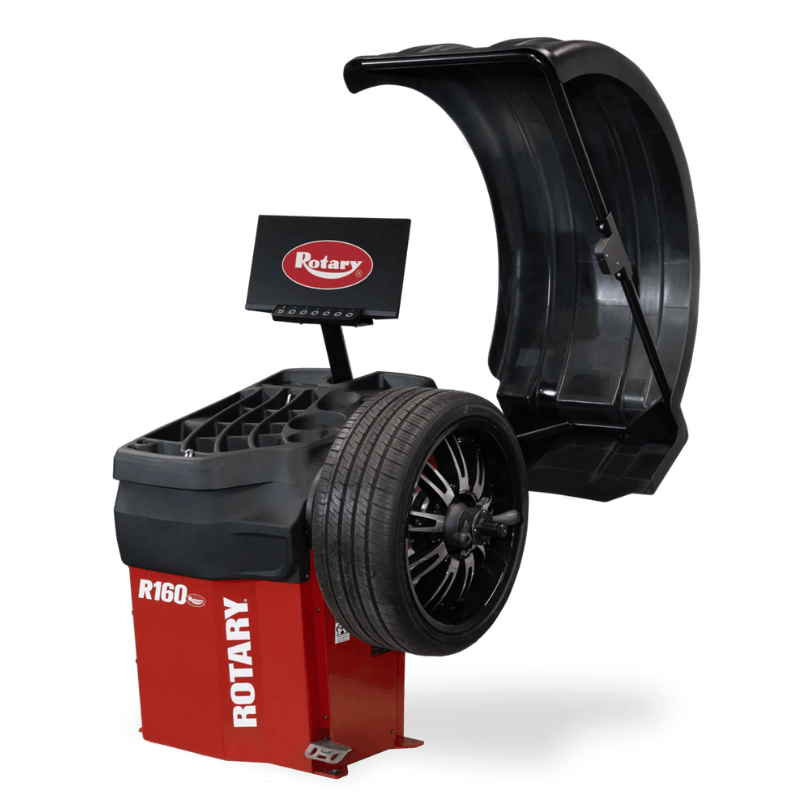

Rotary R160 3D Wheel Balancer

R160 3D Wheel Balancer

Fast, precise wheel balancing requires accurate measurements and an efficient workflow. The Rotary R160 3D Wheel Balancer combines automatic measurement technology with advanced sonar capabilities and a 22" monitor to streamline wheel balancing for professional service shops.

The R160 uses 3D automatic data entry measurements to capture wheel dimensions quickly, reducing manual measurement during setup. Advanced sonar technology and productivity-focused features help provide a consistent balancing workflow while the enhanced interface makes wheel service information easy to access.

Standard equipment includes a seven-piece 40 mm Pro Collet Kit, caliper, pliers, large quick-nut replacement lock, and light truck cone. The R160 supports rim diameters from 10" to 30", rim widths up to 22", tire diameters up to 44", and assemblies weighing up to 176 lbs.

Wheel Balancer R160 Specification

• Brand: Rotary
• Model: R160
• Product Type: 3D Wheel Balancer
• Rim Diameter: 10"–30"
• Rim Width: 1.5"–22"
• Maximum Tire Diameter: 44"
• Maximum Assembly Weight: 176 lbs.
• Readout Accuracy: 1 g
• Rotation Speed: <100 RPM
• Power Supply: 110V / 60 Hz / 1-phase
• Monitor Size: 22"

R160 Wheel Balancer Special Features

• 3D automatic wheel data entry measurements

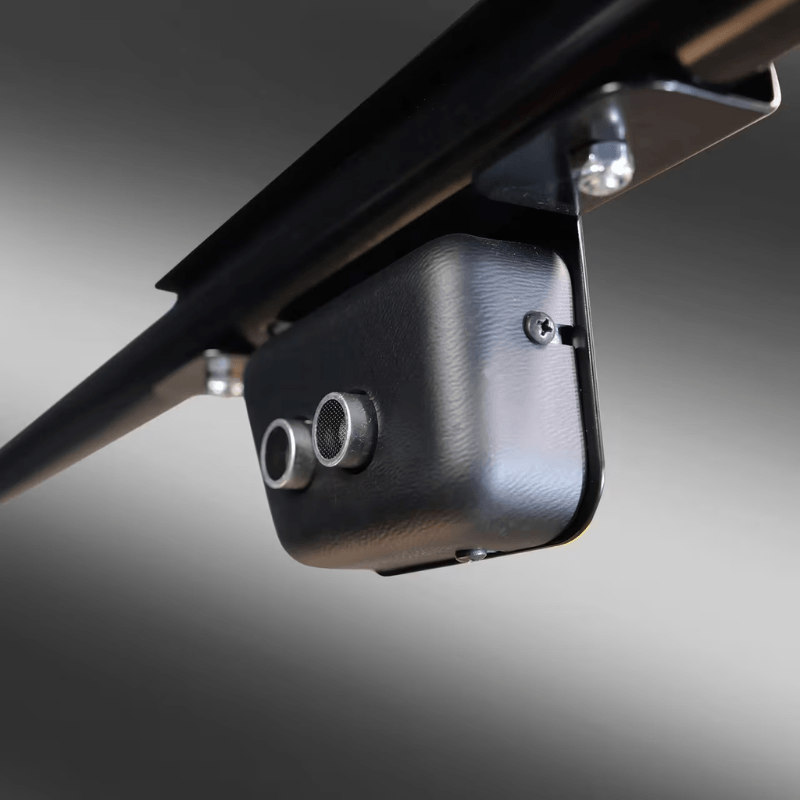

• Advanced sonar technology

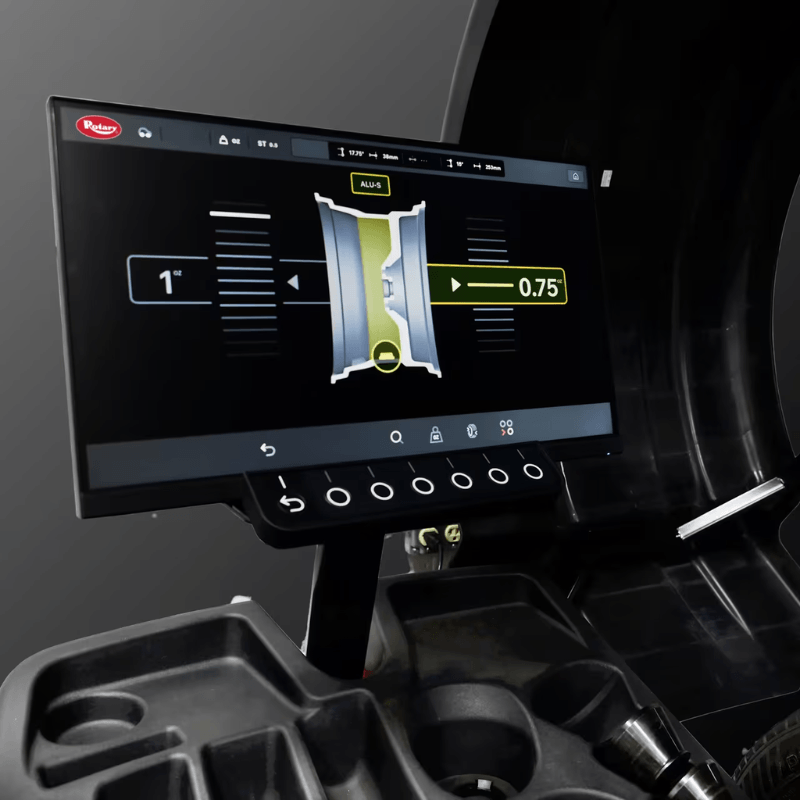

• 22" monitor
• Designed for fast and precise wheel balancing
• Automatic measurement helps reduce manual data entry
• Supports rim diameters from 10" to 30"
• Handles rim widths up to 22"
• Maximum tire diameter of 44"
• Supports assemblies up to 176 lbs.
• Rotation speed below 100 RPM
• 1 g readout accuracy
• 110V operation

Rotary R160 Manuals

  Rotary R160 Spec Sheet

  Rotary R160 R Series Brochure
