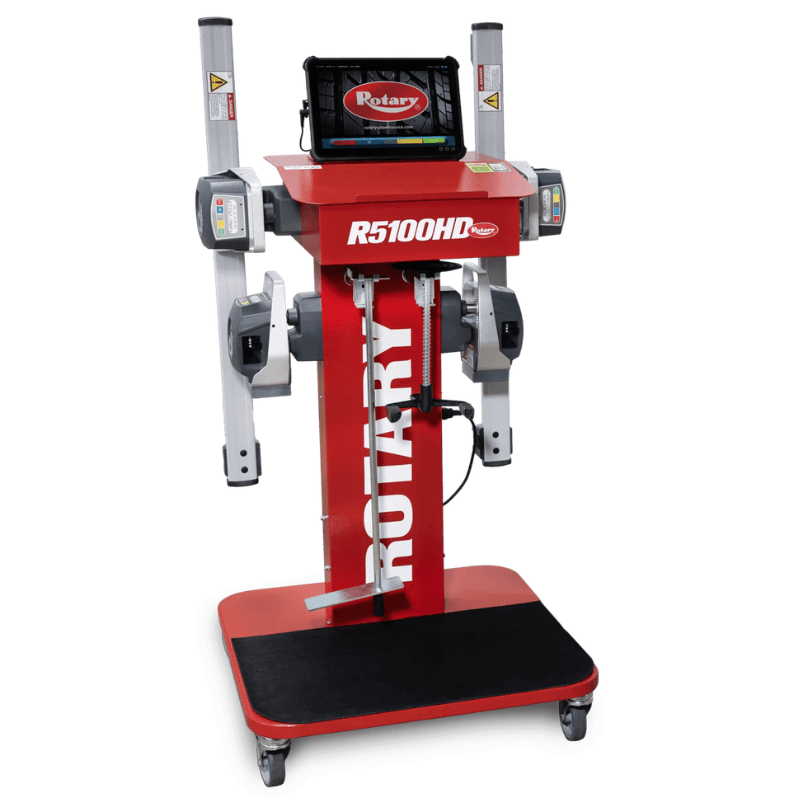

Rotary R5100HD Towerless Heavy Duty Truck & Trailer Alignment System

R5100HD Towerless Truck & Trailer Alignment System

Handling heavy-duty truck and trailer alignments with traditional systems can limit your workspace, slow down operations, and require dedicated bays that reduce overall shop efficiency. These limitations can make servicing multi-axle vehicles more time-consuming and less profitable.

The Rotary R5100HD eliminates these barriers with a fully mobile, towerless alignment system designed for commercial truck and trailer service. Powered by a Windows tablet and advanced infrared sensor technology, it delivers fast, precise measurements across multiple axles without requiring a dedicated alignment bay. With wireless operation, remote controls, and quick setup features, the R5100HD helps your shop increase productivity, reduce downtime, and maximize service capabilities.

Alignment System R5100HD Specification

Front Axle Measurements

• Total Toe Accuracy: +/- 3′

• Total Toe Range: +/- 2° (Total Range: +/- 20°)

• Partial Toe Accuracy: +/- 1′

• Partial Toe Range: +/- 1° (Total Range: +/- 2° 30′)

• Set-Back Accuracy: +/- 2′

• Set-Back Range: +/- 2° (Total Range: +/- 5°)

• Camber Accuracy: +/- 2′

• Camber Range: +/- 3° (Total Range: +/- 10°)

• Caster Accuracy: +/- 5′

• Caster Range: +/- 10° (Total Range: +/- 18°)

• King Pin Accuracy: +/- 5′

• King Pin Range: +/- 10° (Total Range: +/- 18°)

Rear Axle Measurements

• Total Toe Accuracy: +/- 3′

• Total Toe Range: +/- 2° (Total Range: +/- 20°)

• Partial Toe Accuracy: +/- 1′

• Partial Toe Range: +/- 1° (Total Range: +/- 2° 30′)

• Set-Back Accuracy: +/- 2′

• Set-Back Range: +/- 2° (Total Range: +/- 5°)

• Camber Accuracy: +/- 2′

• Camber Range: +/- 3° (Total Range: +/- 10°)

• Thrust Angle Accuracy: +/- 2′

• Thrust Angle Range: +/- 2° (Total Range: +/- 5°)

General

• Power Supply: 110V / Single Phase / 60 Hz

• Tire Diameter Range: 30″ – 50″

• System Type: Towerless heavy-duty alignment system

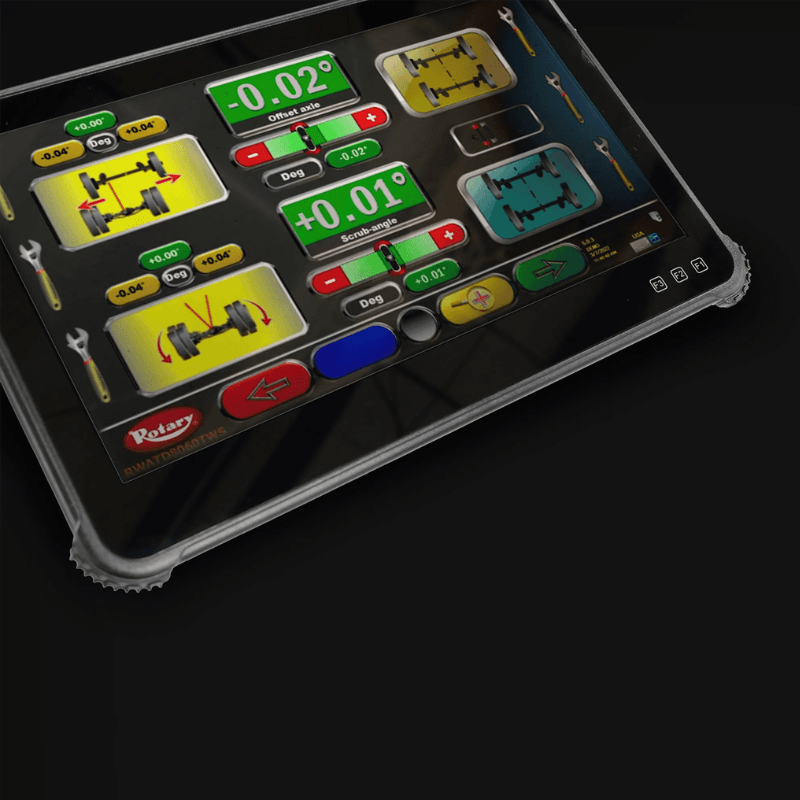

• Operation: Windows tablet-based

• Connectivity: Wireless Bluetooth & WiFi-ready

• Axle Capacity: Measures up to 8 axles

R5100HD Alignment System Special Features

• Towerless design eliminates need for dedicated alignment bay

• Mobile tablet-based system for flexible shop use

• Measures up to 8 axles for truck and trailer alignment

• Infrared 6-CCD sensor system for high-precision readings

• Wireless operation with Bluetooth and WiFi connectivity

• Remote control operation from any measuring head

• LED indicators guide technicians for accurate adjustments

• No run-out compensation required for faster setup

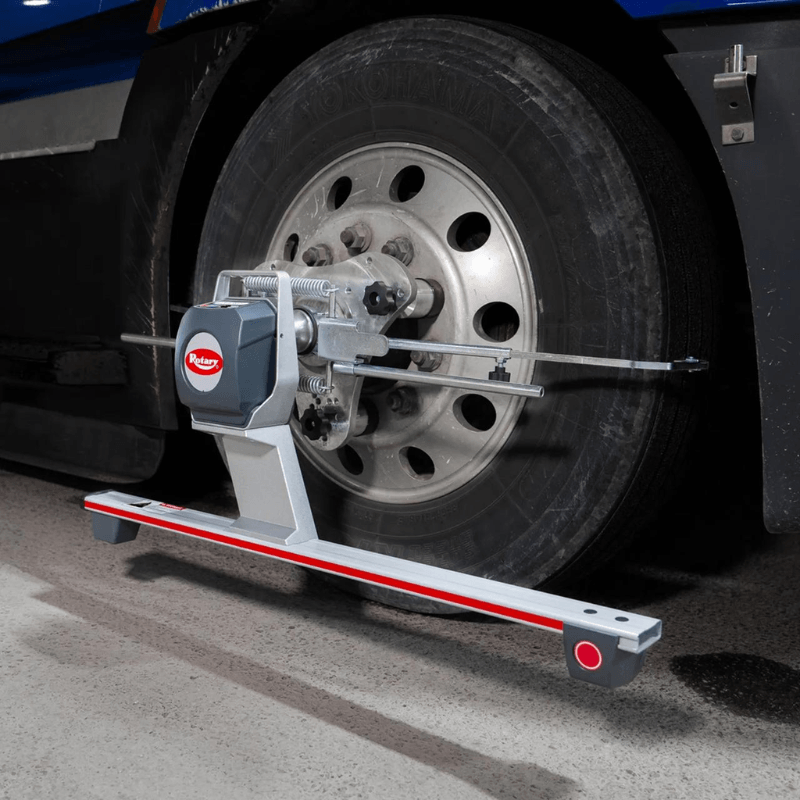

• Patented fast tire clamps reduce setup time by 15–20 minutes

• Double inclinometer allows caster adjustment without steering

• Data management system for storing and comparing service records

• Step-by-step guided procedures for easier operation

• Works on floor, lift, or pit for maximum versatility
