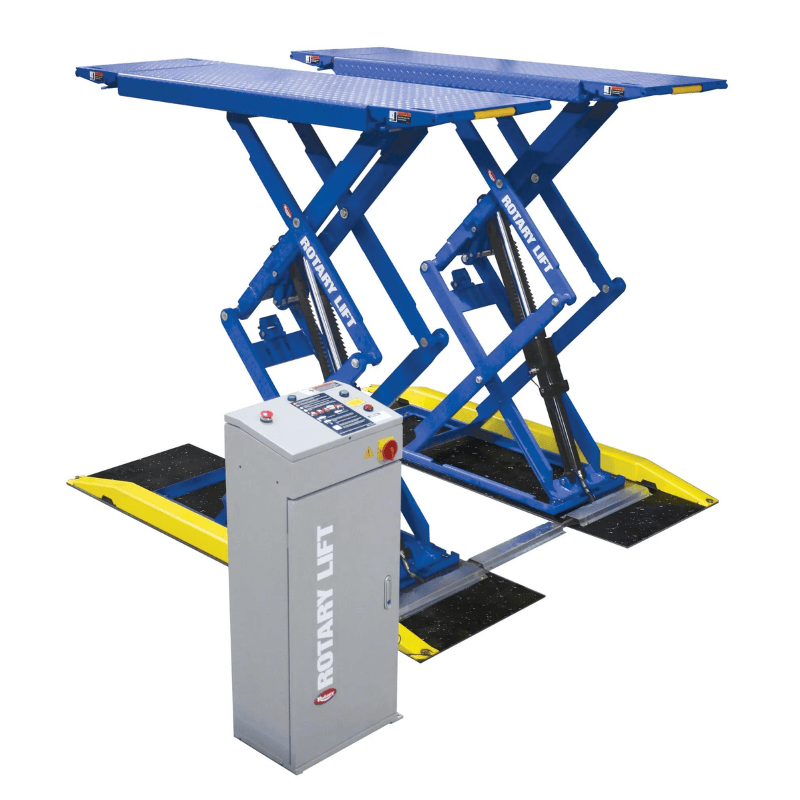

Rotary RLP77 7,700lb Scissor Lift - Full Rise; ALI Certified

RLP77 7,700lb Scissor Lift

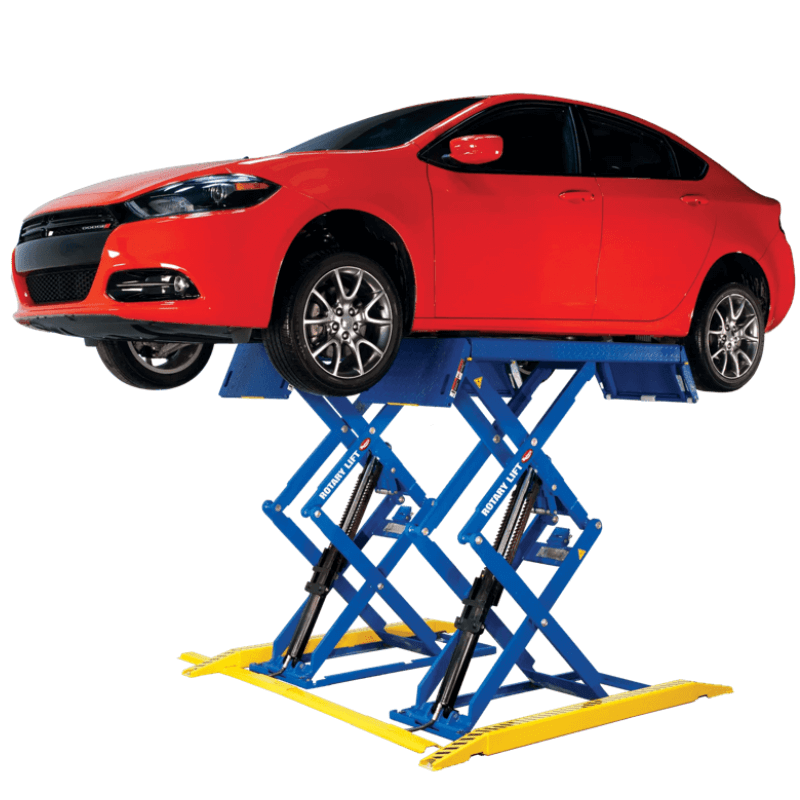

The Rotary RLP77 Double Section Scissor Lift is a compact, low-profile service lift engineered for quick service and fast repair work in space-limited shops. With a 7,700 lb lifting capacity, this drive-over pad lift is ideal for Class 1 vehicles and delivers professional-grade performance without occupying valuable bay space.

At the core of the RLP77 is Rotary’s patented Synchrodrive™ Equalization system, a hydraulic design that maintains platform level during lifting and lowering. Unlike electronic or sensor-based systems, Synchrodrive uses fewer moving parts and eliminates potential failure points, helping prevent out-of-level conditions caused by obstructions. The lift’s composite high-strength steel construction, diamond-plate platforms, and negative rake locking teeth provide long-term durability and secure vehicle support.

Designed for tire shops, quick-lube centers, and general automotive service facilities, the RLP77 offers excellent accessibility for wheel, brake, and underbody service. Its ultra-low lowered height, folding ramps, and fast rise time make it a practical solution for high-throughput environments that demand speed, reliability, and efficient use of floor space.

Scissor Lift RLP77 Specifications

• Lift Type: Low-Profile Double Scissor Lift

• Lift Capacity: 7,700 lbs

• Rise Height:

  • 78 5/8″ (Surface Mount)

  • 74 5/8″ (Recessed Mount)

• Lowered Height: 4 1/8″

• Overall Width: 85″

• Overall Length: 85″

• Platform Length: 59″ (85″ with ramps extended)

• Runway Width: 24 3/4″

• Width Between Platforms: 23 5/8″

• Outside Width of Platforms: 70 3/4″

• Ramp Length: 13″

• Locking Leg Heights: 13 3/8″ / 17 3/8″ / 21 3/8″

• Motor / Voltage: 4 HP / 230V / 60 Hz

• Time of Full Rise: 39 seconds

• Compressed Air Requirement: 85–110 PSI

• Mounting Options: Surface Mount or Recessed Mount

• Lift Colors: Blue, Red, Black (Power console gray)

RLP77 7,700 Lbs. Scissor Lift Special Features

• 7,700 lb capacity for Class 1 vehicle service

• Ultra-low-profile design for easy drive-over access

• Patented Synchrodrive™ hydraulic equalization system

• Double scissor structure for stability and smooth operation

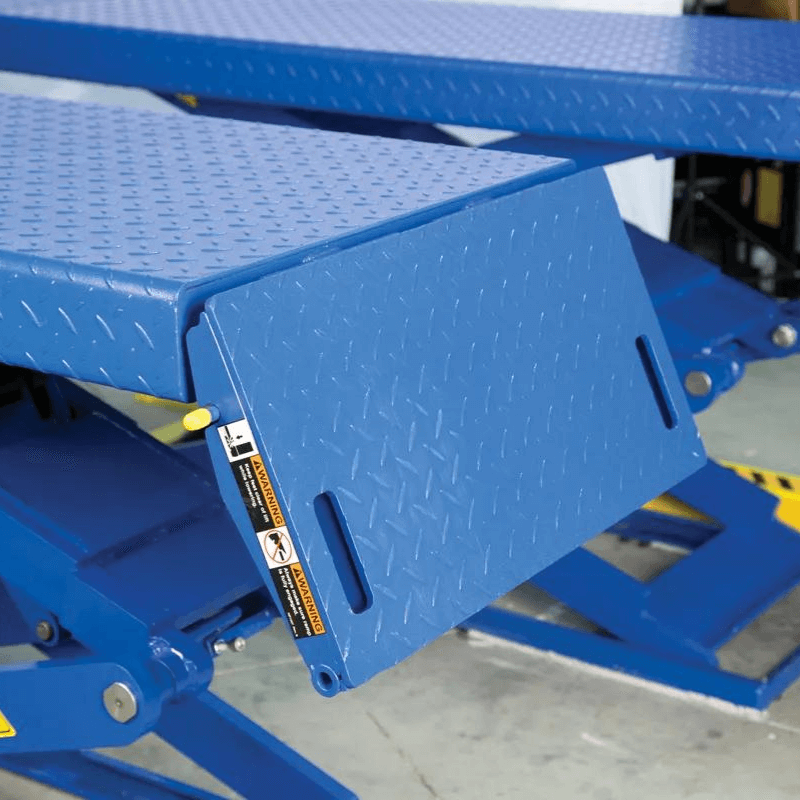

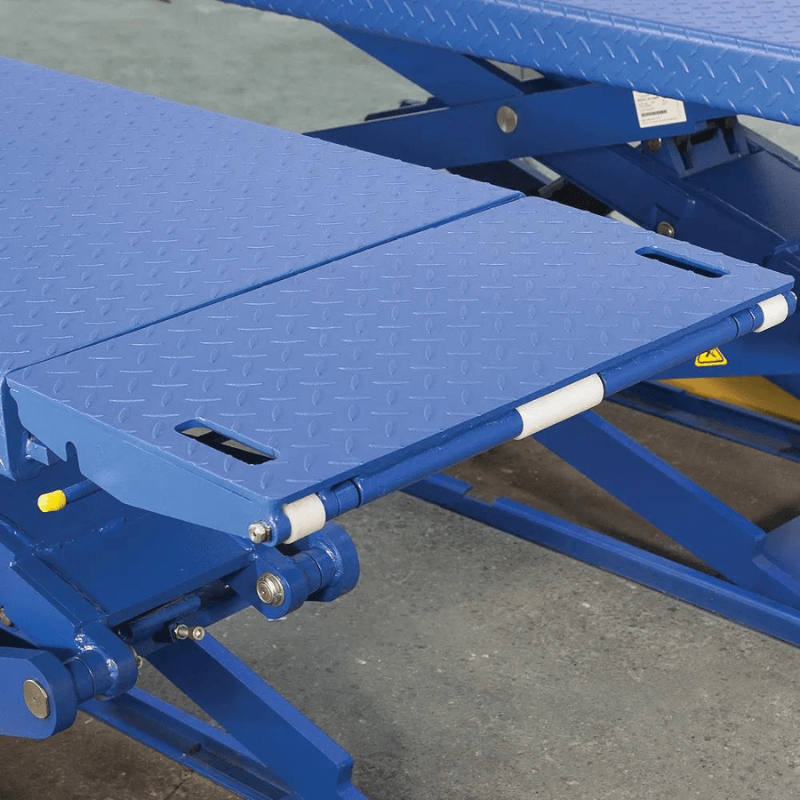

• Integrated folding and hinged ramps for improved service access

• Composite high-strength steel, powder-coated platforms

• 24 lock positions with negative rake tooth design

• Lift dampener for softer, controlled descents

• Compact control console with integrated filter, regulator, lubricator

• ALI Gold Certified for safety and performance compliance

• Warranty
  • 5 Years Structural
  • 1 Year Labor
  • 1 year Functional Parts (power, cylinders, cables, etc)
