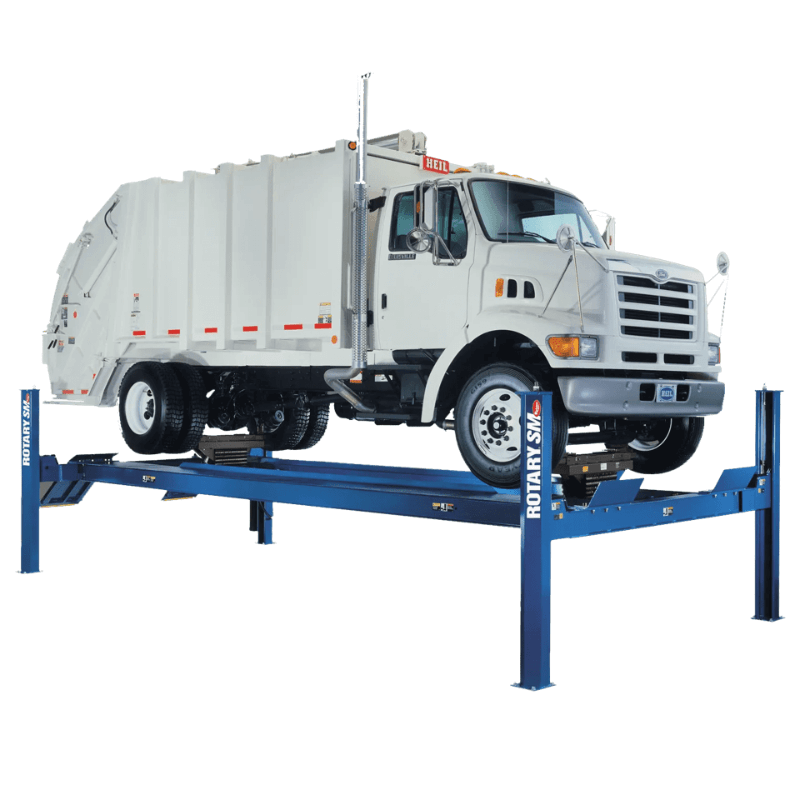

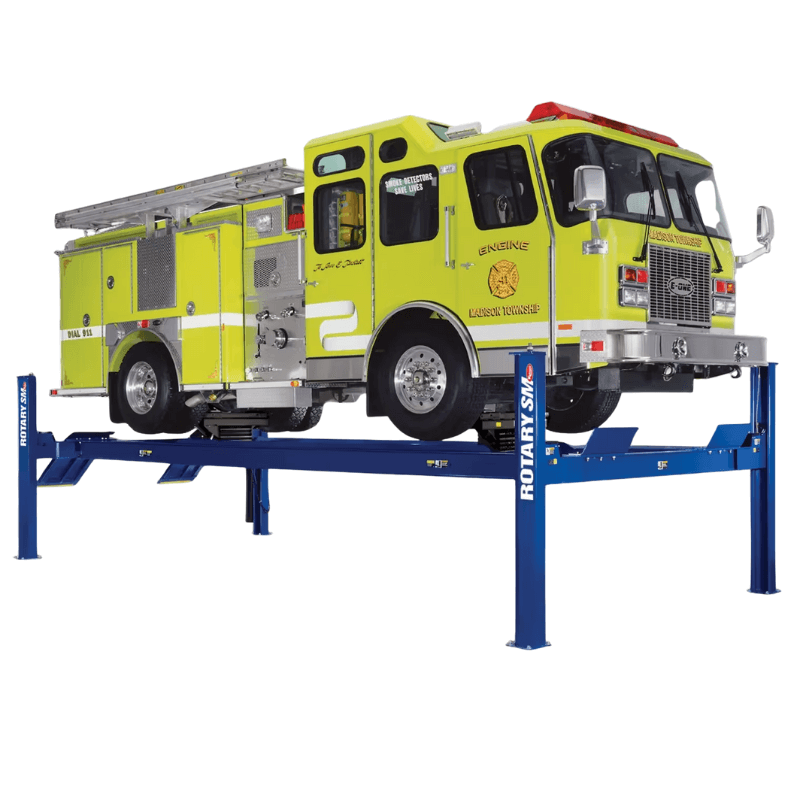

Rotary SM30 30,000lb 4 Post Lift - ALI Certified

SM30 30,000lb Capacity

The Rotary SM30 is a heavy-duty four-post lift engineered to handle light- and medium-duty service demands with exceptional strength and stability. With a massive 30,000 lb lifting capacity, this lift is designed for shops servicing a wide range of vehicles, including cars, vans, trucks, and commercial fleets that require higher load capability without sacrificing control or precision.

Built for professional environments, the SM30 features polymer rollers that deliver smooth, quiet operation, helping reduce shop noise while maintaining consistent lifting performance. Rotary’s patented Dual-Function Sentinel Lock™ system enhances operational safety by actively managing lock engagement and monitoring cable slack throughout the lift cycle.

Ideal for high-capacity service bays and commercial facilities, the Rotary SM30 provides the versatility, durability, and safety needed for demanding workloads. Its wide runways, extended wheelbase options, and stable four-post design make it a dependable solution for maximizing productivity across a broad range of vehicle types.

SM 30 Specifications

• Lifting Capacity: 30,000 lbs

• Maximum Wheelbase: 235" / 271" / 307"

• Rise Height: 68"

• Overall Length: 308 1/8" / 344 1/8" / 380 1/8"

• Overall Width: 148 13/16"

• Inside of Columns: 132"

• Distance Between Columns: 249" / 285" / 321"

• Column Height: 84 3/4"

• Runway Width: 24"

• Runway Height: 8 3/8"

• Width Between Runways (Min.): 41"

• Width Between Runways (Max.): 48"

• Motor: 4 HP

• Voltage (Single Phase): 208V–230V

• Time of Full Rise: 105 seconds

• Minimum Bay Size:

  • 192" × 360"

  • 192" × 396"

  • 192" × 432"

SM30 30,000 Lbs. Four-Post Lift Special Features

• Unit does NOT include Rolling Jacks

  • ROT RJ152 - 15,000lb Bridge Jack

• 30,000 lb lifting capacity for light and medium-duty commercial vehicles

• Heavy-duty four-post design for maximum stability and load distribution

• Polymer rollers for smooth, quiet lift operation

• Dual-Function Sentinel Lock™ system for enhanced safety and control

• Wide runways support larger vehicles with confidence

• Multiple wheelbase configurations for versatile shop layouts

• Built for high-volume professional service environments

• Warranty
  • 5 Years Structural


  • 1 Year Labor


  • 1 year Functional Parts (power, cylinders, cables, etc)
