Rotary SMO14 14,000lb 4 Post Lift - Open Front

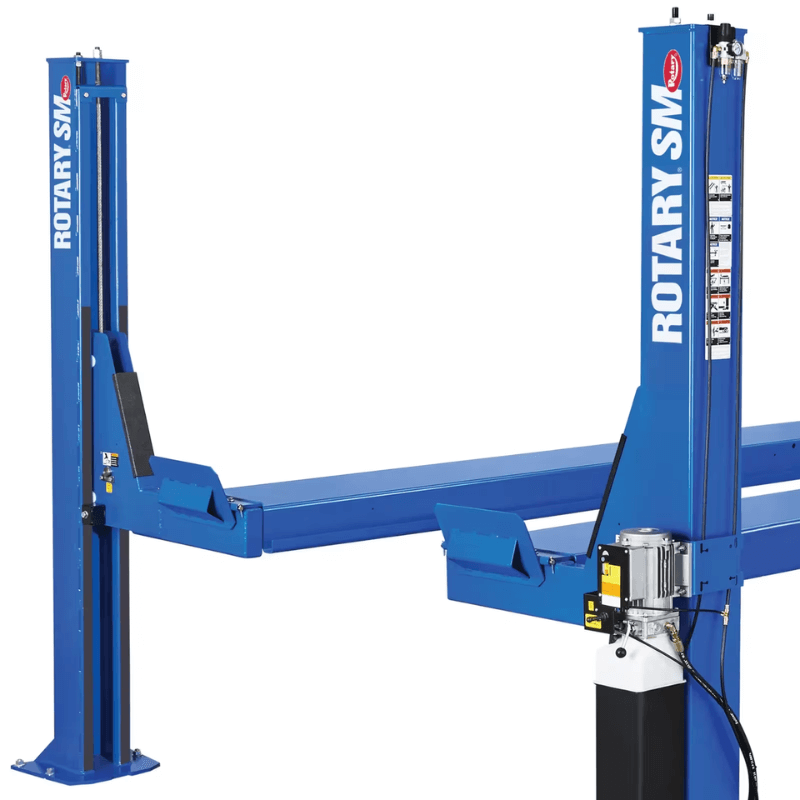

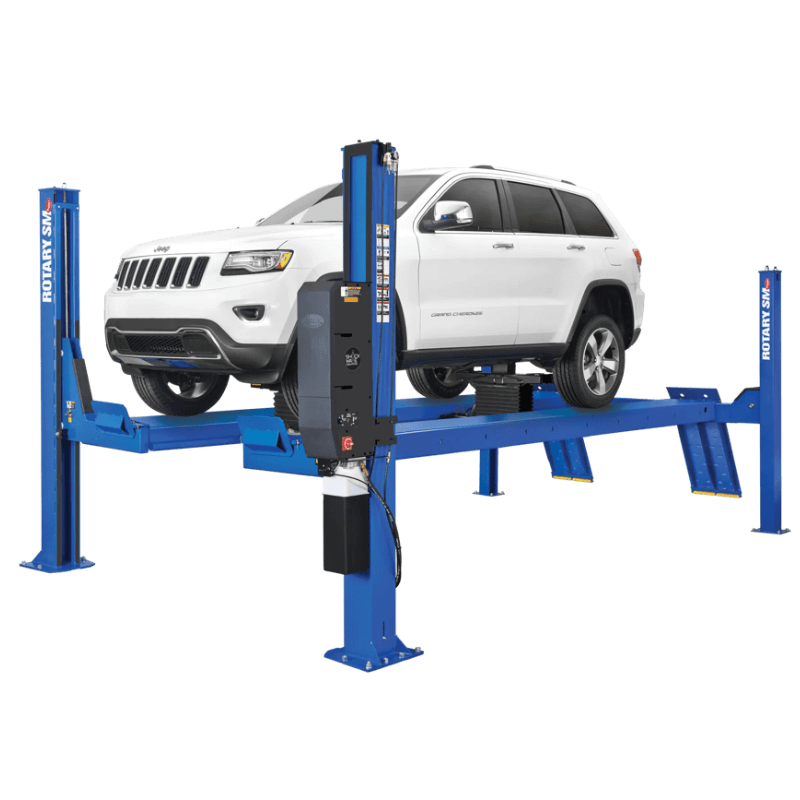

SMO14 Open-Front 4 Post Lift

The Rotary SMO14 is a heavy-duty, open-front four-post lift engineered for shops that service a wide range of vehicles, from passenger cars to vans, trucks, and light to medium-duty commercial vehicles. With a 14,000 lb lifting capacity, this professional-grade lift delivers reliable performance for daily service operations while maintaining efficient vehicle access and workflow.

Designed for productivity and safety, the SMO14 features an open-front configuration that allows technicians unobstructed access beneath the vehicle. This design improves maneuverability for service carts, tools, and oil drains, reducing downtime during routine maintenance and inspections. Louvered runways enhance traction, ensuring vehicles can be driven on and off the lift smoothly and securely.

Shockwave™ technology is available to dramatically increase lifting and lowering speeds, helping shops complete more jobs per bay each day. Built with Rotary’s proven engineering and durable construction, the SMO14 is an ideal solution for high-volume repair shops, dealerships, and fleet service facilities that demand strength, efficiency, and long-term reliability.

SMO-14 Specifications

• Lift Type: Four-Post Open-Front Lift

• Lifting Capacity: 14,000 lbs

• Maximum Wheelbase: 182" / 216"

• Rise Height: 78 3/4"

• Overall Length: 253" / 286"

• Overall Width: 140 1/2"

• Inside Column Width: 116 1/4"

• Distance Between Columns: 227 3/4"

• Column Height: 109 1/16"

• Runway Width: 20"

• Min. Height: 7"

• Width Between Runways (Min / Max): 43"

• Motor: 2 HP

• Voltage (Single Phase): 208–230V

• Time of Full Rise: 65 seconds

• Minimum Bay Size Required: 180" x 336"

Rotary SMO-14 14,000 Lbs. Four-Post Lift Special Features

• 14,000 lb capacity supports a wide range of vehicles

• Open-front design for unrestricted under-vehicle access

• Louvered runways provide improved traction and safety

• Shockwave™ option for faster lift and descent cycles

• Drive-on configuration for quick vehicle positioning

• Heavy-duty construction for long-term shop use

• Ideal for service bays handling mixed vehicle types

• Warranty
  • 5 Years Structural
  • 1 Year Labor
  • 1 year Functional Parts (power, cylinders, cables, etc)

Rotary SMO14 Manual

  Rotary SMO14 Brochure
