Rotary SPOA10-AV 10,000lb Asymmetric 2 Post Lift

SPOA10-AV All-Vehicle Two-Post Asymmetric Lift with AV Arms Technology

The Rotary SPOA10-AV is a professional-grade two-post asymmetric vehicle lift designed to service a wide range of vehicles up to 10,000 lbs on a single lift system. Engineered for modern automotive shops, it accommodates unibody cars, SUVs, trucks, exotic low-profile vehicles, and battery electric vehicles using one versatile lifting solution. Its asymmetric design improves door clearance and vehicle access, supporting efficient daily service operations.

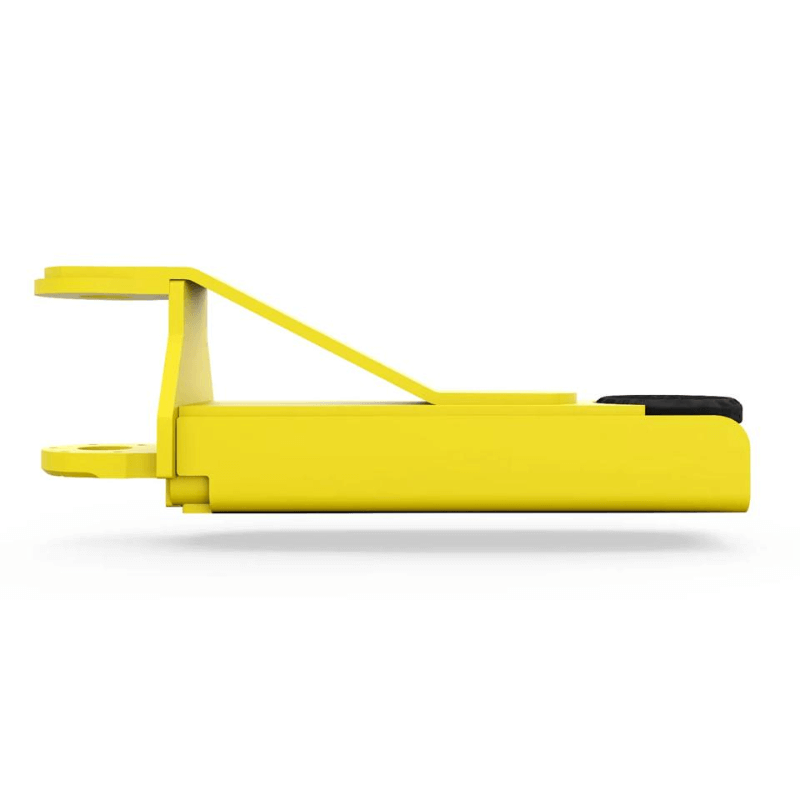

At the core of the SPOA10-AV is Rotary’s patent-pending All-Vehicle AV Arms™, delivering the industry’s lowest adapter height and the widest pickup range in its class. This advanced arm design allows precise positioning at OEM-recommended lift points while reducing the risk of underbody contact. Built with Rotary’s original Double “S” column design and performance-tested to 20,000 lift cycles, the lift offers proven durability, stability, and long-term reliability.

The SPOA10-AV is ideal for high-volume repair shops, dealerships, and service centers seeking maximum flexibility without investing in multiple lift types. Optional SHOCKWAVE™ Power significantly reduces rise and descent times, helping shops increase productivity and service throughput. Designed to meet the demands of evolving vehicle platforms, this lift is a future-ready investment for professional automotive environments.

SPOA10 AV 2 Post  Lift Specifications

• Lifting Capacity: 10,000 lbs

• Lift Configuration: Two-Post Asymmetric

• Maximum Rise: 81 1/2″ (84 1/2″ with SHOCKWAVE Power)

• Overall Height: 143 1/2″ (11′ 11 1/2″) — 149 1/2″ (12′ 5 1/2″ with SHOCKWAVE Power)

• Overall Width: 137 1/2″ (11′ 5 1/2″)

• Drive-Thru Clearance: 95 1/4″

• Inside Column Width: 107 1/4″

• Front Arm Reach: 18 1/2″ – 41″

• Rear Arm Reach: 27 5/8″ – 58 1/4″

• Minimum Adapter Height: 3 3/8″

• Rise Time: 45 seconds (25 seconds with SHOCKWAVE Power)

• Descent Time: 40 seconds (19 seconds with SHOCKWAVE Power)

• Minimum Ceiling Height: 144″ (12′) — 150″ (12′ 6″ with SHOCKWAVE Power)

• Minimum Bay Size: 144″ x 288″ (12′ x 24′)

• Motor: 2 HP

• Voltage: 208V–230V

SPOA10-AV 10,000 Lbs. Two-Post Lift Special Features

• Patent-pending All-Vehicle AV Arms™ for unmatched lifting versatility

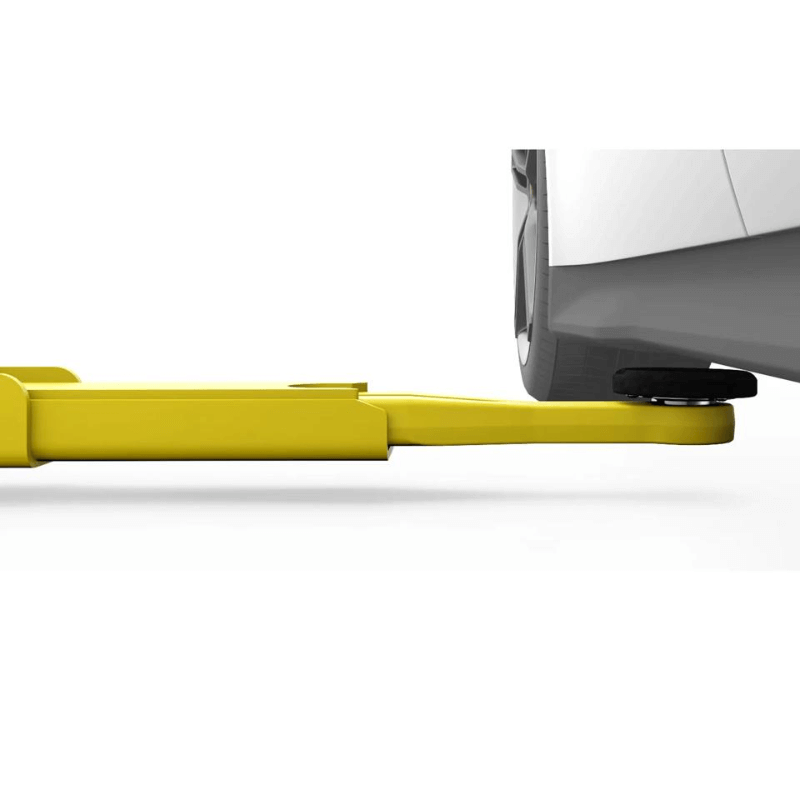

• Industry-leading low-profile adapter height for EVs and exotic vehicles

• Asymmetric design improves door clearance and technician access

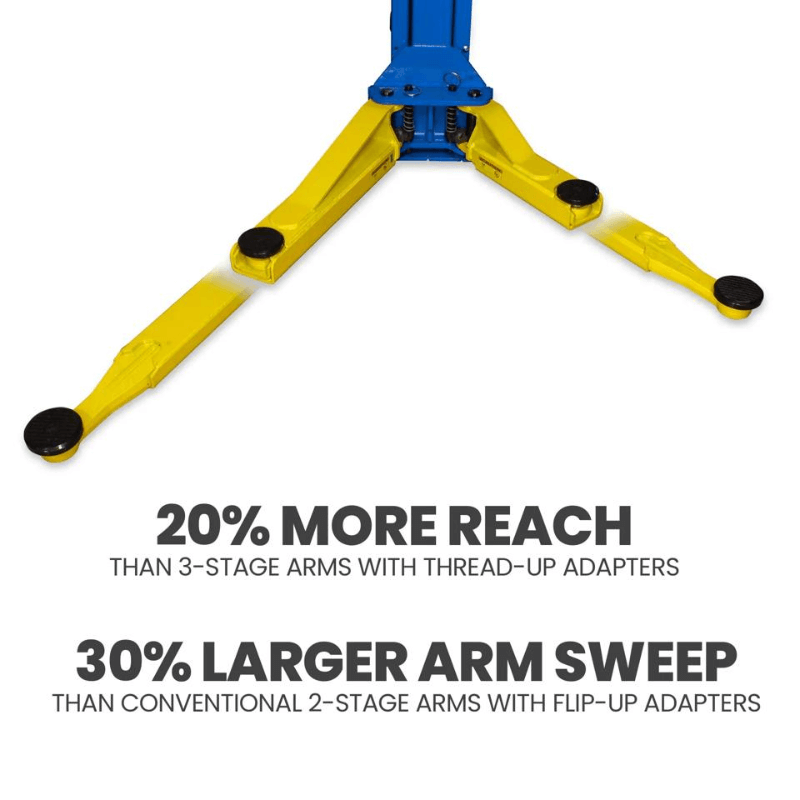

• Shortest arm retraction and largest pickup range in its class

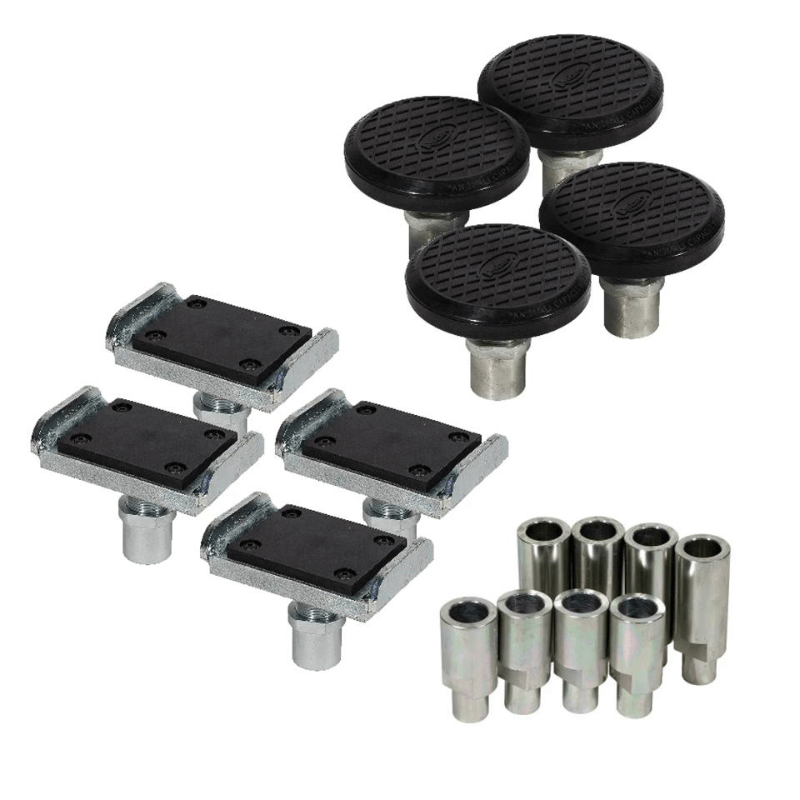

• Includes round, truck, and stackable adapter extensions

• High-strength tapered arm design for fast and accurate positioning

• Optional SHOCKWAVE™ Power for significantly faster lift cycles

• Performance-tested construction for demanding shop environments

• Designed to lift vehicles at OEM-recommended pickup points

• Warranty
  • 5 Years Structural


  • 1 Year Labor


  • 1 year Functional Parts (power, cylinders, cables, etc)

Rotary SPOA10-AV Manual

  Rotary SPOA10-AV Spec Sheet
