Rotary X14 14,000lb Scissor Lift - Open Front

X14 Open Front Scissor Lift

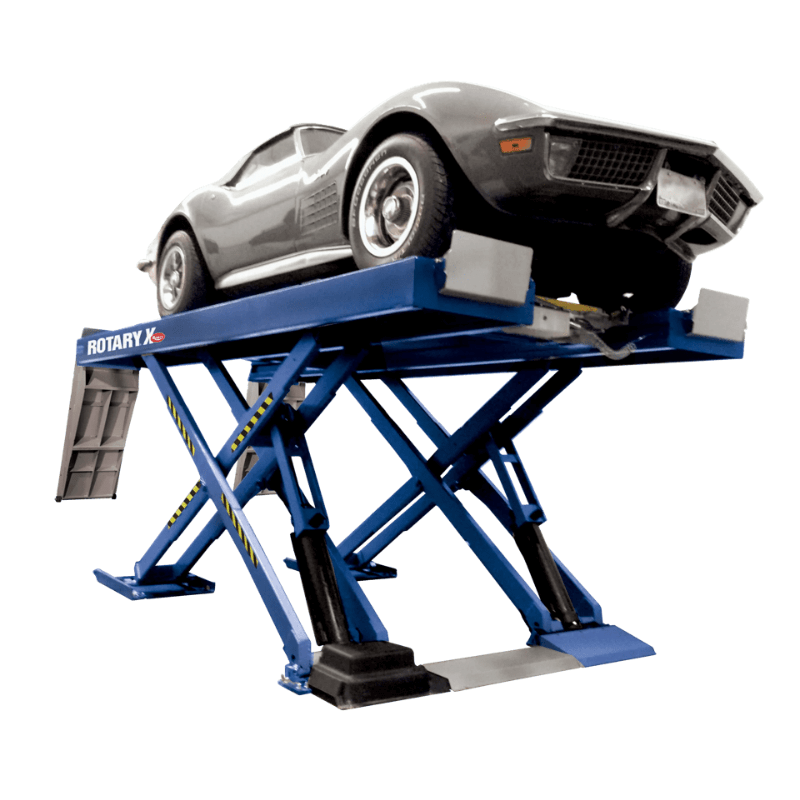

The Rotary X14 Drive-On Scissor Lift is a heavy-duty, space-efficient lifting solution designed to handle a wide range of vehicles, from shorter wheelbase passenger cars to long-wheelbase trucks. With a robust 14,000 lb lifting capacity and an impressive maximum wheelbase capability, the X14 is engineered for professional shops that require versatility, stability, and consistent performance.

Built with an open front and rear scissor design, the X14 provides unobstructed access through the center of the lift, improving technician movement and workflow efficiency. Its simple hydraulic system maintains level platforms throughout the lifting cycle, while mechanical locks with multiple engagement points automatically secure the lift at working height. Automatic wheel chocks further enhance safety by engaging as the lift rises.

The X14 is well suited for general service, inspections, and alignment-related work in busy automotive and truck service environments. Durable construction, self-lubricating pivot bushings, and an easy-to-install base plate leveling system make it a dependable long-term investment for shops seeking a high-capacity drive-on scissor lift with minimal floor space impact.

Scissor Lift X14 Specifications

• Lift Type: Drive-On Scissor Lift

• Lift Capacity: 14,000 lbs

• Maximum Rise: 72 3/4″ (Surface Mounted)

• Lowered Height: 10 3/4″

• Overall Length: 277″

• Overall Width: 91″

• Runway Length: 216″

• Runway Width: 25 1/2″

• Width Between Platforms: 40″

• Maximum Wheelbase: 198″

• Max Two-Wheel Alignment Wheelbase: 195″

• Max Four-Wheel Alignment Wheelbase: 193″

• Min Four-Wheel Alignment Wheelbase: 85 1/2″

• Motor / Voltage: 5 HP / 230V / Single Phase

• Time of Full Rise: 77 seconds

• Time of Descent: 47 seconds

• Compressed Air Requirement: 85–110 PSI

• Recommended Minimum Bay Size: 14′ x 27′

X14 14,000 Lbs. Scissor Lift Special Features

• 14,000 lb capacity for cars, trucks, and long-wheelbase vehicles

• Drive-on scissor design with open front and rear access

• Hydraulic system maintains level platforms during lifting

• Mechanical locking system with 14 automatic lock positions

• Pneumatic lock release for safe and controlled lowering

• Automatic wheel chocks for enhanced vehicle security

• Self-lubricating pivot bushings for extended service life

• Base plate leveling system for easier installation

• Space-saving layout ideal for professional service bays

• Warranty
  • 5 Years Structural
  • 1 Year Labor
  • 1 year Functional Parts (power, cylinders, cables, etc)

Rotary X14 Manual

  Rotary X14 Spec Sheet
