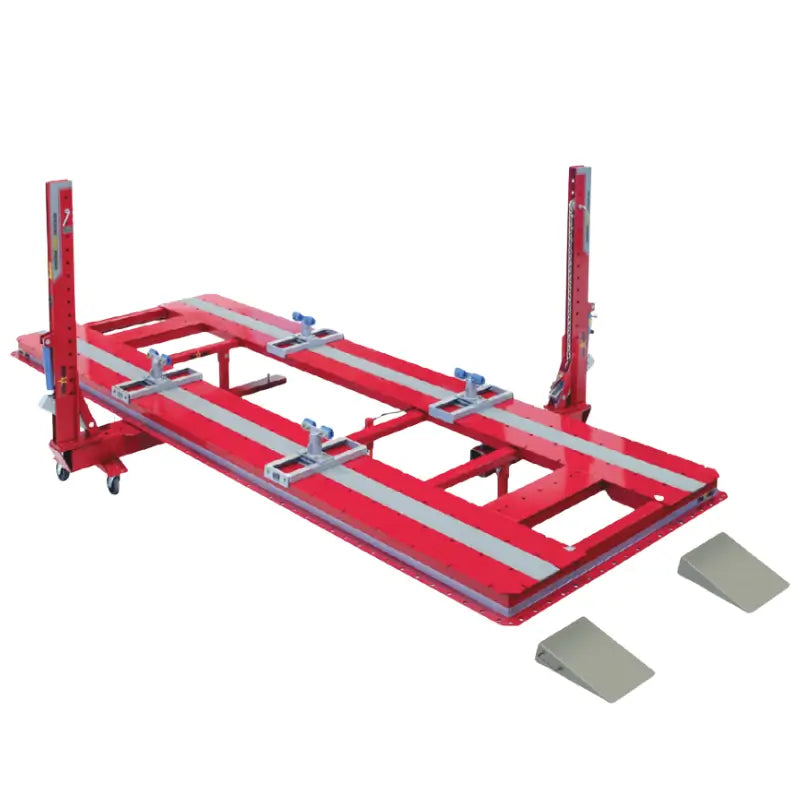

Star-A-Liner 9011003 CHEETAH SF 24' II 2 Tower Frame Machine with Hydraulic

Star-A-Liner CHEETAH SF 24' II 2 Tower Frame Machine with Hydraulic

SKU 9011003
by Star A Liner
$34,878.00
  • ✓ Contact us now for our best price!
  • ✓ No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • ✓ Free Warehouse Pickup Options
  • ✓ Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

CHEETAH SF 24' II Frame Machine – 2 Towers, 10-Ton Hydraulic Pulling Power

The Star-A-Liner CHEETAH SF 24' II is a heavy-duty 2-tower frame machine designed to give collision repair shops the versatility they need for today’s wide variety of vehicles. With a 24-foot bed length and the ability to extend to nearly 30 feet with towers, this frame rack has the space and stability to handle everything from smaller unibody cars to full-size, heavy-duty dually trucks. Whether your shop takes in passenger cars, pickups, or large work trucks, the Cheetah SF 24' II ensures you have the capability to work on them all in one efficient setup.

Built with durability and productivity in mind, this machine provides a 10-ton pulling force per tower and a full 360-degree pulling radius. That means technicians can approach frame straightening jobs from any angle without repositioning the vehicle, saving time while achieving precise results. Combined with wide treadways and a robust working platform, it delivers a stable base that allows for powerful pulls while keeping the vehicle firmly in place.

The Cheetah SF 24' II runs on a 100 psi air-powered hydraulic system, which makes it both reliable and efficient for long-term shop use. At over 7,600 pounds of solid steel construction, it’s built to withstand the demands of daily collision repair. This frame rack is not only a practical investment for handling larger vehicles but also a long-lasting addition that improves shop workflow, increases repair capacity, and boosts overall productivity.

2 Tower Frame Machine 9011003 CHEETAH SF 24 Specification

  • Part ID: 9011003

  • Length of Bed (Top): 24 ft. (732 cm)

  • Length with Towers Extended: 29 ft. 10 in. (909 cm)

  • Width of Bed: 92 in. (234 cm)

  • Width with Towers Extended: 14 ft. (427 cm)

  • Width of Treadway: 28 in. (71 cm)

  • Width Between Treadway: 36 in. (91 cm)

  • Overall Height: 8 ft. 6 in. (259 cm)

  • Tower Height: 6 ft. 8 in. (203 cm)

  • Working Height: 24 in. (61 cm)

  • Weight: 7,680 lbs. (2,975 kg)

  • Power Required (Hydraulics): 100 psi air (6.89 bar)

  • Pulling Power (Hydraulics): 10 ton (9 metric ton)

  • Pulling Radius: 360 degrees

CHEETAH SF 24' II 2 Tower Frame Machine Special Features

  • 2 powerful pulling towers with 360° reach for maximum flexibility

  • 24 ft bed length handles unibody cars through full-size, heavy-duty trucks

  • Extends to nearly 30 ft with towers for oversized repair capability

  • 10-ton hydraulic pulling force per tower for tough frame straightening

  • Wide treadways and stable platform support secure, accurate pulls

  • Air-powered hydraulic system operating at 100 psi for dependable performance

  • Rugged 7,680 lb steel build ensures long-lasting durability in any shop

  • A versatile solution for collision repair shops handling both light-duty and heavy-duty vehicles

9011003 CHEETAH SF 24 Manual

Coming Soon
