Star-A-Liner CHEETAH 22' III 3 Tower Frame Machine With Hydraulics

SKU 90111233
$29,181.00
  • Contact us now for our best price!
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

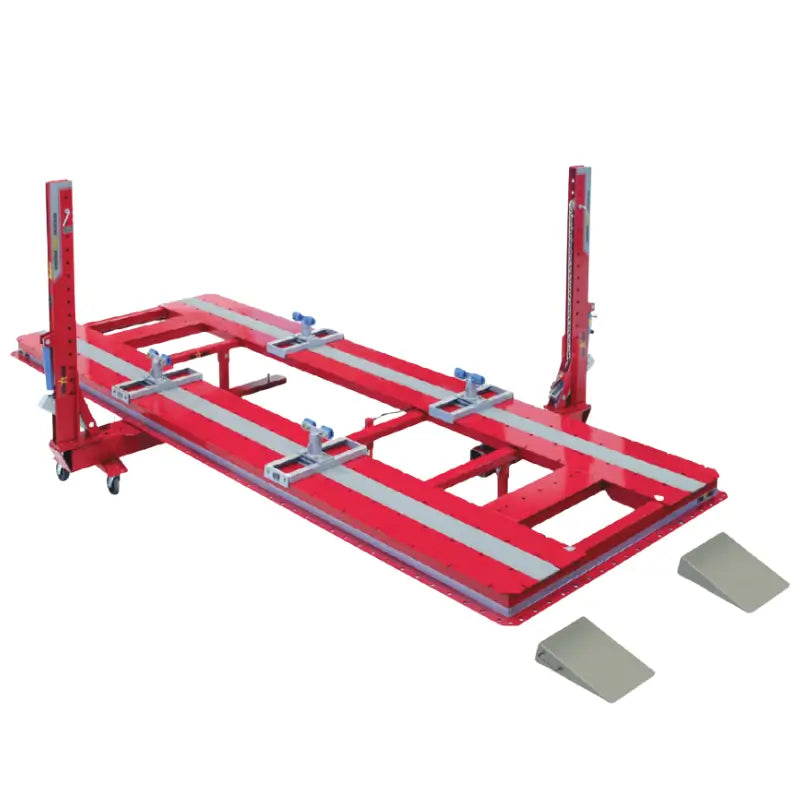

Star-A-Liner CHEETAH 22' III 3-Tower Frame Machine with Hydraulics – Heavy-Duty Auto Body Rack

The Star-A-Liner CHEETAH 22' III 3 Tower Frame Machine with Hydraulics is a professional-grade collision repair system engineered for maximum pulling power, stability, and capacity. Featuring an extended 22-foot bed, this heavy-duty rack accommodates oversized vehicles such as SUVs, full-size trucks, and vans with ease. Built with rugged all-steel construction and reliable air-powered hydraulics, the Cheetah 22' III is designed to withstand demanding workloads in busy collision centers.

Equipped with three hydraulic towers, each capable of delivering 10 tons of pulling force with full 360° rotation, this frame machine provides unparalleled pulling versatility. Technicians can approach damage repairs from any angle, making it easier to correct severe structural damage with precision. The wide treadway and smooth loading system further improve efficiency, ensuring that vehicles are secured quickly and repair work can begin without delays.

The Star-A-Liner CHEETAH 22' III is more than just powerful—it’s built for productivity and long-term performance. Its durable design supports high-volume operations, while the combination of reach, pulling power, and stability makes it a must-have for auto body shops that handle a wide range of vehicles. Whether it’s heavy collision straightening or light corrective pulls, this machine ensures that every repair is completed with speed, accuracy, and confidence.

3 Tower Frame Machine 90111233 CHEETAH 22 Specification

  • Part ID: 90111233 CHEETAH 22' III - W/HYD

  • Length of Bed (Top): 22 ft. (671 cm)

  • Length with Towers Extended: 27 ft. 10 in. (848 cm)

  • Width of Bed: 92 in. (234 cm)

  • Width with Towers Extended: 14 ft. (427 cm)

  • Width of Treadway: 28 in. (71 cm)

  • Width Between Treadway: 36 in. (91 cm)

  • Overall Height: 8 ft. 6 in. (259 cm)

  • Tower Height: 6 ft. 8 in. (203 cm)

  • Working Height: 24 in. (61 cm)

  • Weight: 7,100 lbs. (3,220 kg)

  • Power Required – Hydraulics: 100 psi air (6.89 bar)

  • Pulling Power Hydraulics: 10 ton (9 metric ton) per tower

  • Pulling Radius: 360 degrees

CHEETAH 22' 3 Tower Frame Machine Special Features

  • 22-foot extra-long bed accommodates large vehicles

  • Three hydraulic towers deliver 10 tons of pulling force each

  • 360° pulling capability ensures precision at every angle

  • Wide treadway for smooth vehicle loading and stability

  • Air-powered hydraulics improve workflow efficiency

  • Rugged all-steel construction for long-lasting durability

  • Built for professional, high-volume collision repair shops

90111233 CHEETAH 22 Manual

Coming Soon
