Star-A-Liner CHEETAH 22' II 2 Tower Frame Machine With Hydraulics

SKU 9011230
$26,335.00
  • Contact us now for our best price!
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

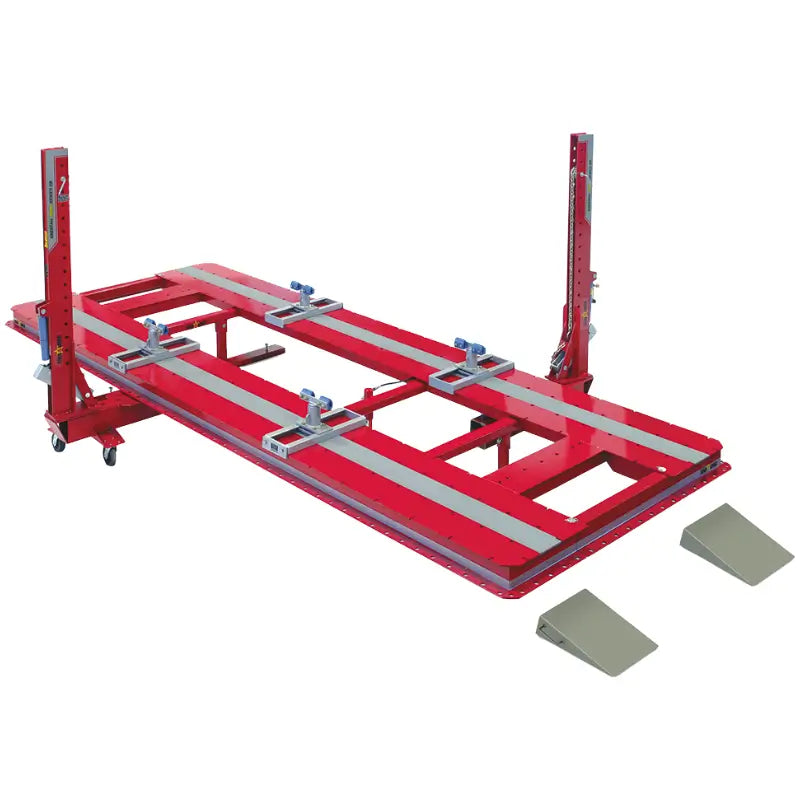

Cheetah 22' II 2 Tower Frame Machine with Hydraulics – Extra Length & Power for Auto Body Repair

The Star-A-Liner Cheetah 22' II 2 Tower Frame Machine with Hydraulics is built for shops that need maximum pulling power and extended capacity. With its extra-long 22-foot bed, this heavy-duty rack accommodates oversized vehicles such as SUVs, extended cab trucks, and full-size vans. Its three hydraulic towers each deliver up to 10 tons of pulling force with full 360° rotation, giving technicians precise control and the strength needed to handle even the toughest collision repairs.

This frame machine is designed with productivity in mind. The wide treadway and easy loading system ensure smooth vehicle positioning, while the long bed allows for better working space on large-scale jobs. The combination of power, stability, and reach makes the Cheetah 22' II an excellent choice for collision centers and repair shops looking to expand their repair capabilities to serve a wider range of vehicles.

Engineered for durability and professional use, the Star-A-Liner 9011230 offers long-lasting performance with its rugged steel frame and reliable air-powered hydraulics. Whether straightening severe frame damage or performing light corrective pulls, this machine gives body shops the efficiency and confidence to handle high-volume work with ease.

2 Tower Frame Machine CHEETAH 22 Specification

  • Part ID: 9011230 Cheetah 22’ II W/HYD

  • Length of Bed (Top): 22 ft. (671 cm)

  • Length with Towers Extended: 27 ft. 10 in. (848 cm)

  • Width of Bed: 92 in. (234 cm)

  • Width with Towers Extended: 14 ft. (427 cm)

  • Width of Treadway: 28 in. (71 cm)

  • Width Between Treadway: 36 in. (91 cm)

  • Overall Height: 8 ft. 6 in. (259 cm)

  • Tower Height: 6 ft. 8 in. (203 cm)

  • Working Height: 24 in. (61 cm)

  • Weight: 7,100 lbs. (3,220 kg)

  • Power Required – Hydraulics: 100 psi air (6.89 bar)

  • Pulling Power Hydraulics: 10 ton (9 metric ton) per tower

  • Pulling Radius: 360 degrees

CHEETAH 22' 2 Tower Frame Machine Special Features

  • 22-foot extra-long bed accommodates large vehicles with ease

  • Heavy-duty three tower hydraulic design for versatile pulling angles

  • 360° pulling capability for precision from any position

  • 10-ton pulling force per tower for severe collision damage repairs

  • Wide treadway for easy vehicle loading and stability

  • Air-powered hydraulics streamline shop workflow

  • Rugged, all-steel construction for long-lasting durability

  • Designed for high-volume, professional auto body shops

CHEETAH 22 Manual

Coming Soon
