Star A Liner CHEETAH 22' II with Hydraulic Clamp and Chain Auto Body Package

SKU 9011232
$33,562.00
  • Contact us now for our best price!
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

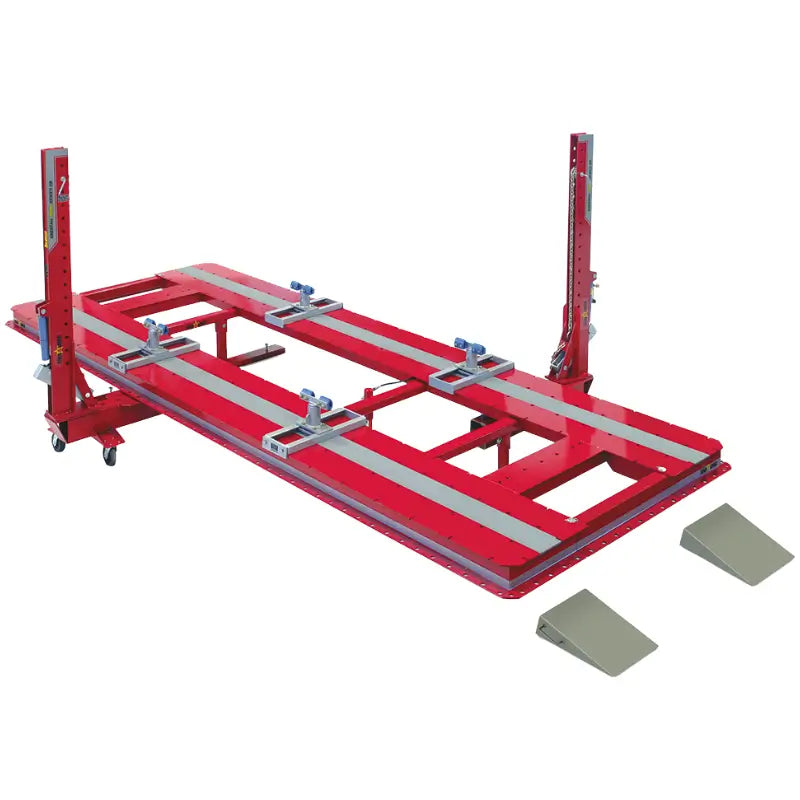

Star-A-Liner Cheetah 22' II with Hydraulic Clamp & Chain Auto Body Package – Complete Collision Repair System

The Star-A-Liner Cheetah 22' II with Hydraulic Clamp and Chain Auto Body Package is a complete collision repair solution designed for professional body shops handling heavy-duty frame and structural repairs. Built on the proven Cheetah 22' II platform, this package includes everything technicians need to maximize productivity: a long 22-foot bed for large vehicles, three hydraulic pulling towers with 10 tons of pulling force each, and a hydraulic clamp and chain package for secure anchoring and efficient straightening.

With its extra length and heavy-duty clamping system, this machine accommodates oversized SUVs, extended trucks, vans, and specialty vehicles. The chain and clamp package ensures vehicles remain firmly in place during the repair process, providing accuracy and safety with every pull. Combined with the Cheetah’s 360° pulling radius, technicians can approach frame damage from any angle for precise and effective results.

Built for durability, the Star-A-Liner 9011232 combines rugged all-steel construction with reliable air-powered hydraulics. Whether your shop is focused on high-volume insurance work or tackling severe collision damage, this complete package provides the strength, stability, and accessories to keep your workflow efficient and profitable.

Auto Body Package 9011232 CHEETAH 22 Specification

  • Part ID: 9011232 Cheetah 22’ II W/HYD Clamp & Chain Package

  • Length of Bed (Top): 22 ft. (671 cm)

  • Length with Towers Extended: 27 ft. 10 in. (848 cm)

  • Width of Bed: 92 in. (234 cm)

  • Width with Towers Extended: 14 ft. (427 cm)

  • Width of Treadway: 28 in. (71 cm)

  • Width Between Treadway: 36 in. (91 cm)

  • Overall Height: 8 ft. 6 in. (259 cm)

  • Tower Height: 6 ft. 8 in. (203 cm)

  • Working Height: 24 in. (61 cm)

  • Weight: 7,300 lbs. (3,311 kg)

  • Power Required – Hydraulics: 100 psi air (6.89 bar)

  • Pulling Power Hydraulics: 10 ton (9 metric ton) per tower

  • Pulling Radius: 360 degrees

CHEETAH 22 Auto Body Repair Special Features

  • Complete auto body package with hydraulic clamps and chains for secure anchoring

  • 22-foot bed handles extended vehicles, SUVs, vans, and trucks

  • Three 10-ton pulling towers for powerful and versatile frame straightening

  • 360° pulling capability allows precision from any angle

  • Hydraulic clamping system ensures vehicles stay firmly in position

  • Heavy-duty construction for long-term reliability

  • Air-powered hydraulics for smooth and consistent operation

  • Ideal for high-volume body shops and advanced collision repair centers

9011232 CHEETAH 22 Manual

Coming Soon
