Star A Liner HD-27 Heavy Duty Truck Rack

SKU 9012398
$130,145.00
  • Contact us now for our best price!
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

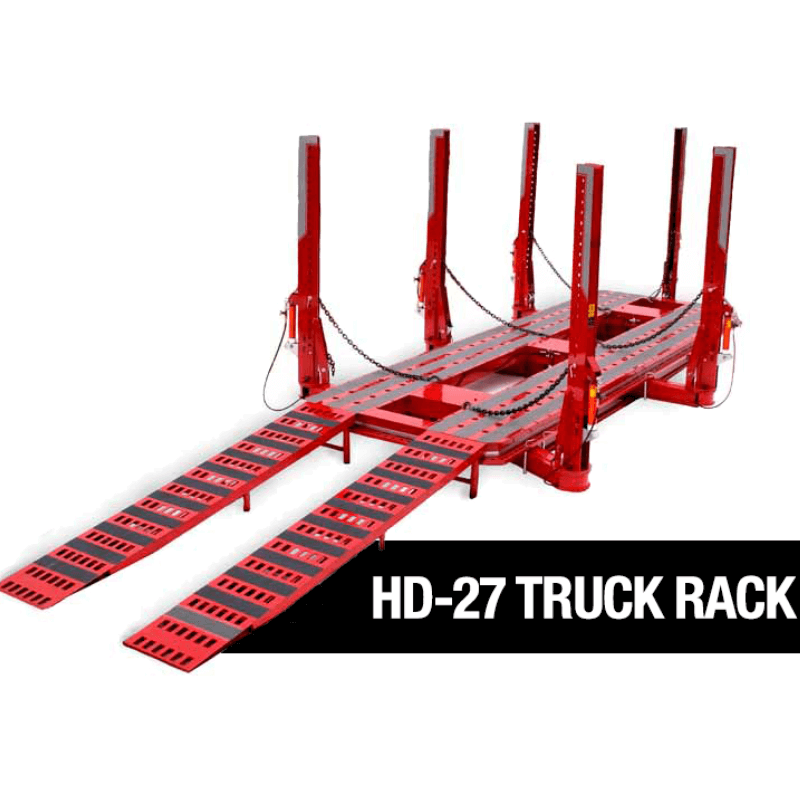

HD-27 Heavy Duty Truck Rack – 27' Frame Machine for Large Vehicle Collision Repair

The Star A Liner HD-27 Heavy Duty Truck Rack is engineered for the toughest collision repair jobs on commercial trucks, buses, and oversized vehicles. With a massive 27-foot bed and six powerful towers, this rack provides unmatched pulling power and stability, ensuring precise structural alignment and efficient repairs.

Built with heavy-duty steel construction, the HD-27 is designed to withstand the demands of high-volume shops that service fleets and large vehicles. Its 25-ton hydraulic pulling capacity, 360° pulling radius, and extended 33-foot working length with towers make it capable of handling even the most severe collision damage with accuracy.

The 9012398 HD-27 not only delivers power but also improves workflow efficiency. Its secure anchoring system, wide treadways, and ergonomic working height of 26 inches allow technicians to work safely and comfortably. This heavy-duty truck rack is the ultimate solution for shops that demand maximum performance and durability.

Truck Rack 9012398 HD-27 Specification

  • Part ID: 9012398

  • Length of Bed (Top): 27 ft. (823 cm)

  • Number of Towers: 6

  • Length with Towers Extended: 33 ft. 6.25 in. (1,022 cm)

  • Width of Bed: 102 in. (259 cm)

  • Width with Towers Extended: 201.5 in. (512 cm)

  • Width of Treadway: 36 in. (91 cm)

  • Overall Height: 11 ft. 8.5 in. (357 cm)

  • Tower Height: 10 ft. (305 cm)

  • Working Height: 26 in. (66 cm)

  • Power Required for Hydraulics: 110V, 15 amp

  • Pulling Power (Hydraulics): 25 ton (23 metric ton)

  • Pulling Chain Diameter: 0.625 in. (16 mm)

  • Pulling Radius: 360 degrees

HD-27 Heavy Duty Foot Truck Rack Special Features

  • Massive 27-foot bed for servicing heavy-duty trucks and oversized vehicles

  • Six hydraulic towers with 360° pulling radius for maximum repair flexibility

  • 25-ton pulling capacity handles even the toughest collision damage

  • Extended 33-foot length with towers accommodates the largest commercial vehicles

  • Wide treadways and secure anchoring system for stability and technician safety

  • Ergonomic 26-inch working height for improved workflow efficiency

  • Heavy-duty construction built to withstand long-term commercial use

  • Reliable hydraulic system powered by standard 110V 15 amp connection

9012398 Manual
