Star A Liner HD-60 Heavy Duty Truck Rack - 14 Columns
- ✓ Contact us now for our best price!
- ✓ No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
- ✓ Free Warehouse Pickup Options
- ✓ Better Business Bureau (BBB) Accredited

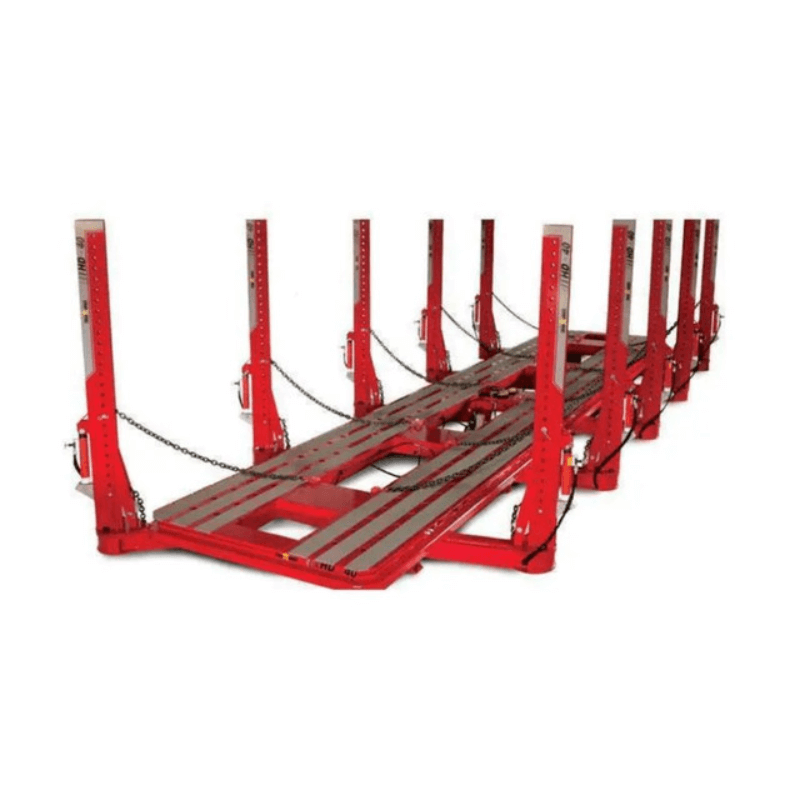

The Star A Liner 9012600 HD-60 Heavy Duty Truck Rack is the largest and most powerful frame rack in the Star A Liner lineup, built for commercial truck and bus collision repair. With a massive 60-foot bed and 14 pulling towers, the HD-60 is engineered to handle even the longest and heaviest vehicles with unmatched efficiency.
Designed for maximum performance in fleet, heavy-duty, and specialty repair shops, this rack provides 25 tons of pulling power per tower with a full 360-degree pulling radius, allowing technicians to tackle the most challenging frame straightening jobs from every angle. The extended working area ensures compatibility with oversized vehicles, while the hydraulic system delivers precise, powerful, and reliable operation.
If your shop needs the capacity to repair extra-long trucks, buses, and specialized heavy-duty vehicles, the HD-60 delivers strength, versatility, and dependability at the highest level.
Part ID: 9012600
Length of Bed (Top): 60 ft. (1,829 cm)
Number of Towers: 14 (Image for Reference Only)
Length with Towers Extended: 66 ft. 6.25 in. (2,028 cm)
Width of Bed: 102 in. (259 cm)
Width with Towers Extended: 201.5 in. (512 cm)
Width of Treadway: 36 in. (91 cm)
Overall Height: 11 ft. 8.50 in. (357 cm)
Tower Height: 10 ft. (305 cm)
Working Height: 26 in. (305 cm)
Power Required for Hydraulics: 110V 15 amp
Pulling Power, Hydraulics: 25 ton (23 metric ton)
Pulling Chain Diameter: .625 in. (16 mm)
Pulling Radius: 360 degrees
Largest Star A Liner rack with a 60 ft bed for oversized vehicles
Equipped with 14 pulling towers for complete repair flexibility
Delivers 25 tons of hydraulic pulling power per tower
360° pulling radius for unrestricted pulling angles
Heavy-duty design for trucks, buses, and specialized commercial vehicles
Compatible with fleet services and high-volume repair shops
Powered by 110V 15 amp hydraulics for reliable performance
