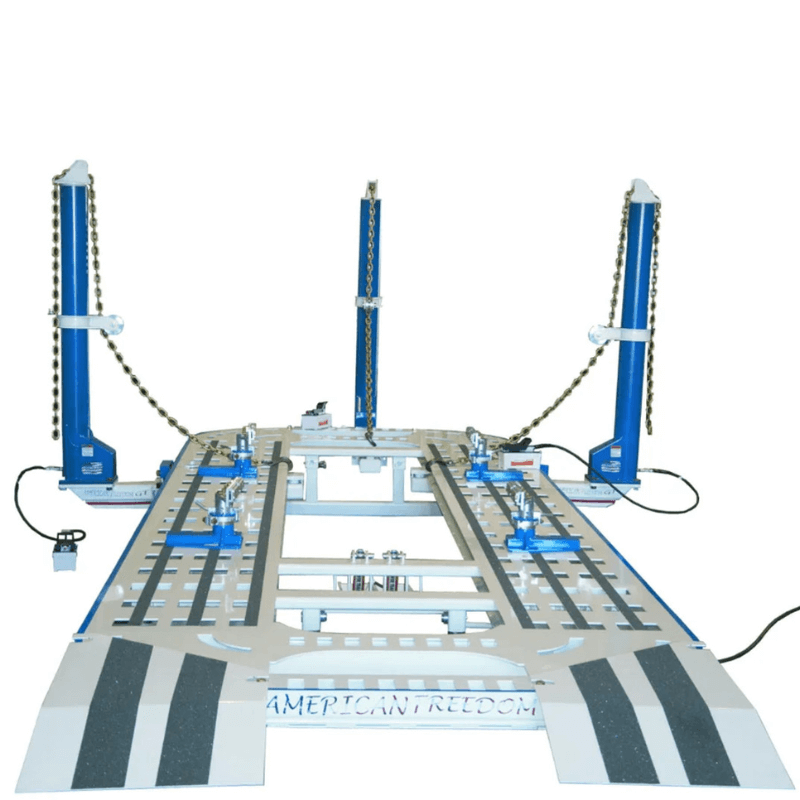

AF 9014223T 22 Heavy-Duty Auto Body Repair Rack by Star A Liner Front View

Signature American Freedom 22' Heavy-Duty Auto Body Repair Rack

SKU 9014223T
Signature
$55,520.00
  • ✓ Contact us now for our best price!
  • ✓ No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • ✓ Free Warehouse Pickup Options
  • ✓ Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

Signature American Freedom GT-Tilt 22 Ft. Frame Machine

The Signature American Freedom GT-Tilt 22 Ft. Frame Machine delivers exceptional strength, versatility, and efficiency for professional collision repair shops. Designed and built in the USA, this 2-tower model offers a familiar frame rack style that technicians trust, combined with advanced engineering for today’s demanding auto body work.

Its tilt-bed design provides easy vehicle loading and positioning, while the 22 ft. treadway and 92-inch bed width accommodate everything from compact sedans to full-size pickup trucks. The dual-ram lift boasts a 12,000 lb. capacity, ensuring stability and control even with heavier vehicles. The movable towers allow for precision pulling from multiple angles, while the 10-ton hydraulic system delivers the muscle needed for tough structural realignments.

With optional configurations available in 2, 3, or 4 towers, the Freedom GT-Tilt adapts perfectly to your shop’s workflow. Combined with its rugged construction, straightforward operation, and Made-in-America durability, this frame machine is built to perform day after day—making it a smart investment for any high-output collision repair business.

Auto Body Repair AF 9014223T Specification

  • Part ID: 9014223T

  • Bed Length (top): 22 ft.

  • Length with Towers Extended: 26 ft. 11 in.

  • Bed Width: 92 in.

  • Width with Towers Extended: 12 ft. 6 in.

  • Treadway Width: 28.5 in.

  • Width Between Treadways: 35.5 in.

  • Overall Height: 9 ft. 4 in.

  • Working Height: 21 in.

  • Hydraulics: 10 ton

  • Power Requirement: Air, 100 psi

  • Optional Tower Configurations: 2, 3, or 4 towers

  • Lift Capacity: 12,000 lbs. (dual-ram lift)

AF Frame Rack Body Repair Machine Special Features

  • Proudly Made in the USA

  • 2-tower tilt-bed frame machine design

  • 22 ft. treadway for a wide range of vehicles

  • 92-inch bed width for maximum versatility

  • Heavy-duty 12,000 lb. dual-ram lift capacity

  • 10-ton pulling power for challenging repairs

  • Adjustable pulling angles with movable towers

  • Air-powered hydraulic system (100 psi)

  • Available in 2, 3, or 4 tower configurations

  • Warranty: 2 Years (Machine & Hydraulics)

AF 9014223T Manual

Coming Soon
