Star-A-Liner Cheetah 18' Two Tower Frame Machine With Hydraulics

SKU 9011180
$20,178.00
  • Contact us now for our best price!
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

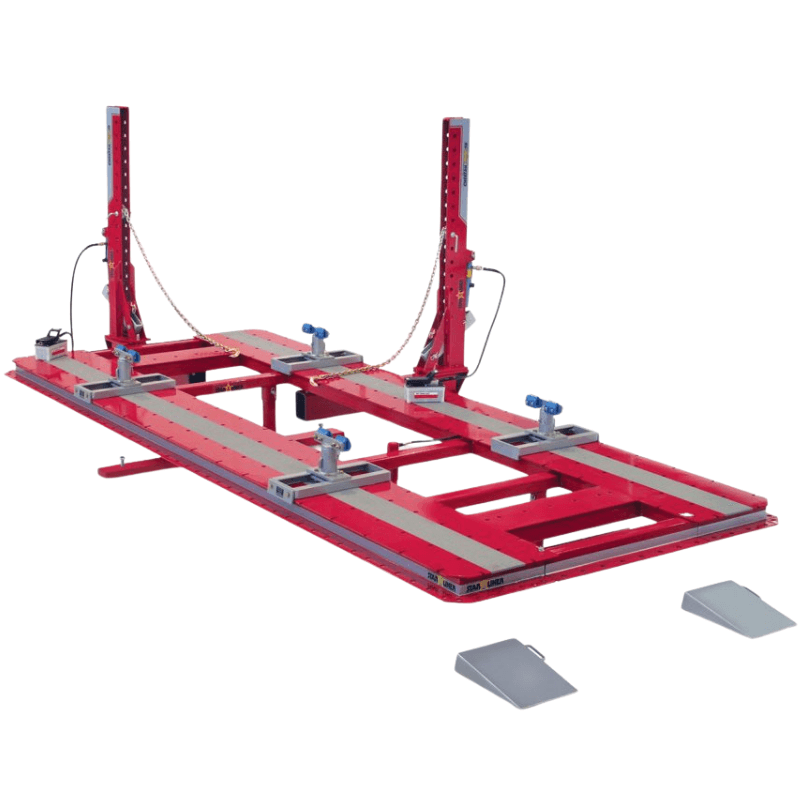

Star-A-Liner Cheetah 18' Two Tower Frame Machine with Hydraulics – Heavy-Duty Collision Repair Rack

The Star-A-Liner Cheetah 18' Two Tower Frame Machine with Hydraulics is a powerful collision repair system designed to handle unibody cars, full-size trucks, and heavy-duty vehicles. Built with an 18-foot bed and dual hydraulic towers, it delivers 10 tons of pulling power with a full 360-degree pulling radius, giving technicians complete flexibility for even the toughest repairs.

Engineered for reliability and performance, this frame rack provides a strong 4,400 lb. platform with an ideal 24-inch working height. Its towers extend the rack length to nearly 24 feet, offering superior reach and versatility for various vehicle types. The included hydraulic pump and hose assemblies, pinch weld anchor bases, loading ramps, and pulling chains ensure that repair shops have everything they need to get to work right away.

With its robust construction, precision pulling system, and user-friendly setup, the Cheetah 18' Two Tower Frame Machine is a must-have for professional auto body shops. It reduces repair time, boosts productivity, and provides the power and accuracy required to restore vehicles to factory specifications.

2 Tower Frame Machine 9011180 CHEETAH 18 Specification

  • Part ID: 9011180 Cheetah 18’ II W/HYD Two Tower

  • Length of Bed (Top): 18 ft. (549 cm)

  • Length with Towers Extended: 23 ft. 9 in. (724 cm)

  • Width of Bed: 84 in. (213 cm)

  • Width with Towers Extended: 13 ft. 4 in. (406 cm)

  • Width of Treadway: 24 in. (61 cm)

  • Width Between Treadway: 36 in. (91 cm)

  • Overall Height: 7 ft. 9 in. (236 cm)

  • Tower Height: 6 ft. (183 cm)

  • Working Height: 24 in. (61 cm)

  • Weight: 4,400 lbs. (1,995 kg)

  • Power Required – Hydraulics: 100 psi air (6.89 bar)

  • Pulling Power Hydraulics: 10 ton (9 metric ton)

  • Pulling Radius: 360 degrees

  • Standard Equipment Included

    • 1 pump and hose assembly for each tower

    • 4 pinch weld anchor bases with T-tops and jaws

    • 2 loading ramps for easy vehicle setup

    • 1 Grade 100 pulling chain with slip hook per tower

Cheetah 18' Two Tower Frame Machine Special Features

  • Heavy-duty 18-foot two-tower frame machine for collision repair

  • 10-ton hydraulic pulling system with 360-degree pulling radius

  • Dual hydraulic towers extend length to nearly 24 ft.

  • Strong 4,400 lb. construction for stability and durability

  • Includes pumps, hoses, anchor bases, ramps, and pulling chains

  • 24-inch working height improves technician accessibility

  • Suitable for unibody cars, full-size trucks, and heavy-duty vehicles

  • Built for shop efficiency and precise factory-quality repairs

9011180 Cheetah 18 Manual

Coming Soon
