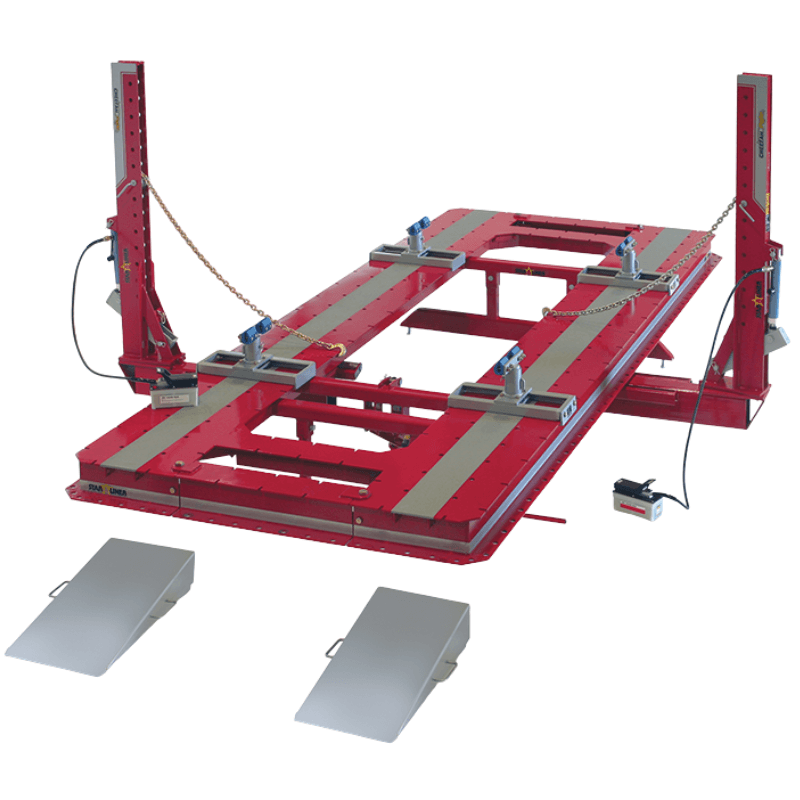

CHEETAH SF 20 Frame Rack – 20 Ft. Auto Body Repair Machine by Star A Liner Front View

Star A Liner CHEETAH SF 20 Frame Rack – 20 Ft. Auto Body Repair Machine

SKU 9011200
by Star A Liner
$23,374.00
  • ✓ Contact us now for our best price!
  • ✓ No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • ✓ Free Warehouse Pickup Options
  • ✓ Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

CHEETAH SF 20 Frame Rack – Extended-Bed Frame Straightening for Cars, Trucks & SUVs

When you need maximum space, unmatched pulling power, and professional-grade precision, the CHEETAH SF 20 Frame Rack delivers on every front. Built with a massive 20-foot bed, this powerhouse is designed for high-capacity collision repair shops that regularly work on everything from unibody cars to extended cab trucks. With a 360-degree pulling radius and a 10-ton hydraulic pulling system, it gives technicians the flexibility and control to restore vehicle frames to exact specifications—fast, accurate, and efficient every time.

The SF 20’s offset tower base design allows pulling towers to move closer together for tighter, more precise pulls, making it a versatile tool for both light-duty and heavy-duty repair jobs. Its extra-wide 92-inch bed and spacious treadway design provide superior accessibility, so you can handle large vehicles and complex repairs with ease.

Engineered from rugged, high-strength steel and optimized for technician comfort with a 26-inch working height, the CHEETAH SF 20 is built to thrive in high-volume shop environments. Whether you’re repairing structural damage from a major collision or performing routine frame adjustments, this rack is the ultimate workhorse for serious auto body professionals.

Auto Body Repair CHEETAH SF 20 Specification

  • Part ID: 9011002 (SF 20’ II with HYD)

  • Bed Length (top): 20 ft.

  • Length with Towers Extended: 25 ft. 10 in.

  • Bed Width: 92 in.

  • Width with Towers Extended: 13 ft. 4 in.

  • Treadway Width: 28 in.

  • Width Between Treadways: 36 in.

  • Overall Height: 7 ft. 11 in.

  • Tower Height: 6 ft.

  • Working Height: 26 in.

  • Weight: 5,500 lbs.

  • Hydraulic Power Requirement: 100 psi air

  • Pulling Power (Hydraulics): 10 ton

  • Pulling Radius: 360°

CHEETAH SF 20 Frame Rack Body Repair Machine Special Features

  • Extended 20 ft. bed for oversized vehicles

  • 360° pulling radius for complete repair flexibility

  • 10-ton hydraulic pulling power for tough jobs

  • Offset tower bases for closer, more precise pulls

  • Extra-wide 92 in. bed for superior accessibility

  • Rugged steel construction for long-term durability

  • 26 in. working height for technician comfort

  • Ideal for high-volume collision repair facilities

CHEETAH SF 20 Manual

Coming Soon
