Star A Liner HD-40 Heavy Duty Truck Rack

SKU 9012400
$181,140.00
  • Contact us now for our best price!
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

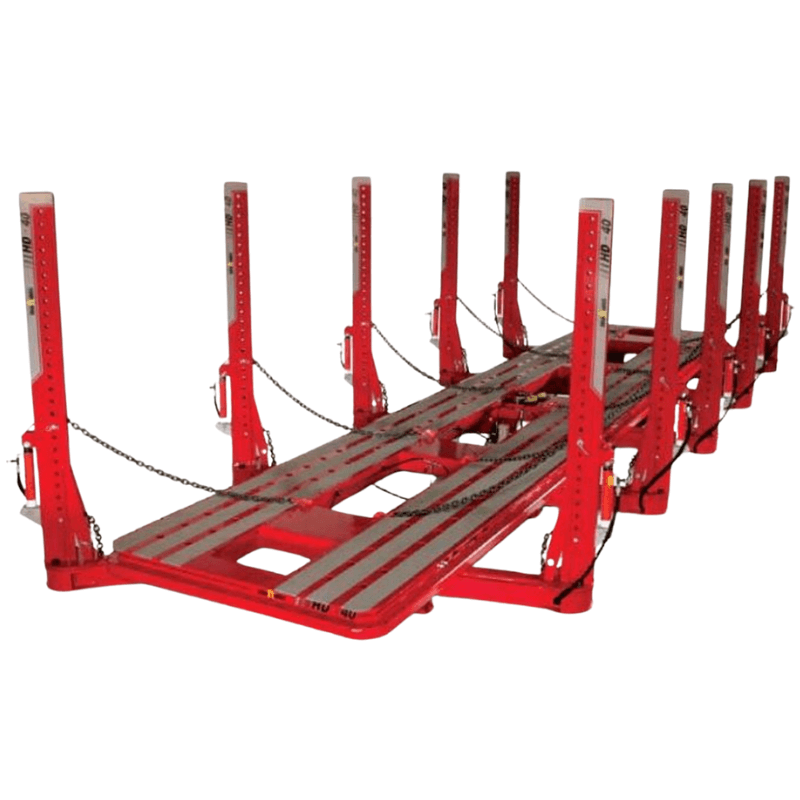

HD-40 – Extreme-Capacity Frame Straightening for Heavy Trucks, Buses & Commercial Vehicles

When your shop handles the biggest and toughest collision repair jobs, you need a frame rack built for extreme capacity and the STAR-A-LINER HD-40 delivers exactly that. With an impressive 40-foot working bed and 10 pulling towers, this beast is engineered for full-size trucks, buses, and large commercial vehicles. Its 360-degree pulling radius ensures you can apply force from any angle, while the massive 25-ton hydraulic pulling system gives you the raw power to take on even the most demanding structural repairs.

The HD-40 isn’t just big it’s smart. The layout of its 10 towers provides complete accessibility, so technicians can perform complex pulls with precision and speed. Its extra-wide 102-inch bed and expansive treadway space make it easy to secure and maneuver large vehicles, ensuring a stable, safe, and efficient repair process.

Built from heavy-duty, industrial-grade steel and equipped with a 110V 15 amp hydraulic power system, the STAR-A-LINER HD-40 is made to keep up with the constant demands of high-volume heavy vehicle repair. Whether it’s a damaged semi-truck, a bent bus frame, or specialized commercial equipment, this rack gives you the reach, the strength, and the reliability to get the job done right the first time.

Auto Body Repair HD-40 Specification

  • Part ID: 9012400

  • Bed Length (top): 40 ft.

  • Number of Towers: 10

  • Length with Towers Extended: 46 ft. 6.25 in.

  • Bed Width: 102 in.

  • Width with Towers Extended: 201.5 in.

  • Treadway Width: 36 in.

  • Overall Height: 11 ft. 8.50 in.

  • Tower Height: 10 ft.

  • Working Height: 26 in.

  • Hydraulic Power Requirement: 110V 15 amp

  • Pulling Power (Hydraulics): 25 ton

  • Pulling Chain Diameter: 0.625 in.

  • Pulling Radius: 360°

HD-40 Frame Rack Body Repair Machine Special Features

  • Massive 40 ft. bed for the largest repair jobs

  • 10 pulling towers for total frame access

  • 360° pulling radius for complete flexibility

  • Heavy-duty 25-ton hydraulic pulling system

  • Extra-wide 102 in. bed for oversized vehicles

  • Built for buses, trucks, and commercial equipment

  • Rugged industrial-grade steel construction

  • Ideal for heavy vehicle collision repair facilities

HD-40 Manual

Coming Soon
