Signature American Freedom 20" Tilt 3 Tower Frame Machine

SKU AF 9014203T
$36,296.00
  • Contact us now for our best price!
  • No Sales Tax - Except CA, FL, GA, IL, IN, MI, OH, & PA
  • Free Warehouse Pickup Options
  • Better Business Bureau (BBB) Accredited

Delivery Options

Notify me when back in stock

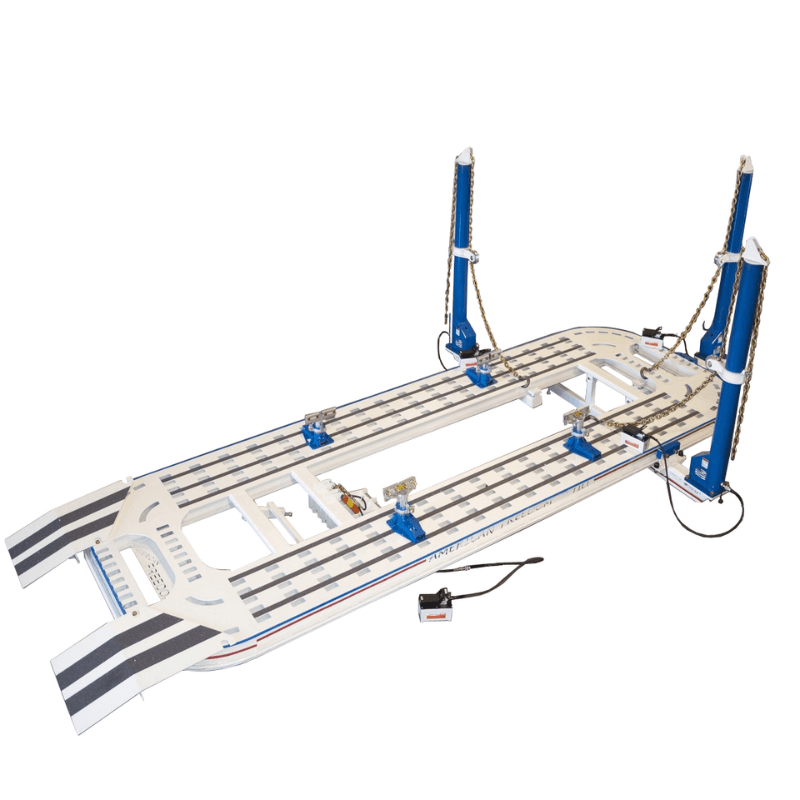

Signature AF 9014203T – 20' Freedom Tilt 3 Tower Frame Machine

The Signature AF 9014203T 20' Freedom Tilt 3 Tower Frame Machine is engineered for precision, durability, and efficiency in automotive collision repair. Built with a familiar layout that technicians can operate with ease, this professional-grade frame machine allows for fast training and seamless workflow integration. Its tilt design makes loading and unloading vehicles more efficient while providing full access for comprehensive frame repairs.

Equipped with three powerful towers and 10-ton hydraulic pulling capacity, the American Freedom Tilt system can handle a wide range of vehicle sizes—from standard sedans to full-size trucks. The generous 88-inch bed width and 20-foot treadway length provide optimal working space, while the low 21-inch working height ensures ergonomic operation. Whether for a busy collision shop or a specialty repair facility, this frame machine is built to maximize productivity and minimize downtime.

The AF 9014203T also offers versatility in setup with optional 2, 3, or 4 tower configurations, making it adaptable to your repair shop’s needs. With a lift capacity of 9,000 lbs (upgradeable to 12,000 lbs with a dual ram), you can take on heavier jobs with confidence. Its combination of strength, size, and accessibility makes it an ideal choice for high-volume, high-quality automotive frame repair operations.

3 Tower Frame Machine AF 9014203T Specification

  • Bed Length: 20 ft. (610 cm)

  • Length with Towers Extended: 24 ft. 6 in. (750 cm)

  • Bed Width: 88 in. (224 cm)

  • Width with Towers Extended: 11 ft. 4 in. (348 cm)

  • Treadway Width: 26.25 in. (67 cm)

  • Space Between Treadways: 35.50 in. (98 cm)

  • Overall Height: 9 ft. 4 in. (289 cm)

  • Working Height: 21 in. (54 cm)

  • Hydraulic Capacity: 10 ton

  • Power Requirement: Air – 100 psi

  • Tower Configurations: 2, 3, or 4 towers

  • Lift Capacity: 9,000 lbs (12,000 lbs with dual ram upgrade)

AF 20" Tilt 3 Tower Frame Machine Special Features

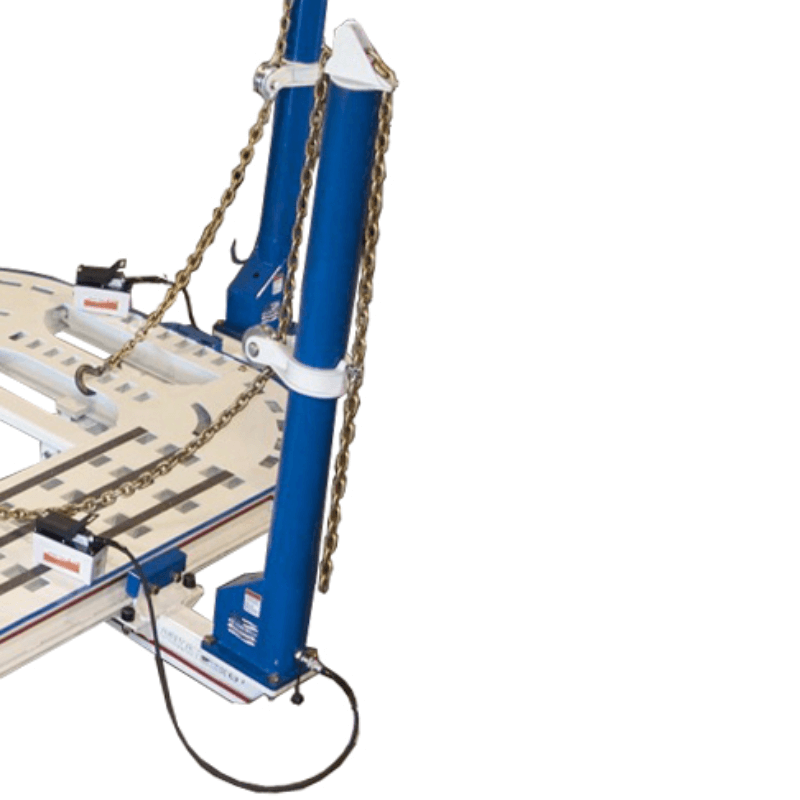

  • Heavy-duty 3 tower tilt design for versatile repair applications

  • Wide 88-inch bed fits a variety of vehicle widths

  • Low-profile working height for ergonomic technician access

  • Powerful 10-ton hydraulics for precise frame adjustments

  • Optional dual ram upgrade for increased lifting capacity

  • Adjustable tower configurations for custom shop setups

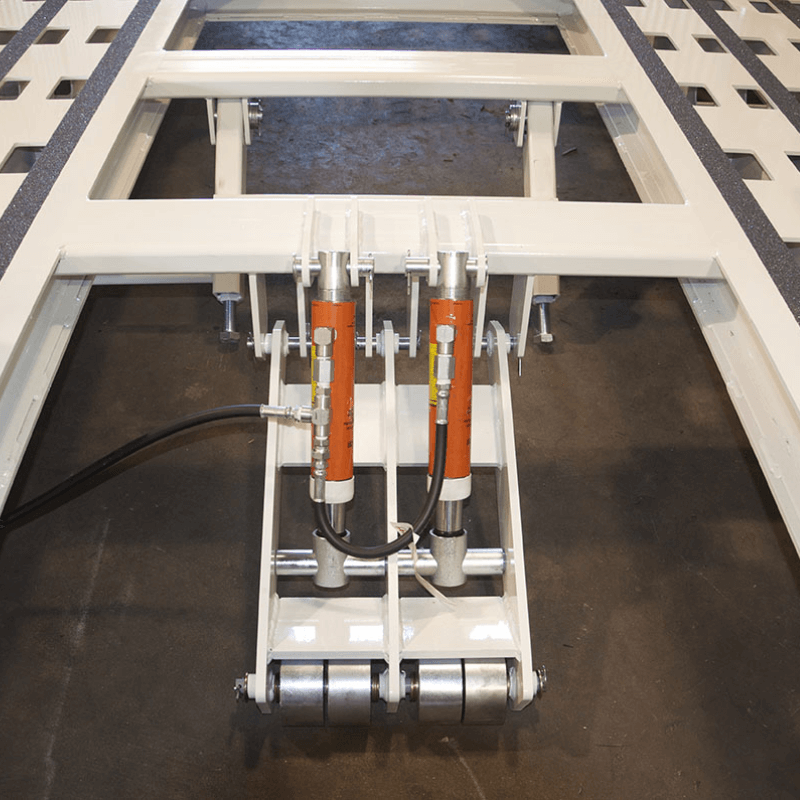

  • Easy vehicle loading with tilt functionality

  • Designed for efficiency and durability in professional collision repair environments
